2U 19'' 14 Slots Fiber Optic Converter Metal Rack For 100M 1000M

Ask Lasest Price
Brand Name :	OPTFOCUS
Model Number :	OFS-RACK-1422-C
Price :	31 usd per unit
Payment Terms :	T/T, Western Union
Supply Ability :	1000 pcs per month
Delivery Time :	7 days after payment confirmed

Add to Cart

Product Details
Company Profile

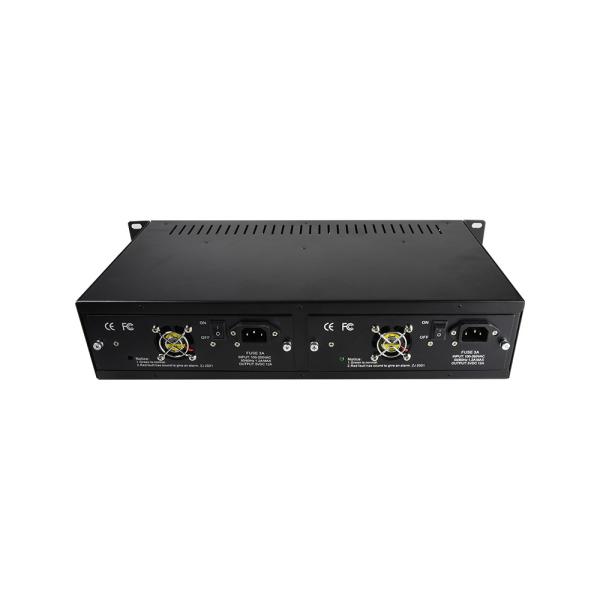

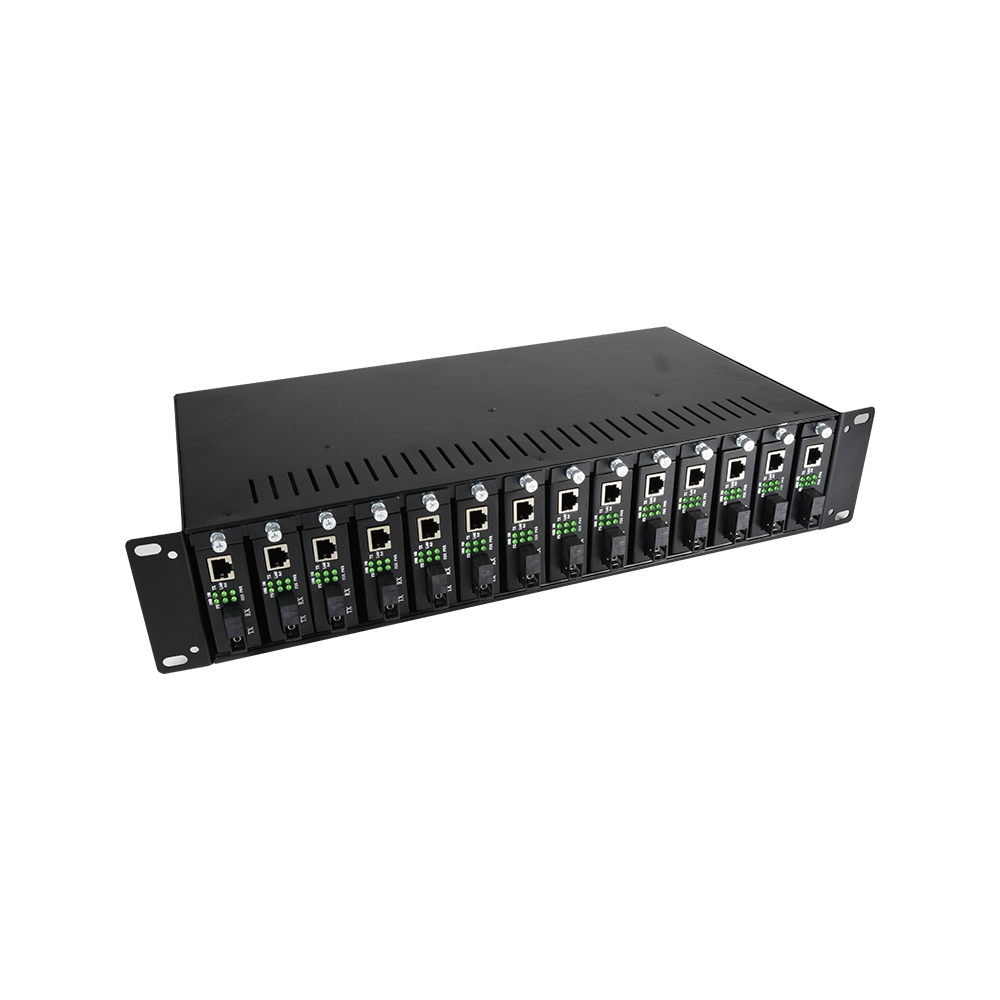

2U 19'' 14 Slots Fiber Optic Converter Metal Rack For 100M 1000M

Media converter Rack 14 slots fiber optic converter rack 2U 19'' metal rack for 100M 1000M media converter

OFS-RACK-14 14 Slots Media Converters Rack

It is acceptable for the most 14 sets of 10M, 10/100M,10/1001000M,Media Converters within a rack-mountable chassis which is supplied with unified power. Installing at the center of network, the Rack not only reduce the links, simplify the structure, but also ease for management and maintenance.

Main features

◆The power of the Rack can be supplied by the type of single power or dual power. Adopting dual

power supply, the load of each power can be reduced and the life of the power would extend. When

one power supply is at fault, the other one can still work independently. It would enhance the

reliability of the RACK.

◆Supplying the Converters or Powers to be plugged and played.

◆It is possessed of stable performance, large capacity of power supply, and ease for management and

maintenance

◆2U high: 19-inch standard design

Technical Specifications

◆Capacity : 14 slots available

◆Power: Input: AC 100 ～ 260V, 50～60HZ

Output: DC +5V 12A

◆Power protection: protection from over voltage, over current and short circuit

◆Working temperature:0～50℃Address: 6F-B entrance,Block A,JiaJiZhou building,71 of BaoAn District ShenZhen, China.

TEL:+86-755-26511956 FAX:+86-755-26511958

Http://www.optfocus.com

Email: Info@optfocus.com

◆Storage temperature:-20℃～70℃

◆Relative Humidity:5%～95%

◆Dimensions: 485 (wide) × 245 (length) × 90 (high) mm

Modle Media Converter for 14 slot rack Optical Technical Information

Model	Fiber	rate	Wavelength	distance	TX Power	Sensitivity	Link Budget
OFS-DM	multimode	10/100M	850 /1310nm	2km	-20 ～ -12dBm	-30dBm	10dB m
OFS -DS20	singlemode	10/100M	1310nm	20km	-15～ -8dBm	-32dBm	17dB m
OFS -DS40	singlemode	10/100M	1310nm	40km	-8～ -3dBm	-35dBm	27dB m
OFS -GM	multimode	10/100/1000 M	850nm	224m/ 550m	-11～ -5dBm	-18dBm	7dBm
OFS -GS20	singlemode	10/100/1000 M	1310nm	20km	-9～ -3dBm	-22dBm	13dB m

Company Information

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’ experience in global sales and services.

Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.

OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.

Our high quality products and outstanding service will help you win more market and customers.

Advantage of our company :

①　National High-tech enterprise certification；

②　Fiber Optical Innovative &production team Over 10 years;

③　Fiber optical active and passive components production Workshop;

④　Strict quality management system;

⑤　Professional One stop supply & service;

⑥　OEM&ODM available;

⑦　Reliable and Timely customer services;
