fiber ethernet 10 100 1000M single fiber singlemode 20km fiber
optic media converter
Product Description :
OFS-GWS20A/B Series Fiber Media Converter is the conversion
equipment of Ethernet optical-electronic signals between
10/100/1000M UTP interface (TX) and 1000M Fiber interface (FX). The
traditional 10/100/1000M Fast Ethernet can be extended to the
distance of 120km through optical fiber link. The performance and
quality of the products are excellent because of adopting latest
IC. 6 Group LED indicated lights could fully monitor the working
conditions of Converters. It is easy for users to observe the
network operations.
The converters can be used as a stand-alone unit or as a slide-in
module to the Media Converter Chassis, RACK-14. As the other
OFS-Series media converters, they're hot swappable in MC-Chassis.
Main Features:
* 1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX,
1000Base-FX Standard
* Auto negotiation function allows UTP port to auto select 100M or
1000M and Full Duplex or Half Duplex
* Supporting 1552 bytes packet
* Extend fiber distance up to 2km for multi-mode fiber and 20-120km
for single-mode fiber
* Data Transfer Rate:
- TP: 10/100/1000Mbps
- FX: 1000Mbps
* Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
* LED indicators: Power,, FX Link/Act, TX 1000,100,TX FDX, TX
Link/Act
* Supports link fault pass through function.
* Design of internal or external power supply for selection by
end-users
* Internal circuit of prevented thunder could greatly reduce damage
of the converter caused by thunderbolt induction.

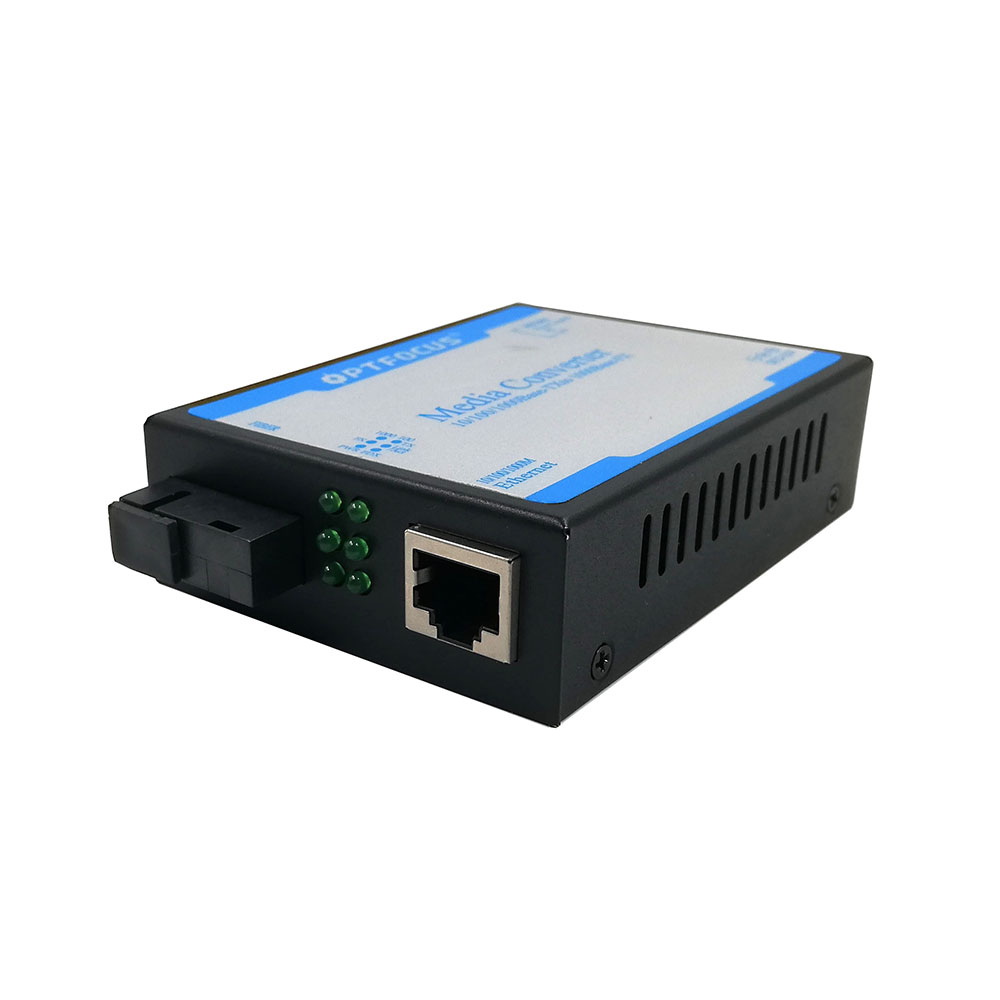

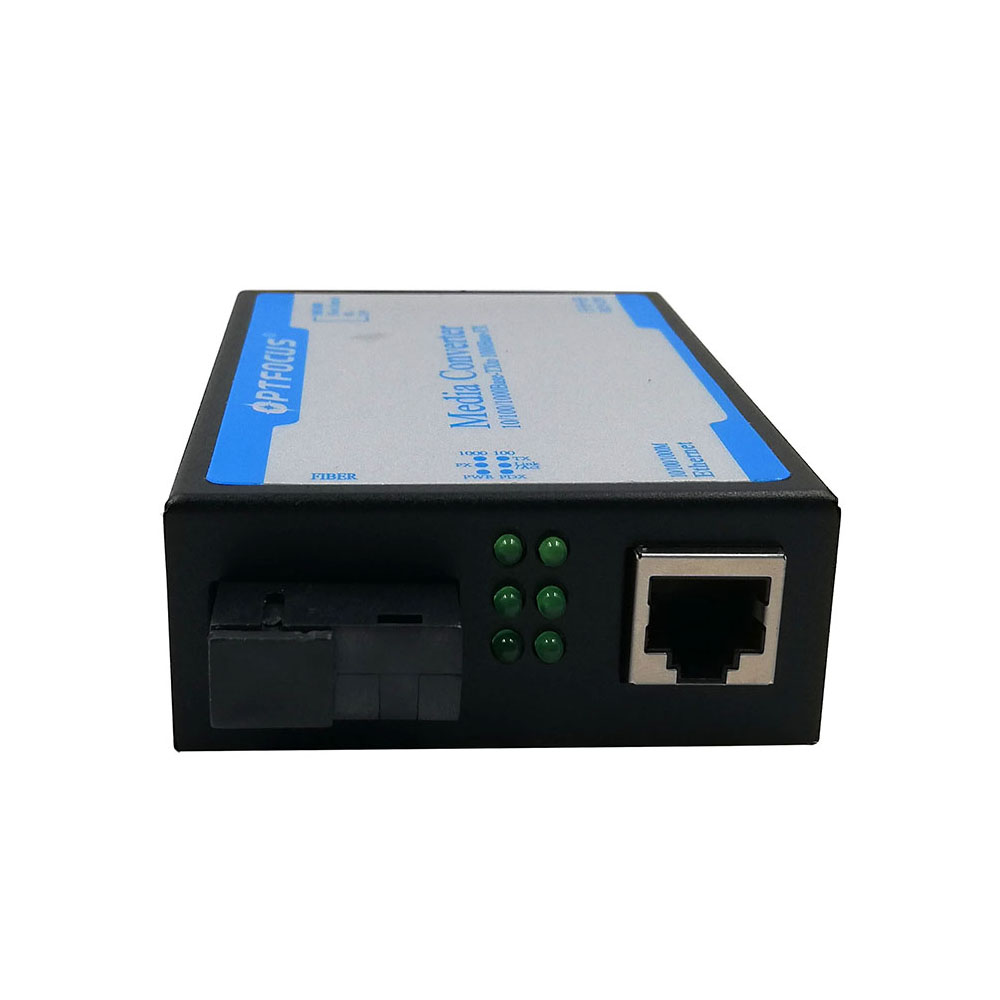

Detail Images:
Technical Data Sheet
| Product Name | 10/100/1000M Media Converter |
| Product Model | OFS-GWS20A/B |
| Connector | Dual Fiber: 1* 1000Mbps,SC/ST/FC Optional |
| RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km) |
| Forwarding Mode | Store-and-Forward |
| Forwarding Rate: | 1488000pps/port |
| Operating standard | EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
| Power | external | Input:AC 100~250VOutput:DC 5V 1A ,(default).
or Input:DC:-36V~-72V;Output:DC 5V 1A .(Optional) |
| | USB power supply(Optional). |
| Power consumption | 2.5W |
| LED | Power, Link/Act, TX 1000,TX 100,FDX, Link/Act. |
| Working Environment | Working temperature: 0~55ºC ;
Storage temperature: -20~75ºC
Relative Humidity: 5%~95 %( no condensation) |
Other Specification
| Packing List | 1* Media Converter
1*User Manual/Certificate of quality/Warranty card
1*power adapter |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L*W*H): 94.5*70*26mm
Packing size(L*W*H):215*138*56mm |
| Warranty | 1-years |
Related Products:
View of our Company:
Shenzhen Optfocus Technology Co.,Ltd was established in 2009,
OPTFOCUS is a High -tech enterprise, professional R & D, production
and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB)
& FTTx, Fiber access network equipment and terminal equipment &
cabling system products. It is committed to provide Customized OEM
& ODM services to Global communication distributors, Telecom
Operators and System Integrators.
FAQ:
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date
of shipment.
3. How could place the order?
Please contact our sales team close the deal.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server
for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported.
The network management type we produce can support this function.
