Modem router 1GE xpon dual mode gepon gpon ONU price
Looking for cheap price 1GE triple play service ONU router ? Try
our model !

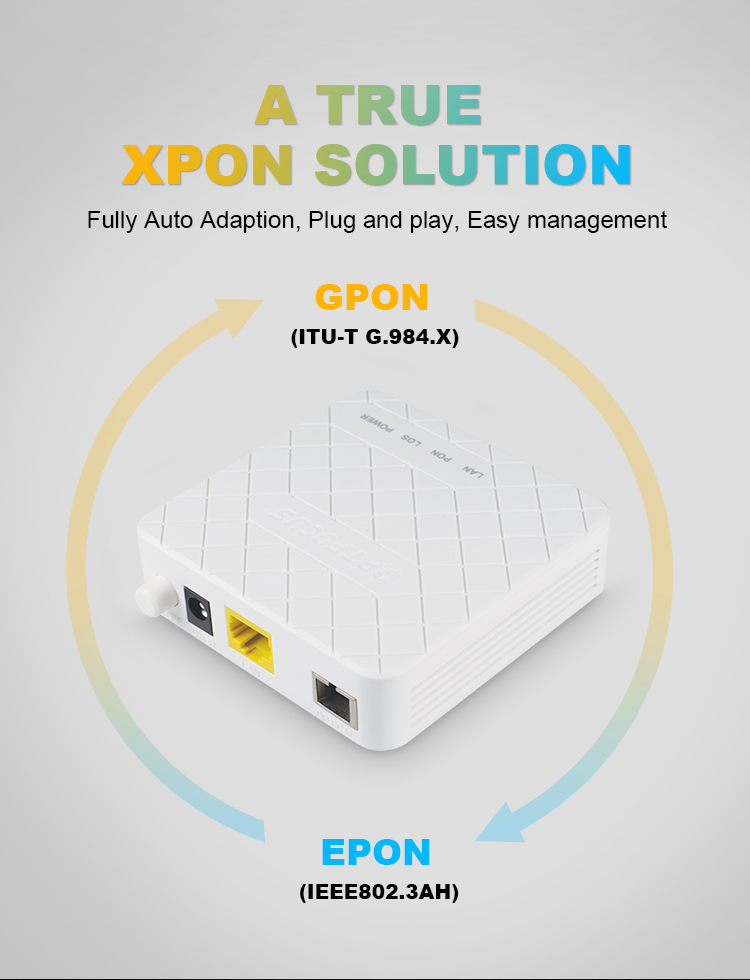

The OFSX711F XPON(GPON and EPON dual mode) ONU.It is fully compliant with GPON and EPON technical regulations such
as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON
or EPON.
It is based on mature GPON and EPON technology, and has high ratio
of performance to price, stable, cost-effective, high reliability,
easy management, configuration flexibility and good quality of
service (QoS) guarantees.
It is designed for meeting the triple-play service needs of fixed
network operators or cable operators, and widely used in FTTx,
video surveillance and other requirements.
Basic Characteristics
| Tech parameters | description |
Up-link interface | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate
and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU
authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.24Kg(mainframe) |
Festures
- Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
- Completely compatible with GPON international standard
IEEE802.3ah/802.3-2005
- Support China Telecom GPON CTC3.1 standard and expand OAM
- Support DBA reporting mechanism request
- Support OAM (Link, Test, Loop back)maintenance function defined
IEEE802.3ah
- Support the remote upgrade and download
- Support to save configured parameters if power down
- Support to configure the work mode at the user port
- Support MDI-MDIX automatic-detection at the user port.
- Support access authentication based on serial number
- Support access authentication based on MAC address
- Support 802.1Q VLAN
- Support rich QinQ VLAN functions and IGMP Snooping
- Support traffic rule to modify the related priority.
- Support to restore the factory settings
- Support the remote reset and reboot
- Support dying gasp outage alarm
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
About our Company
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009,
which is a High -tech manufacturer enterprise with 10 years’
experience in global sales and services.
Our company focus on professional R & D, production and sales of
XPON access equipments, FTTH/FTTx solution and passive cabling
system products. We also committed to provide Customized OEM & ODM
services to Global communication distributors, Telecom Operators
and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and
owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win
more market and customers.
Advantage of our company :
① National High-tech enterprise certification；
② Fiber Optical Innovative &production team Over 10 years;
③ Fiber optical active and passive components production Workshop;
④ Strict quality management system;
⑤ Professional One stop supply & service;
⑥ OEM&ODM available;
⑦ Reliable and Timely customer services;
