fiber optic ftth box fiber network termination box fiber access
terminal box fat fttx
Description
OFS-FTH-224A is widely applied in FTTH network, telecommunication
network, CATV network, data communication network and local area
network(LAN).

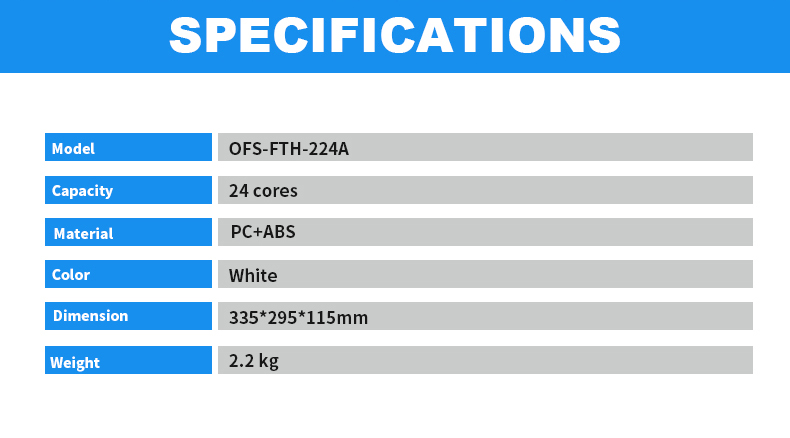

Technical Index
| Model No. | OFS-FTH-224A | Color | Black, Grey White.. |
| Capacity | 24 cores | Protection Level | IP66 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 335*296*117 | Splitter | 1/8 or 1/16 |
Max size(D×W×H): 335 × 296 × 117mm
Weight: 1.75 kg
Radius of curvature: ≥40mm
Splice tray excess loss:≤0.01dB
Stored coiling fiber length:≥1.6m
Max capacity(single fiber): 24 cores
Temperature range: - 40℃ ~ + 70℃
Lateral compression resistance: ≥2000N / 10 cm
Impact resistance:≥20N.m

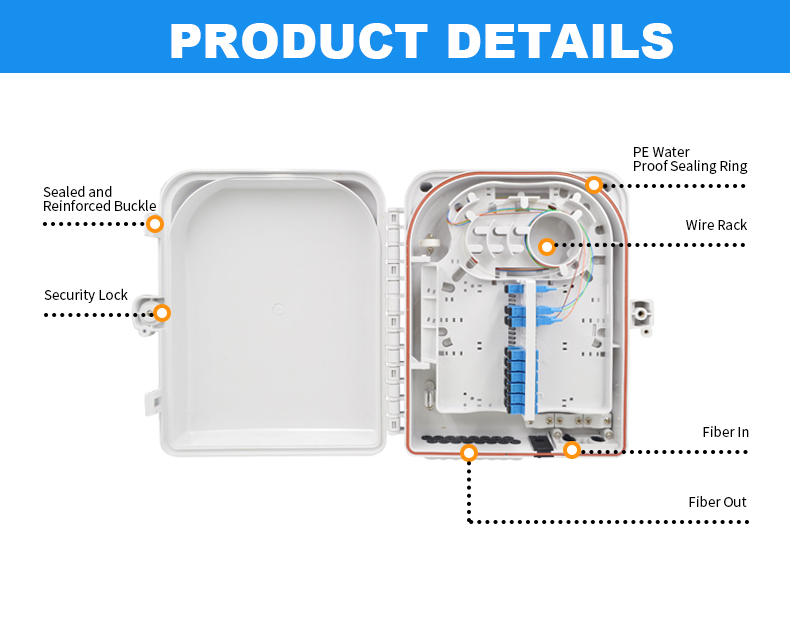

Features
1.Industry Standard User Interface, is made of high impact plastic.
2.Light and handy with easy maintenance, has special key-operated
switches.

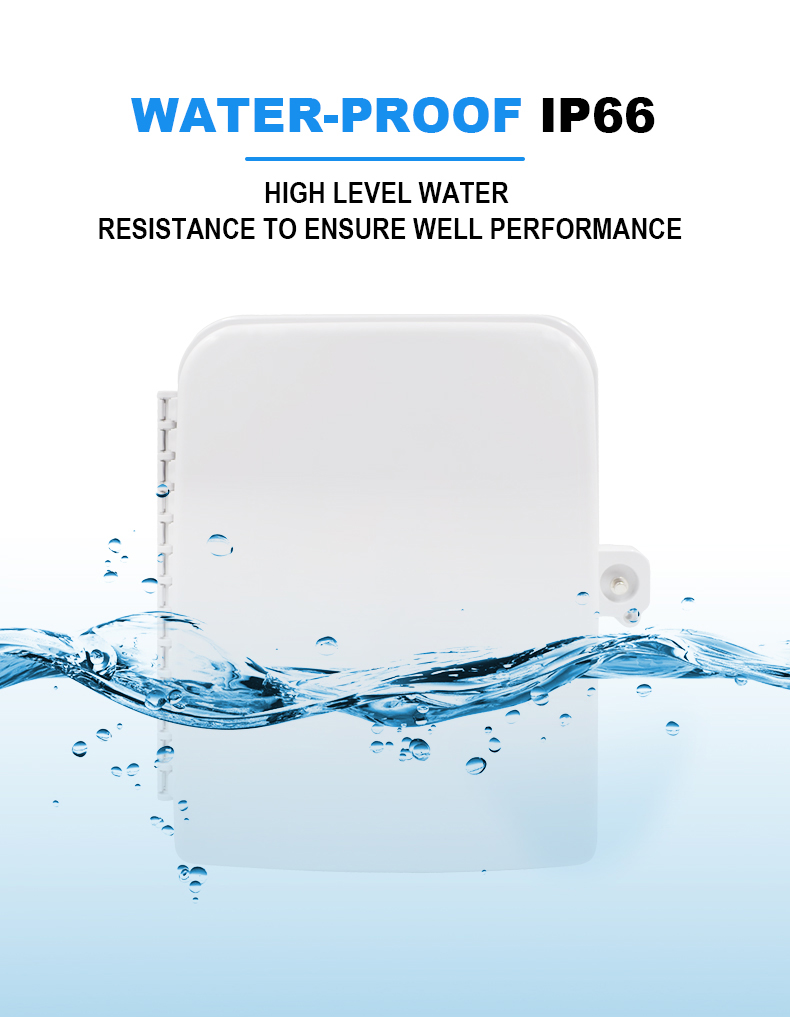

3.Anti-UV, Ultra violet resistant and rainfall resistant.
4.Splicing tray is divided into two parts, which is bilevel and
turnable.
5.Splicing:12~24cores.
6.3 inlet ports, 16 or 32 outlet ports.
7.Can accommodate PLC splitter and box style splitter. Max
splitting :1:16.
8.Can be used in indoor and outdoor, Wall-mounting.
Application
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
