    Zte Chipset 1 RJ45 GPON OLT ONU For Broadband System

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFSE611-W
    Certification : CE , RoHS
    Price : 12-20 USD
    Payment Terms : T/T
    Supply Ability : 5000 piece per one week
    Delivery Time : 5-7working days
    • Product Details
    • Company Profile

    Zte Chipset 1 RJ45 GPON OLT ONU For Broadband System

    1 EPON Port+1 RJ45 Port Mini EPON WIFI ONU For Broadband System


    Product Description


    Most popular & high quality FTTH 1GE Ethernet ports with WiFi EPON ONU for office use


    Technical Specifications

    Technical itemsDescription
    Upstream PON interface1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps, 1*WIFI
    Farthest distance20km between OLT and ONU
    Optical interfaceSC/UPC connector
    Downstream LAN interface1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
    Layer 2/3 switchCentralized OLT management based on OAM
    WEB,CLI
    Upgrade software remotely
    Support to save configuration parameters when power down
    WIFIIntegrated 802.11b/g/n
    Support WEP and WPA/WPA2 security protocols
    Management maintenanceCentralized OLT management based on OAM
    WEB,CLI
    Upgrade software remotely
    Support to save configuration parameters when power down
    Hardware information
    Indicators5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
    DC power supply+12V, external AC-DC power adaptor
    Chipsetzte chipset
    Operating conditionOperating temp: -5~+55℃
    Operating humidity:10~90%(non-condensed)
    Storing conditionStoring temp: -30~+60℃
    Storing humidity:10~90%(non-condensed)

    Feature:

    • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

    • Completely compatible with EPON international standard IEEE802.3ah/802.3-2005

    • Support China Telecom EPON CTC3.1 standard and expand OAM

    • Support triple churning encryption request

    • Support DBA reporting mechanism request

    • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah

    • Support the remote upgrade and download

    • Support status detection and fault report

    • Support to save configured parameters if power down

    • Support to configure the work mode at the user port

    • Support MDI-MDIX automatic-detection at the user port.

    • Support data encryption and decryption

    • Support access authentication based on serial number

    • Support access authentication based on MAC address

    • Support 802.1Q VLAN

    • Support rich QinQ VLAN functions and IGMP Snooping

    • Support traffic rule to modify the related priority.

    • Support IEEE802.11n 2T2R WiFi function
    • Support to restore the factory settings

    • Support the remote reset and reboot

    • Support dying gasp outage alarm

    • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

    Physical Pic Reference :

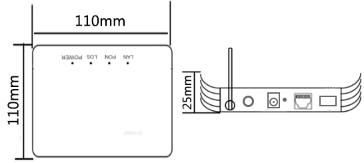

    Chassis Dimension:

    Package Dimension:

    Here is package box dimension of 1 port EPON ONU for your reference.

    size for 1 port EPON ONU: 185x110x40mm


    Power Supply Standard:


    Application
