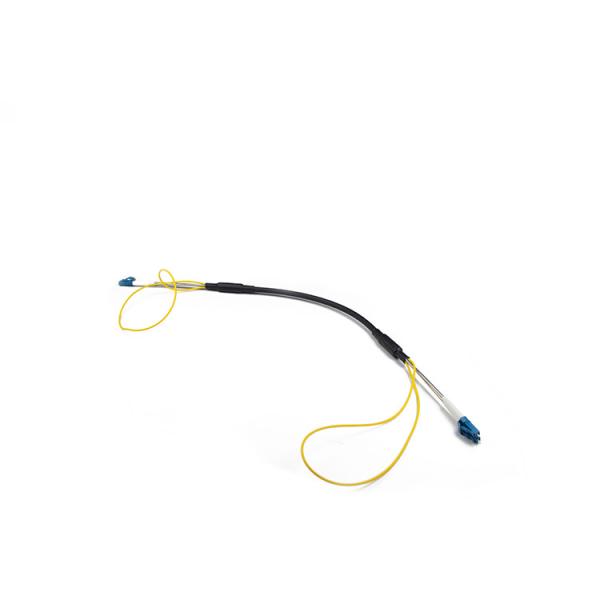

FTTA cable patch cord IEC61754-20 LSZH CPRI cable
Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
Features
1. Easily add/install jumper cables for a future expansion.
2. Low insertion loss and added loss.
3. Height of attenuation.
4. Flexibility with small bending radius and excellent cable
routing properties.
5. End-face geometry and quality superior than IEC and Telcordia
standards.
6. The material in the jumpel cable are all-weather and
UV-resistant.
7. Mechanical performance: IEC 61754-20 standard.
8. RoHS and REACH materials compliant.
PRODUCT PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC |
| Typical | MAX | Typical | MAX | Typical | MAX |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | 500 mating cycles |
| Working temperature | -40 to + 85℃ |
Connector Types
| Type | Reference | Note |
LC | IEC 61754-20 | Single mode duplex | APC: Green connectors , Green boots UPC: Blue connectors , White
boots |
| Multimode duplex | UPC: Grey Connectors , White boots |
Dimensional Diagrams
CPRI LC Outddoor cable Assemblies
Patch cord versions
| Jumper tolerance requirement |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
