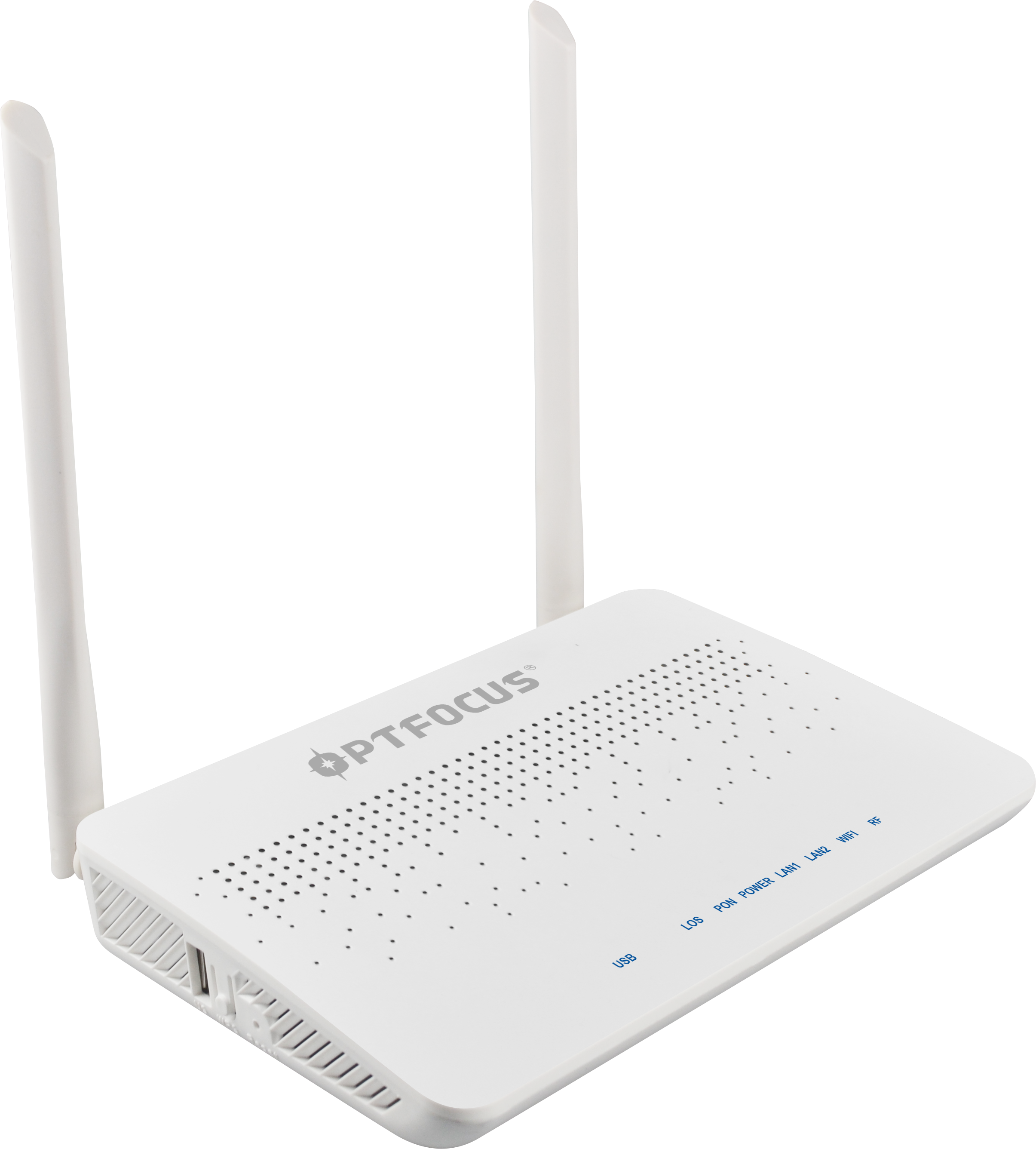

FTTH 2 LAN ports 1GE 1FE RF output wifi router gpon epon onu
OFSX622-CW
1GE+1FE Ethernet ports with Wifi WDM CATV XPON ONU for FTTH
solution
Description:
OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for
meeting the triple-play service needs of fixed network operators or
cable operators, and widely used in FTTx, video surveillance and
other requirements. It is based on mature GPON and EPON technology,
and has high ratio of performance to price, stable, cost-effective,
high reliability, easy management, configuration flexibility and
good quality of service (QoS) guarantees. It is fully compliant
with GPON and EPON technical regulations such as ITU-T G.984.x,
IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
| Tech parameters | description |
Up-link interface | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate
and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU
authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet
interface, RJ45 interface |
| Indicator LED | 7 pcs |
| DC supply interface | input＋12V 1A |
| Power | ≤8W |
| Operating temperature | -5～+55℃ |
| Humidity | 10～85%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 167*119*32mm(mainframe) |
| Weight | 0.6Kg(mainframe) |
Definition of indicator LED
| symbol | color | meaning |
| PWR | green | ON:successfully connect with power OFF:fail to connect with power |
| PON | green | ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
| LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down
faulty |
| WIFI | green | ON: WIFI is running OFF:WIFI startup fail |
| LOS | red | Flicker: fail to connect with PON port OFF: detected fiber to input |
| TEL | green | ON: Register success |
| OFF:Register fail |
| CATV | Green | Input optical power:0~ -15DBm |
| Red | Input optical power:≥0DBm,or -15DBm≥ |
