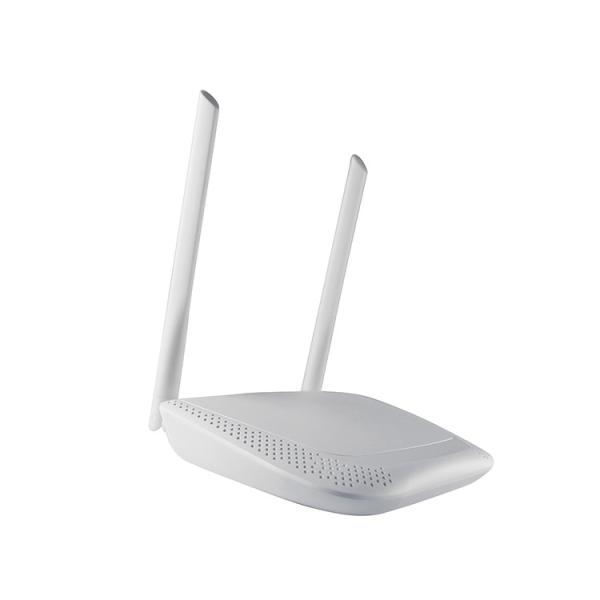

OFSX622-W
1GE+ 1 FE Ethernet ports with Wifi dual mode ONU Description:
OFSX622-W XPON(GPON and EPON dual mode) ONU. It is designed for
meeting the triple-play service needs of fixed network operators or
cable operators, and widely used in FTTx, video surveillance and
other requirements. It is based on mature GPON And Gigabit EPON
technology, and has high ratio of performance to price, stable,
cost-effective, high reliability, easy management, configuration
flexibility and good quality of service (QoS) guarantees. It is
fully compliant with GPON and EPON technical regulations such as
ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or
EPON.
| Tech parameters | Description |
Up-link interface | 1 XPON interface, SC single mode single fiber RX 2.488 Gbits/s rate
and TX 1.244 Gbits/s (GPON), RX 1244 Gbits/s rate and TX 1.244
Gbits/s (EPON) rate Fiber type: SC/UPC Optical power: 0~4 dBm Sensitivity: -28 dBm safety: ONU
authentication mechanism |
| Wavelength(nm) | TX 1310nm, RX 1490nm |
| Fiber connector | SC/UPC connector |
| Down-link data interface | 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet
interface, RJ45 interface |
| Indicator LED | 6 pcs |
| DC supply interface | Input+12V 1A |
| Power | ≤7W |
| Operating temperature | -5～+55°C |
| Humidity | 10 to 85% (non-condensation) |
| Storage temperature | -30~+70°C |
| Dimension(MM) | 167*119*32mm(mainframe) |
| Weight | 0.35Kg (mainframe) |
| Tech features | Description |
| Antenna | 2T2R Mode 5DBI Gain, Frequency: 2.4G |
| Rate | 300Mbps PHY rate |
| Encryption methods | WFA, WPA, WPA2, WAPI |
