    GPON OLT ONU 1GE ethernet port epon gpon onu for FTTH solutions

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFSX611
    Price : USD 9.5~11 / piece
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 50000 pcs / month
    Delivery Time : 5-10 days, depend on the quantity
    Certification : CE ISO
    • Product Details
    • Company Profile

    GPON OLT ONU 1GE ethernet port epon gpon onu for FTTH solutions

    GPON OLT ONU 1GE ethernet port epon gpon onu for FTTH solutions​



    OFSX611
    1GE Ethernet ports XPON ONU for FTTH solution


    OFSX611 XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON And EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.



    Basic Characteristics

    Tech parametersDescription


    Up-link interface

    1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
    Optical power: 0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

    Wavelength(nm)TX 1310nm,RX 1490nm
    Fiber connectorSC/UPC connector
    Down-link data interface1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
    Indicator LED4 pcs
    DC supply interfaceinput+12V 0.5A
    Power≤5W
    Operating temperature-5~+55℃
    Humidity10~85%(non-condensation)
    Storage temperature-30~+70℃
    Dimension(MM)85*85*28mm(mainframe)
    Weight0.24Kg(mainframe)

    Definition of indicator LED

    symbolcolormeaning
    PWRgreenON:successfully connect with power OFF:fail to connect with power
    PONgreenON:ONU port Link link correctly Flicker: PON registering
    OFF:ONU ports link link faulty
    LANgreenON: Link up correctly Flicker: data is transmitting OFF: link down faulty
    LOSred

    Flicker: fail to connect with PON port
    OFF: detected fiber to input

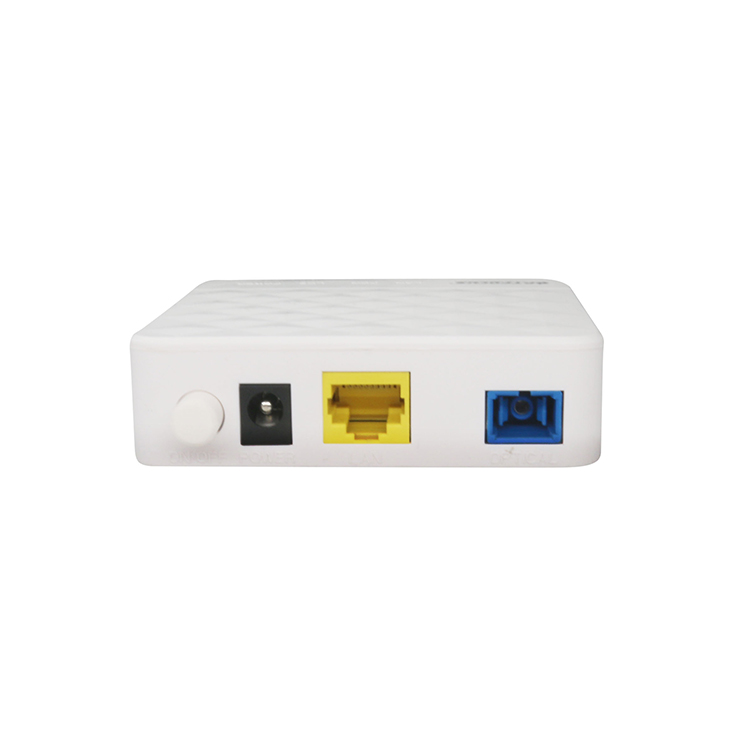

    Physical Pic Reference

    Package

    Solutions





    Certifications

    Certification-1


    COMPANY INFORMATION


    Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

    Company


    Factory

    OPTFOCUS has two office center, The manufacturing center locates in Baoan Industrial area, and the marketing office center locates in Nanshan district of Shenzhen City. Manufacturing center's land area around 2,000 M2, and it owns three production workshops. One workshop produce Fiber Optical Active Devices The other two workshops are specialized in producing Passive Components.
