    White EPON GEPON Gpon Olt Device 1GE 1FE CATV WIFI Dual Mode SC/APC Connector

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFSX622-CW
    Price :
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 50000 pcs / month
    Delivery Time : 5-10 days, depend on the quantity
    Certification : CE ISO
    • Product Details
    • Company Profile

    White EPON GEPON Gpon Olt Device 1GE 1FE CATV WIFI Dual Mode SC/APC Connector

    1GE+1FE+CATV+WIFI RF Dual mode SC/APC Connector BOSA XPON ONT ONT


    1GE+1FE Etheernet ports with WiFI WDM CATV XPON ONU for FTTH Solution

    OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.


    Tehnical specification

    Tech parametersdescription
    Up-link interface1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
    Optical power
    :0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
    Wavelength(nm)TX 1310nm,RX 1490nm
    Fiber connectorSC/UPC connector (SC / APC optional)
    Down-link data interface1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
    Indicator LED8 pcs
    DC supply interfaceinput+12V 1A
    Power≤7W
    Operating temperature-5~+55
    Humidity10~85%(non-condensation)
    Storage temperature-30~+70
    Dimension(MM)167*119*32mm(mainframe)
    Weight0.6Kg(mainframe)
    WIFI Characteristic
    Tech featuresdescription
    antenna2T2R Mode
    5DBI Gain ,Frequency:2.4G
    rate300Mbps PHY rate
    encryption methodsWFA WPA WPA2 WAPI
    CATV Technical features
    Tech featuresdescription
    Optical wavelength1540~1560nm
    Optical input range0~-15 DBm
    Optical return loss≥45 DB
    Bandwidth45~1000 MHz
    Flatness+- 1 DB
    RF output level≥72 dBuv
    AGC control range0~-14 DBm
    RF Output return loss≥14 DB
    Output impedance75Ω
    CNR≥50 DB
    CTB≥60 DB
    CSO≥60 DB


    Solution

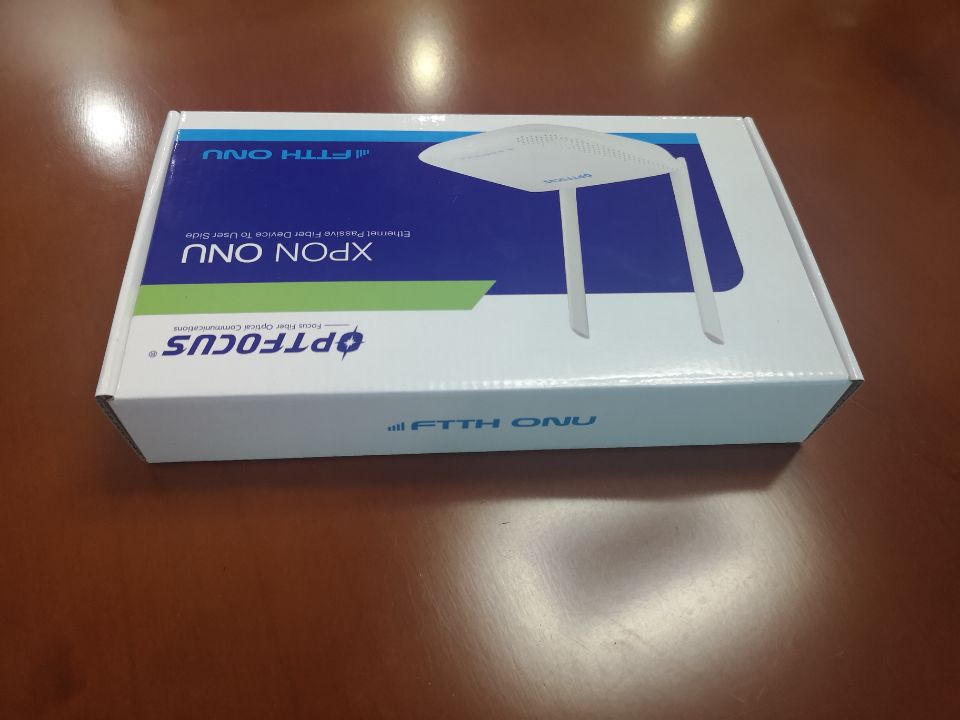

    Packing:

    Neatural packing:

    0.5KG/PCS, 24PCS/ CTN, 48 * 43 * 38CM, 12KG/ CTN
