    Metal Material SFP Bidi Optical Transceiver GPON OLT SFP Module 2.5G SC Connector

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-OLT-GSC+++
    Price : USD 29~32 / piece
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 50000 pcs / month
    Delivery Time : 5-10 days, depend on the quantity
    • Product Details
    • Company Profile

    Metal Material SFP Bidi Optical Transceiver GPON OLT SFP Module 2.5G SC Connector

    SFP BIDI Optical transceiver GPON OLT SFP Module 2.5G SFP C+++ 5.5~6.5dbm


    GPON Class C+++ SFP OLT Transceiver

    Feature

    SFP with SC/PC Connector Transceiver
    1490 nm DFB Tx with isolator
    1310 nm APD Rx
    Digital diagnostics SFF-8472 Compliant
    2488 Mbps continuous mode Transmission
    1244 Mbps Burst mode receiver Data Rate
    RX Fast Burst Mode Detection
    Provide fast RSSI function
    Operation case temperature: 0~70°C
    Class C++ link budget
    Comply with ITU-T G984.2 Amendment 1
    Complies with RoHS directive (2002/95/EC)

    Application

    GPON OLT Class C +++
    FTTx
    Specification
    ParameterSymbolMin.Max.Unit
    Storage Case Temp.TSTG-4085°C
    Operating Case Temp.TC070°C
    Power Supply VoltageVCC3.13.5V
    Total Power Supply CurrentICC-350Ma

    ParameterSymbolMin.Typ.Max.UnitsNotes
    Optical Transmitter PowerPO4.5610dBm1
    Optical Transmitter Power offPOFF---39dBm
    Output Center Wavelengthλ1480-1500nm
    Output Spectrum Width△λ--1.0nm
    Side Mode Suppression RatioSMSR30--db
    Extinction RatoER8.2--db
    Optical Rise Time---160ps
    Optical Fall Time---160ps
    Optical Eye DiagramCompliant with IEEE Std 802 3ahTM-2004
    Tolerence to Tx Back Reflection--15--db
    Data Rate--2.488-Gb/s
    Single Ended Data Input Voltage SwingVPP300-1200Mv
    Differential Input ImpedanceZIN80100120ohm
    IX fault Output Voltage- HighVIH2.4--V
    Ix fault Oulput Vollage-LowVIL--0.4V
    IX Dis Input Voltage. HighVIL2 -V
    IX_Dis Input Voltage-LowVIL--0.8V


    Function Diagram

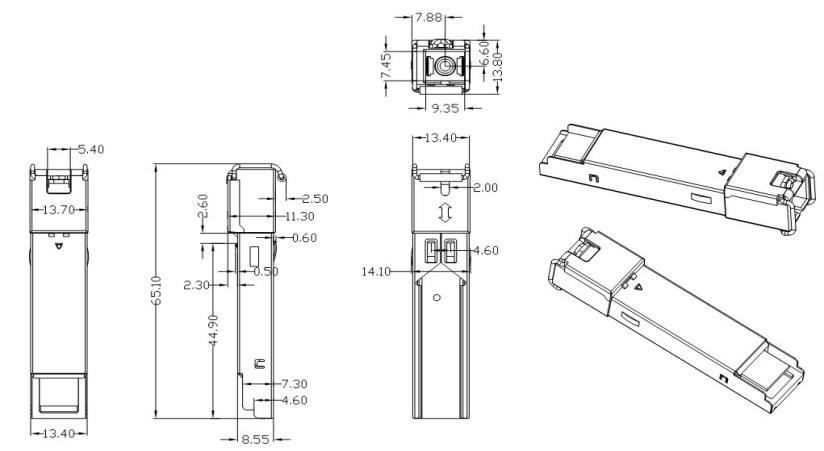

    Outline Drawing


    Packing:

    Neatural packing:

    10PCS/Plastic bag , 0.3KG/Plastic bag, 19*16*2CM
