FTTA Fiber to the antenna AARC 4Core Male Outdoor Cable RoHS And
REACH Materials Compliant
FEATURES
Bird proof and rodent resistant
IP67 water and dust protection
Available with singlemode or multimode fiber
Flange, Jam-Nut, or In-Line type receptacle assemblies
Operating temperature: -40° to 85°C
RoHS compliant
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications

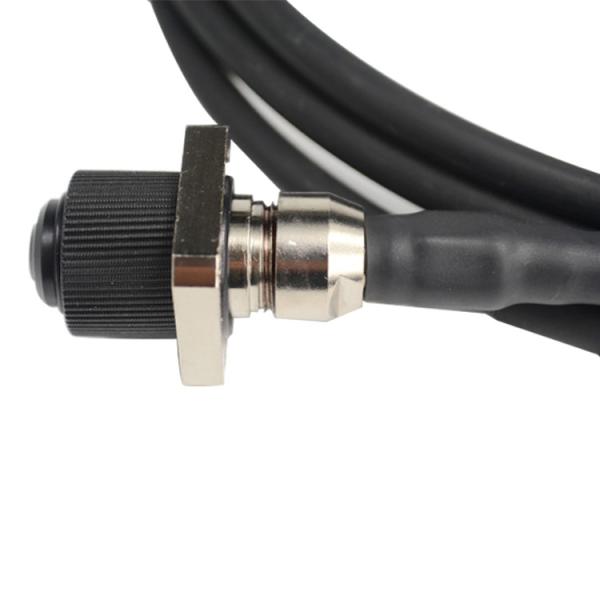

PRODUCT PHOTOS
AARC2(F) AARC2(M)
AARC4(F) AARC4(M)
PRODUCT PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC |
| Typical | MAX | Typical | MAX | Typical | MAX |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | 500 mating cycles |
| Working temperature | -40 to + 85℃ |
PAYMENT & SHIPMENT
1) Put each box into pallets and properly wrapped for sea or air
voyage.
2) Standard payment terms: T/T 30% DEPOSIT,70% BANLANCE before
shipping.
3) Online trade assurance order,all is up to you.
4) More payment terms could be provided(PAYPAL,WESTERN
UNION,MONEYGRAM).
