WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET

    Buy cheap WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET from wholesalers

    Buy cheap WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET from wholesalers
    • Buy cheap WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET from wholesalers

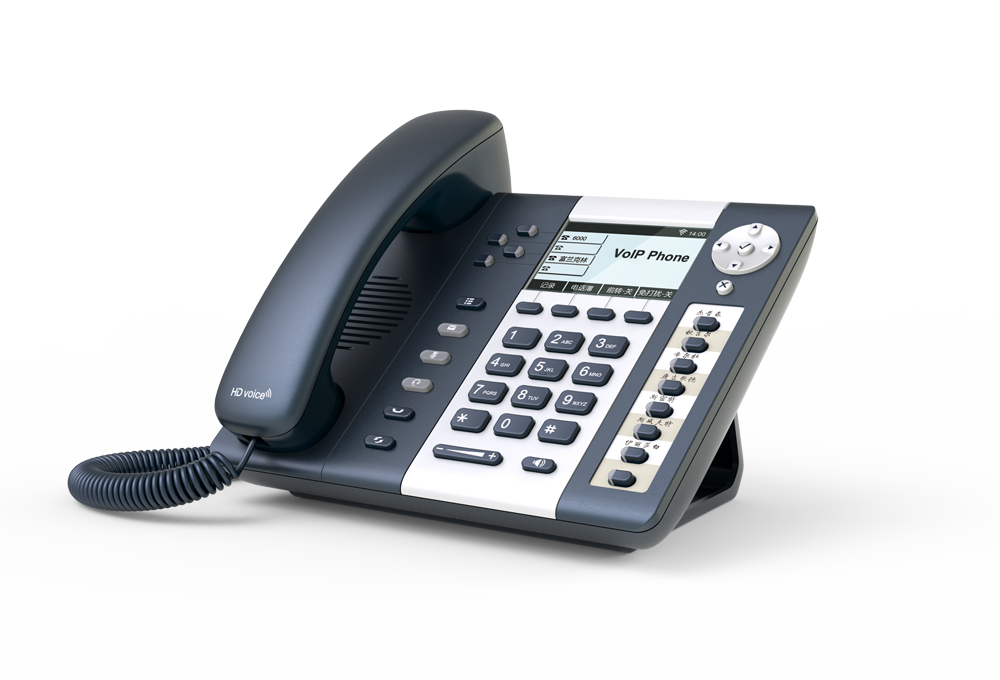

    WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-IPR003
    Certification : CE
    Price : negotiated
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 10000 pcs one month
    Delivery Time : within 3-5 days after get payment
    • Product Details
    • Company Profile

    WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET


    WiFi POE IP Phone 4 SIP Connected 2x TFT LCD Touch Screen Module Rainbow ET


    The OFS- IPR003 is OPTFOCUS ultimate elegant Gigabit IP phone for executive users and other professionals with remarkable design. The multiple SIP account and TFT LCD IP phone has been designed to be an indispensable terminal equipment of office communication for dainty enterprise.With HD voice quality and enhanced speaker box, it enable a high quality voice experience and all calls on it will be more like a face-to-face commnunication.


    Features:

    • Elegant appearance
    • Full HD Audio (handset, speaker, ringtone)
    • 400 x 240-pixel TFT LCD display
    • Up to 4 SIP Account
    • PoE Support
    • WiFi Connection (Optional)
    • Support TFT LCD Expansion Module
    • Gigabit Ethernet Port

    Concise appearance and Small size


    Desktop phone is a product you have to with you all the time at office, OPTFOCUS not just make a new

    phone, but want to deliver a much better phone. Each tiniest detials about R Series IP phone have been designed by a lot of good ideals, include the construct of keys, handset, foot stand etc. And all material

    is made with the remarkable precision, to ensure it's suitable for your office decoration style.


    HD Voice


    The R Series is built for very highest level voice performance. It supports G.722 codec, which covers a

    wide range includeing both low frequency and high frequency bands, and it complies with TIA920

    certification standards, enable calls with a HD voice quality just like you're face to facecommunicating

    with the other party. Furthermore, the R series have been the first IP phone that support full HD, such

    HD handset, HD speaker, and HD ring tones.


    Easy Configuration


    The R series is supported Auto Provisioning by TFTP / FTP / HTTP / PnP, which make installer

    configure and maintain all phones easier and more convenient.


    Compatible with a wide range of devices


    The R Series validated by Elastix and Broadsoft, to ensure an outstanding compatiblity with leading VoIP

    platforms.

    Display Features


    LCD Display

    224x128 dot-matrix

    4-level gray scale FSTN LCD

    LCD Size3.2"
    LCD ComtrastAdjustable
    LCD BacklightAdjustable

    Install Option


    Desk MountYes
    Wall MountYes

    Network Features


    IP VersionIPv4
    IP AssignmentYes ( Static / DHCP / PPPoE )
    DNSYes (Primary and Secondary DNS supported)
    HTTPYes
    SNTP Client:Yes
    VLAN (802.1Q)Yes
    QoS (DiffServ)Yes
    VPNYes (L2TP VPN supported)
    NAT TransverseYes (STUN mode)
    SecurityYes (SRTP / TLS supported)

    Others


    Power ConsumptionStandby:1.0W, Working:2.2W
    Operating Humidity10 - 90%
    Operating Environment0°C -45°C (32°F - 113°F)
    Dimension (W x D x H)218 x 176 x 129mm
    Weight1.3Kg

    SIP Features


    SIP Accounts4
    SIP Compatibility

    SIP v1 (RFC2543), v2 (RFC3261), Asterisk,Broadsoft,

    OPTFOCUS IP PBX


    Keys Features


    Programmable Keys8
    Features Keys7(Menu, Hold,Redial, Mute, Headset, hands-freespeakerphone, Message)
    Line LED Keys4
    Volume Control Keys2
    Context Sensitive Soft Keys4
    Navigation Keys4

    Configuration and Management


    Plug & Play ConfigurationServer based configuration
    Manual Configuration

    Internal WebConfigurator, Local (LCD based) network

    Configuration

    Auto ProvisionTFTP / FTP / HTTP / PnP

    Software Features


    Phone Book (Entries)200
    Call Log Entries

    200 Incoming calls + 200 Outgoing Calls +200

    Missed caslls

    Conferncing3 parties
    Music On HoldSupplied by Host Service (PBX/SIP Server)
    Phone Basic Functions

    One-Touch,Speed Dial, Redial,Call Forward,Call Waiting, Call

    Transfer, Call Hold, Call Return, Mute, Auto answer, DND,

    Call History

    Dialed /Received/Missed, Direct IP Call

    without SIP Proxy ,Hotline ,Dail Plan,Set Date/Time Manually

    or Automatically

    Phone Functions with

    IP PBX

    Anonymous Call, Anonymous Call Rejection, DND,

    Forward ,Synchronization Message Waiting Indicator (MWI) ,

    Voice Mail,Call Park, Call Pickup Intercom, Paging,Music on Hold,

    Call Recording


    Audio Features


    Handset,Speaker,Headset

    Volume Ringtones

    10+2 user define
    Ringer Volume8 levels + off
    Audio Codec

    G.711(A/μ),G.722

    (Wideband),L16 PCM (Wideband),

    G.726,G.729AB,iLBC

    Ethernet Ports2x 10 / 100 Mbps
    RJ45 Expansion Module Port

    1 (Up

    to 2x LCD Expansion Modules)

    PoE (Power over Ethernet)

    IEEE

    802.3af Class 2 standard compliant

    Headset Jack1x RJ9
    Headset Jack1x RJ9
    Power adapter Jack

    3.5mm,DC 5.0V,

    1.0A
