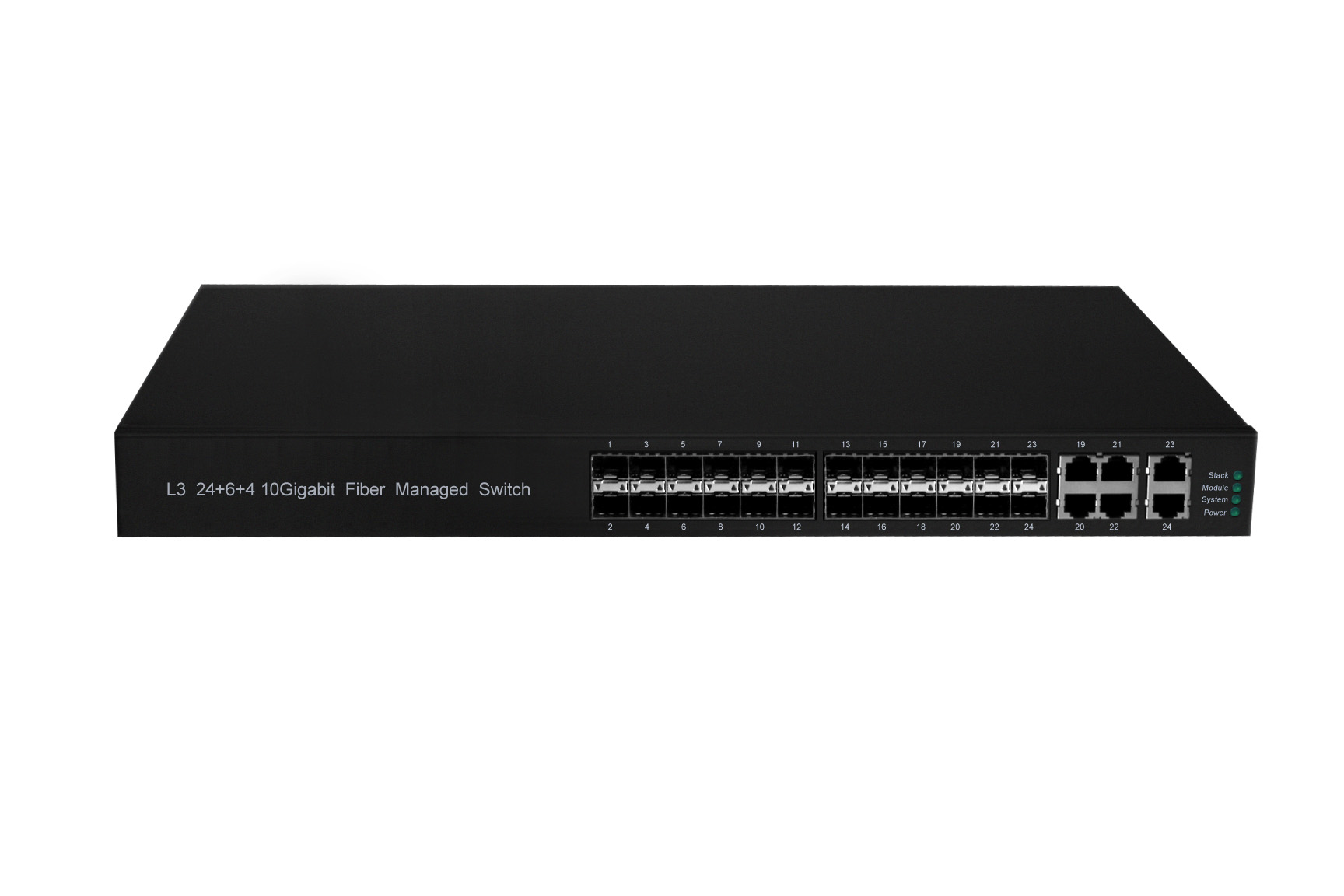

Description
The OFS-MXF4GSF24T6-I 10 Gigabit Managed Switches arestandard
third-layer non-blocking switch. Based onhigh-performance ASIC chip
technology, the modular structuredesign, which have a capability of
multilayer switching andwire-speed routing forwarding. Can be
deployed in themetropolitan area network, and provides a few last 1
kmtechnology to gather and core data exchange. At the sametime,
OFS-MXF4GSF24T6 Series Switches provide acomplete IPv4/IPv6
routing, including tunnel and IP multicast.The user can set all
kinds of functions of switch through the Web, SNMP and so on.
OFS-MXF4GSF24T6Series Switches support 2nd layer and 3rd layer VPN,
DOS
defense, static routing, RIP, OSPF, BGP, PIM-SM, PIM-DM,DVMRP, NAT,
Qos, RSTP, MSTP, VLAN, Port Security, astorm suppression, ACL
access control and other functions,which is very suitable for the
aggregation application oflarge-scale network and the core
application of medium and small-sized network.
Features
with 128Gbps backplane capacity, the industry the highest
performance (1U TOR);
hardware routing, the packet forwarding rate of the wire speed
layer 3 switching has reached 95.232Mpps, L2 / L3 full speed
forwarding;
able to be deployed in the Metropolitan Area Network and provide
several last kilometer technology
Safe and Reliable
1.provide DOS, DDOS, spoofing and virus defense;
2.support IEEE802.1x, provide port-based user authentication,
network shield, safety control, and policy control technology;
3.restrict the maximum number of hosts connected with the port,
multi-binding Ethernet interface , increasing bandwidth and
system redundancy;
4.powerful ACL, support L2-L4 data filtering;
5.policy control list and flow regulation.
Convenient Maintenance
1.able to be managed via Web, SNMP, CLI, telnet, etc;
2.support XModem protocol, use TFTP/ZMODEM for software upgrading
and BootRom upgrading;
3.support SFP+, simultaneously downward compatible XFP;
4.support flexible port configuration;
5.enter or exit low-power condition from PHY
| Basic characteristics |
| Fixed port | 24 1G optical ports, 6 1G electrical combo ports |
| Extensible port | 4 extensible 10G ports |
| Backplane bandwidth | 128Gbps |
Packet forwarding rate |
95.232Mpps |
| Processor | RISC 400MHz |
Flash memory capacity |
8MB |
| The memory capacity | 128MB |
| Address table | 32K |
| Product characteristics |
Spanning tree | Support STP, RSTP, MSTP Support PVST/PVST+ |
VLAN | Support port-based VLAN Support MAC-based VLAN Support 802.1Q
labeled VLAN Support for Super Vlan Support for Private Vlan Support for the GVRP dynamic VLAN configuration Support QinQ and
flexible QinQ Support for Voice VLAN |
Flow control | Based on a standard IEEE 802.3x flow control Using IEEE 802.1Qbb
priority flow control Support CAR function |
| Broadcast control | Restraining broadcast storm, stop sending so long as reaching a
critical point |
| multicast control | IGMP Snooping multicast message automatic monitoring |
multicast routing | IGMP v1/v2/v3, MLDv2 PIM-SM, OLINK&PIM-DM DVMRP (Distance Vector Multicast Routing Protocol) GMRP (multicast dynamic registration protocol) |
Port binding | Each group of a maximum of 8, while support 128 group LACP dynamic or static polymerization |
| Port mirroring | Support based on flow classification mirroring and port mirroring |
Stacked | Stacked 16 hard, soft stacking 32 Using clustering techniques, with a unified centralized management
of IP address to do address resource saving |
Routing management | Static routing RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4,
ISIS, BGP Anti virus intelligent routing function |
| Strategy routing | Support based on IP strategy routing |
| The proxy function | Support Proxy ARP, DNS Proxy |
| Redundancy backup | Support for VRRP, HSRP Hot Standby Router Protocol |
Characteristics of DHCP |
DHCP Server, DHCP Client and support DHCP relay |
| Function of NAT | Support the static or dynamic NAT address translation function |
Safety characteristics | IEEE 802.1x port certification, PKI certification Port Security
(Port Security) function Hardware support for IP ACL ACL ACL, MAC, Vlan Hardware support for port based user IP+MAC+Vlan ID+ user account a
variety of factors combined to bind Support IP Source Guard Support WEB interface user authentication Remote RADIUS, TACACS+
certification User classification management and password protection Net shield
technology Safety control technology Policy control list |
Quality of service | IEEE 802.1Qau congestion mechanism Each port 8 send queue mapping 802.1p 8 priority WRED, WFQ, SP and
FIFO queue scheduling algorithm Best-Effort Service Differentiated Service Strict Priority Weighted Round Robin First
come first served TOS to mark RTS |
Network management | SNMP v1/v2/v3 RMON (1,2,3,9 group) Telnet WEB interface Support for cluster management Support SSH Support for PDP (compatible with Cisco CDP.) |
| To support the fan, temperature, system log, hierarchical alarm |
| Physical characteristics |
| Appearance size | 442mm × 285mm × 44mm |
| Power characteristic | AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup |
| Power | 80W |
| Indicator lamp | Power indicator, indication of system, connecting / transceiver
instructions |
Environment humidity / temperature |
0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation
|
