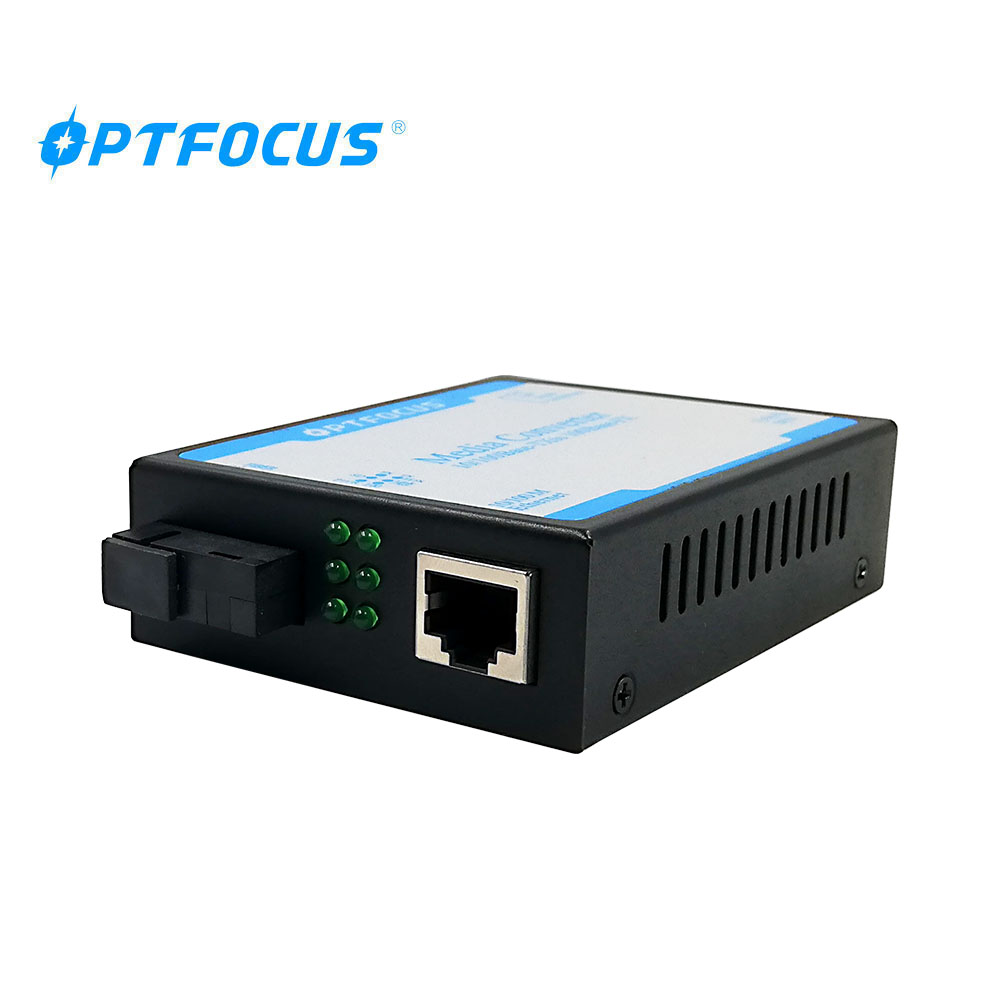

10/100M 1310NM single model single fiber 20km Media converter for
FTTH
OPTFOCUS Series Fiber Media Converter is the
conversion equipment of Ethernet optical-electronic signals
between 10/100M UTP interface (TX) and 100M Fiber
interface (FX). The traditional 10/100M Fast Ethernet can be
extended to the distance of 120km through optical fiber link.
The performance and quality of the products are excellent
because of adopting latest IC. 6 Group LED indicated lights
could fully monitor the working conditions of Converters. It is
easy for users to observe the network operations. The Series
products with reasonable price are especially designed for
network users.OPTFOCUS Series Converters could be used
alone;
The converters can be used as a stand-alone unit or as a
slide-in module to the OPTFODUS Media Converter Chassis,
OFS-RACK-14. As the other OPTOFUS OFS-Series media
converters, they're hot swappable in MC-Chassis.
Features
◆Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX
Standard
◆Auto negotiation function allows UTP port to auto select 10M or
100M and Full Duplex or Half Duplex
◆UTP port supports MDI / MDI-X auto crossover.
◆Supporting flow control
◆Supporting 1552 bytes packet
◆Extend fiber distance up to 2km for multi-mode fiber and 20-120km
for single-mode fiber
◆Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps
◆Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
- Full or half-duplex mode by DIP-switch (FX)
◆LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX
Link/Act
◆Supports link fault pass through function.
◆Design of internal or external power supply for selection by
end-users
Standalone and Centralized Management Media Converter Installation
Affording the current network grows and expanding, the OFS-DM/DS
provide advanced Media conversion
technology to fill this kind of demand. The OFS-DM/DS series Media
COnverter provide the diverse fiber
connecting types of options to meet different network applications.
It is very flexible for OFS-DM/DS to
work as a standalone device or install into the central Standard
Media converter chassis for centralized
power provide. The OFS-DM/DS is ideal solution for building a
network solution of FTTH (Fiber to the Home)
or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for
ISPs, campuses and enterprises.
| Keywords | Media converter |
| Usage | FTTH/FTTX |
| Date Rate | 10/100M |
