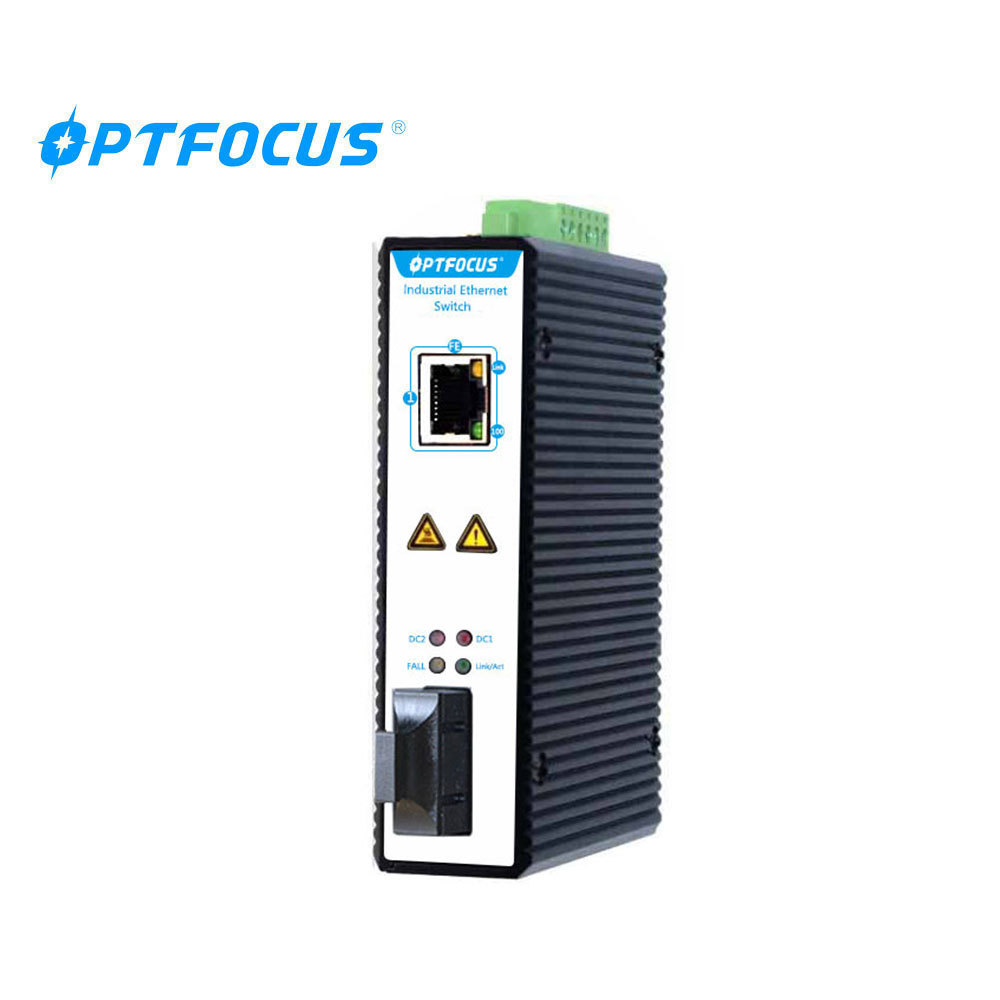

12-48V DC Input 10/100Mbps Single Mode Dual fiber 20km SC Fiber
port Industrial Media Converter
This is a Layer 2 + Optical Ethernet switch with 100Mbps Optical
fiber ports and 1*10/100/100Mbps RJ45 ports.
It is designed to meet the various application needs, and provide
an Ethernet network communication solution with a high
performance-price ratio.
It is high availability and reliability, as well as the rich security features, makes it ideal for secure data
transmission.for connecting with devices like computer, switch,
hub, server, etc.
Features
Ø 1 port 10/100/100Mbps with Auto Uplink™ , 1 port 100Mbps Fiber Slot
Ø Automatic MAC address learning and aging
Ø 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
Ø LED indicators for monitoring power/link/activity
Ø Supports10/100/1000Mbps-Full/Half-duplex
Ø Excellent heat elimination without cooling fan.
Ø Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe
City.
Ø Support dual power redundancy(optional)
Ø The built-in 12V lead acid battery charging circuit. (optional)
Technical parameter list
| Product Name | 1-port 10/100/1000Mbps +1-port 1000Mbps Fiber Slot |
| Product Model | OFS-GIS-20 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i
100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X; IEEE802.3x; |
| Fiber port | LC,SC,ST,FC Optional |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode:550M- 2KM
Single-mode: 20/40/60/80/100/120KM |
| Performance Specification | Bandwidth: 20Gbps
Packet Forwarding Rate:1488000pps/port
MAC Address Table:4K |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-8);
TP Link/Act(1-8) |
| Power Supply | Input: AC100 ~ 250V,
Output:DC12~15V. |
| Max power | 7W |
| Environment temperature | 0 ~ +55℃ |
| Storage temperature | -20 ~ +70℃ |
| Humidity | 5% ~ 90% |
