Optional outstanding Appearance Design FTTH Optical Smart Pon 1.25G
1 Port Router Gepon Gpon Xpon ONU
Product Description

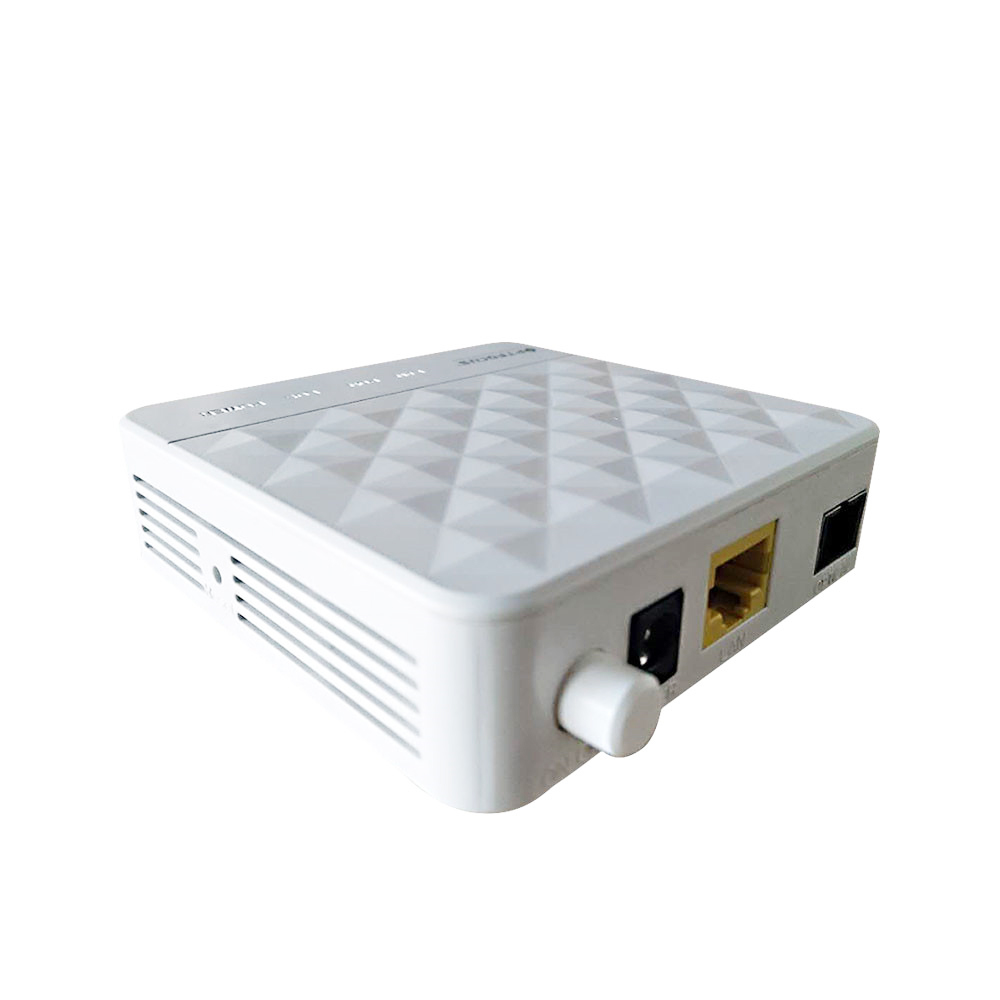

OFSX611 XPON(GPON and EPON dual mode) ONU. It is designed for
meeting the triple-play service needs of fixed network operators or
cable operators, and widely used in FTTx, video surveillance and
other requirements. It is based on mature GPON and EPON technology,
and has high ratio of performance to price, stable, cost-effective,
high reliability, easy management, configuration flexibility and
good quality of service (QoS) guarantees. It is fully compliant
with GPON and EPON technical regulations such as ITU-T G.984.x,
IEEE802.3ah requirement. it can be used as GPON or EPON.
Features:
| Tech parameters | description |
Up-link interface | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate
and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU
authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.24Kg(mainframe) |
| symbol | color | meaning |
| PWR | green | ON:successfully connect with power OFF:fail to connect with power |
| PON | green | ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
| LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down
faulty |
| LOS | red | Flicker: fail to connect with PON port OFF: detected fiber to input |
Applications
- Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
- Completely compatible with GPON international standard
IEEE802.3ah/802.3-2005
- Support China Telecom GPON CTC3.1 standard and expand OAM
- Support DBA reporting mechanism request
- Support OAM (Link, Test, Loop back)maintenance function defined
IEEE802.3ah
- Support to save configured parameters if power down
- Support to configure the work mode at the user port
- Support MDI-MDIX automatic-detection at the user port.
- Support access authentication based on serial number
- Support access authentication based on MAC address
- Support 802.1Q VLAN
- Support traffic rule to modify the related priority.
- Support to restore the factory settings
- Support the remote reset and reboot
- Support dying gasp outage alarm
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Welcome to contact our sales team and they will
offer you a professional introduction about our products!
FAQ:
1. who are we?
We are a 12 years manufacturer specialize in fiber optic
communication equipment
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switch,GPON ONU,EPON ONU
4. How many days can shipment after ordered?
According to the quantity you order, we will reply you the shipment
day
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
