Product Description

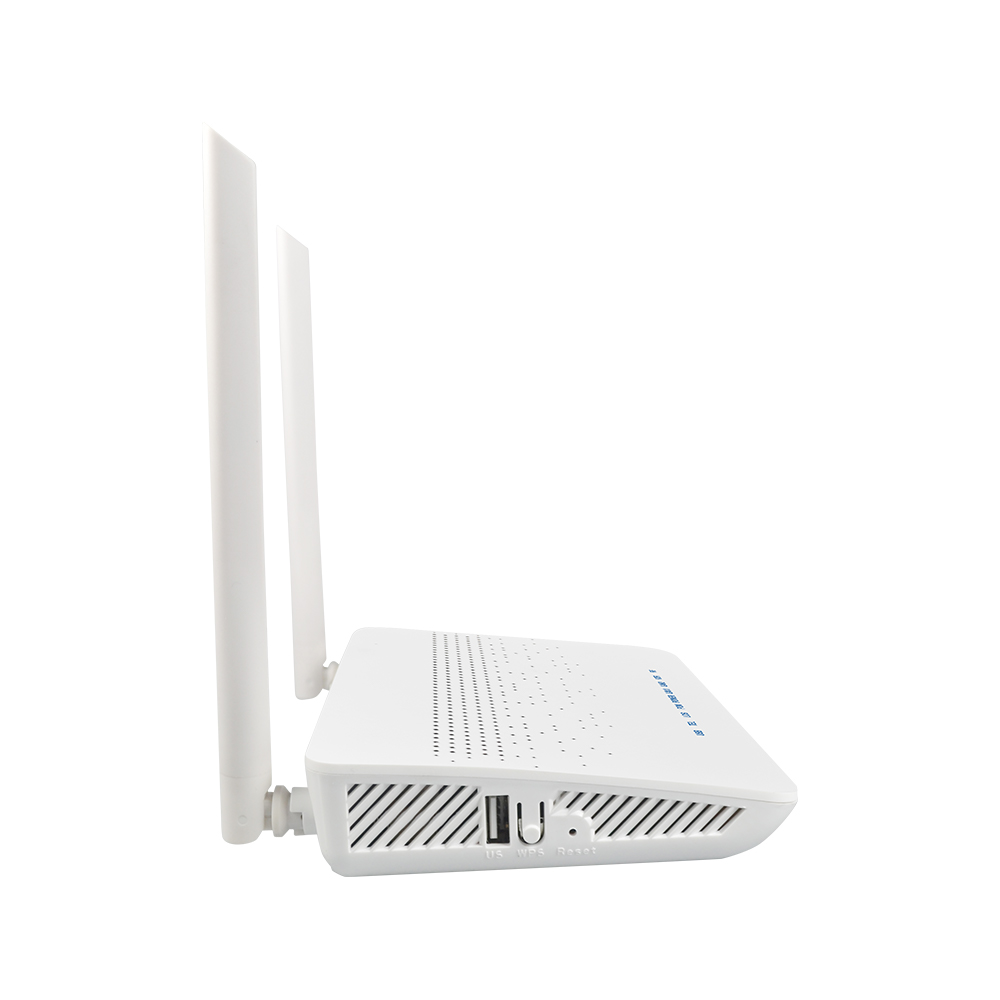

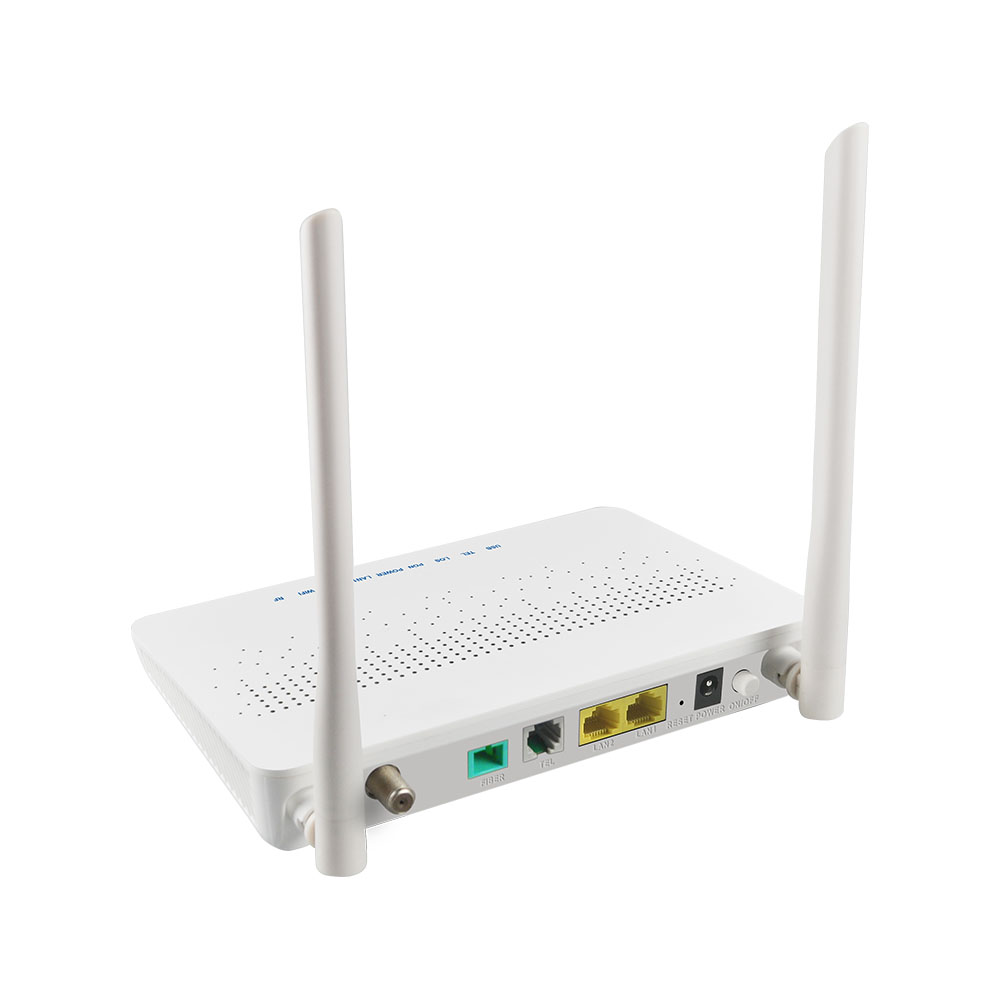

OFSE624-CVWU is EPON ONU terminal devices. It is designed for
meeting the triple-play service needs of fixed network operators or
cable operators, and widely used in FTTx, video surveillance and
other requirements. It is based on mature EPON technology, and has
high ratio of performance to price, stable, cost-effective, high
reliability, easy management, configuration flexibility and good
quality of service (QoS) guarantees. Equipment technical
performance meets the IEEE803.2ah and CTC2.1 standards.
Features:
| Tech parameters | description |
Up-link interface | 1 EPON interface,SC single mode single fiber RX 2.488 Gbits/s rate
and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244
Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU
authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490/1550nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet
interface, RJ45 interface |
| Indicator LED | 10 pcs |
| DC supply interface | input＋12V 1.5A |
| Power | ≤10W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 188*125*35mm(mainframe) |
| Weight | 0.5Kg(mainframe) |
| Tech features | description |
| antenna | 2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
| Tech features | description |
| antenna | 2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
| Tech features | description |
| Optical wavelength | 1540~1560nm |
| Optical input range | 0~-15 DBm |
| Optical return loss | ≥45 DB |
| Bandwidth | 45~1000 MHz |
| Flatness | 士 1 DB |
| RF output level | ≥72 dBuv |
| AGC control range | 0~-14 DBm |
| RF Output return loss | ≥14 DB |
| Output impedance | 75Ω |
| CNR | ≥50 DB |
| CTB | ≥60 DB |
| CSO | ≥60 DB |
Applications
- Plug and play, features auto-detecting, auto-configuration, and
auto firmware upgrade, etc.
- Support triple churning encryption request
- Support DBA reporting mechanism request
- Support OAM (Link, Test, Loop back)maintenance function defined
IEEE802.3ah
- Support the remote upgrade and download
- Support status detection and fault report
- Support to save configured parameters if power down
- Support to configure the work mode at the user port
- Support MDI-MDIX automatic-detection at the user port.
- Support data encryption and decryption
