100M Bidi 20km SC Fiber Media Converter SM 1310nm 1550nm

Ask Lasest Price
Brand Name :	OPTFOCUS
Model Number :	OFS-DS-20C
Certification :	CE
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	50000 piece a month
Delivery Time :	7-14 days

Add to Cart

Product Details
Company Profile

100M Bidi 20km SC Fiber Media Converter SM 1310nm 1550nm

Quick Details

Model Number:: OFS-DS-20C

Type:: FTTx Solutions

Place of Origin:: Guangdong, China

Brand Name:: OPTFOCUS/ OEM

Use:: Household business

Warranty Time:: 1 year

Product name:: Fast Ethernet 10Base2 to 10BaseT Media Converter

Data transmission distance:: 20KM

Ports:: 2 Port 10/100Mbps , 1 port 100Mbps

Indicator:: LED light

Network Protocols:: IEEE802.3 10BASE-T; IEEE802.3i

Installation:: DIN-Rail or Wall mounts,Optional

Max power:: 3 W

Dimensions:: 94.5 * 70 * 26 mm

Operation temperature:: 0 ~ +55℃

Keywords:: Fast Ethernet 10Base2 to 10BaseT Media Converter

Supply Ability

Supply Ability: 5000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Each product is packed in a high quality PE bag, Then put into a box or carton.

Port: SHENZHEN,GUANGZHOU,HONGKONG

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	15	To be negotiated

Product Descriptions

Brand New Single Mode Dual Fibers 10/100Mbps Fast Ethernet Fiber Optic Media Converter

Product Preview::
 OFS-DS=20C Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link.The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone. The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis

Main Features

1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps
10/100Mbps Auto-negotiation auto-MDI-MDI-X Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex Supporting 1480 bytes packet Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber Data Transfer Rate: - TP: 10/100Mbps - FX: 100Mbps Duplex mode support: - Full or half-duplex mode by Auto-Negotiation (TP) LED indicators: Power, FX 100, FX Link/Act,TX 100, TX FDX, TX Link/Act Supports link fault pass through function Design of internal or external power supply for selection by end-users

Details Images

100M Bidi 20km SC Fiber Media Converter SM 1310nm 1550nm

Technical Parameters

Product Name		10/100M Media Converter
Product Model		OFS-DS-20C
onnector		Fiber: 1* 100Mbps Connector
		RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media		10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media		Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 120km)
Forwarding Mode		Store-and-Forward
Forwarding Rate:		1488000pps/port
Operating standard		EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power	external	Input:AC 100~250VOutput:DC 5V 1A ,(default). or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional)
		USB power supply(Optional).
Power consumption		2.5W
LED		Power, Link/Act, TX 100,TX,FDX, Link/Act.
Working Environment		Working temperature: -10～55℃ ; Storage temperature: -20～75℃ Relative Humidity: 5%~95 %( no condensation)

Other Specifications :
Installation	DIN-Rail or Wall mounts,Optional,Default device is not
Packing List	1× Media Converter 1×User Manual/Certificate of quality/Warranty card 1×power adapter
MTBF	100,000 hours
Weight & Size	Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 94.57026mm Packing size(L×W×H):21513856mm
Warranty	1-year

DIP Switch:
SW1	ON	Enable LFP
SW1	OFF	Disable LFP
SW2	ON	Cut-through
SW2	OFF	Store-and-Forward
SW3	OFF	No function
SW4	OFF	No function

.Chassis Dimension

Solutions:

Power Supply Adapter Standard

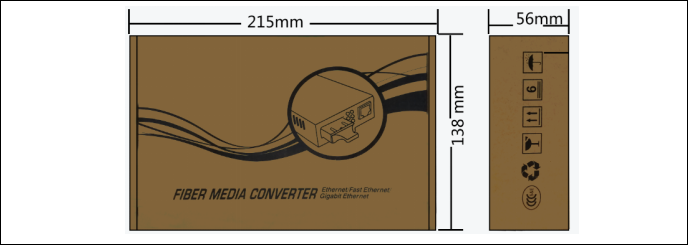

Product packaging

View of the Company

Exhibition

Customer Feedback

FAQ

1. who are we?
 We are based in Guangdong, China, started our business in 2009,we are selling our products to South America(30.00%),Southeast Asia(35.00%),Domestic Market(7.00%),North America(9.00%),Europe(5.00%),,Western Europe(11.00%),Mid East(3.00%).

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3.what can you buy from us?
 Switch,GPON ONU,EPON ONU

 4. why should you buy from us not from other suppliers?
 Pls check our company's advantages on the above , section"Why choose us"/

 5. what services can we provide?
 Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
 Accepted Payment Currency:USD,EUR,CNY,CHF;
 Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
 Language Spoken:English,Chinese,Russian
