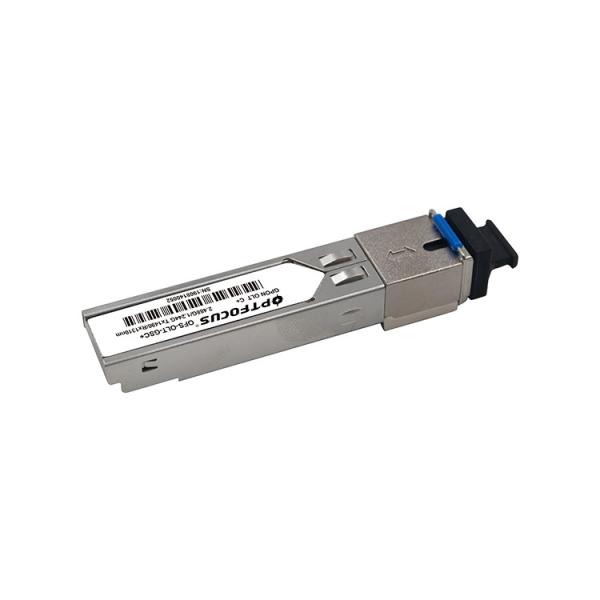

    1550nm 40Km Fiber Optical Cable Module SM MM 1.25G FTTX Metal

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : SFP-1512-40L
    Certification : CE
    Price : USD 4.9 1piece
    Payment Terms : T/T
    Supply Ability : 5000 piece a month
    Delivery Time : 7-14 days
    • Product Details
    • Company Profile

    1550nm 40Km Fiber Optical Cable Module SM MM 1.25G FTTX Metal

    1550nm 40Km Fiber Optical Cable Module SM MM 1.25G FTTX Metal
    Quick Details
    Model Number:
    SFP-1512-40L
    Type:
    Fiber Optic Transceivers
    Place of Origin:
    Guangdong, China
    Brand Name:
    OPTFOCUS
    Use:
    FTTX
    Warranty Time:
    1 Year
    Keywords:
    SFP
    Data Rate:
    1.25Gbps
    Interface:
    LC
    Wavelength:
    1310/1550nm
    Working temperature:
    0~70C
    Distance:
    40km
    DDM:
    With
    Fiber Type:
    SFP
    Application:
    FTTX Network
    Warranty:
    12 Months
    Supply Ability
    Supply Ability
    5000 Piece/Pieces per Month
    Packaging & Delivery
    Packaging Details
    Each product is packed in a high quality PE bag, Then put into a box or carton.
    Port
    SHENZHEN,GUANGZHOU,HONGKONG
    Lead Time:
    Quantity(Pieces)1 - 5000>5000
    Est. Time(days)7To be negotiated
    Product Description
    The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
    The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
    Specification
    Parameter
    Range
    Unit
    Accuracy
    Calibration
    Temperature
    0 to +70
    °C
    ±3°C
    Internal / External
    Voltage
    3.0 to 3.6
    V
    ±3%
    Internal / External
    Bias Current
    0 to 100
    mA
    ±10%
    Internal / External
    TX Power
    -9 to -3
    dBm
    ±3dB
    Internal / External
    RX Power
    -23 to -3
    dBm
    ±3dB
    Internal / External

    Packing & Delivery
    Box or carton.
