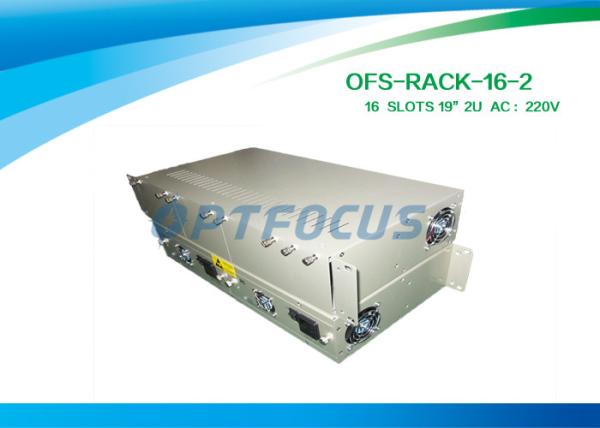

OFS-RACK-16
16 Slots Media Converter RACK for Converter Card
It is acceptable for the most 16 sets of different Media Converter
Cards within a rack-mountable chassis which is supplied with
unified power. Installing at the center of network, it can not only
reduce the links, simplify the structure, but also ease for
management and maintenance.
OFS-RACK can be tidily placed at any network environment. The
external form of RACK is simple and tidy. It is ready for
10/100Mbps, 10/100/1000Mbps Converter Card to be plugged in, and
will be the best solution of network connections for the continuous
development of network.
Main features
The power of the Rack can be supplied by the type of single power
or dual power. Adopting dual power supply, the load of each power
can be reduced and the life of the power would extend. When one
power supply is at fault, the other one can still work
independently. It would enhance the reliability of the RACK.
Supplying the converters or powers to be plugged and played.
2U high: 19 inch standard design
It is possessed of stable performance, large capacity of power
supply, and ease for management and maintenance.
Technical Specifications
| Capacity | 16 slots available. Every 10/100M Converter Card occupies one slot,
every 10/100/1000M Converter Card occupies two slots |
| Power input | AC 100~260V,50~60Hz; output:DC +5V 12A |
| Output | DC +5V 12A |
| Vein | ≤50mv |
| Noise | ≤50mv |
| ≤50mv | protection from over voltage, over current and short circuit |
| Ambient temperature | 0 ~ +50°C |
| Storage temperature | -20°C~70°C |
| Humidity | 5% ~ 90% |
| Dimensions | 485(wide) x 245(length) x 90(high) mm |
Converter Card Optical Technical Information
Model | Fiber | rate | Wavelength | distance | TX Power | Sensitivity | Link Budget |
OFS-DMR | multimode | 10/100M | 850 /1310nm | 2km | -20~-12dBm | -30dBm | 10dBm |
OFS -DSR -25 | singlemode | 10/100M | 1310nm | 25km | -15~-8dBm | -32dBm | 17dBm |
OFS -DSR -40 | singlemode | 10/100M | 1310nm | 40km | -8~-3dBm | -35dBm | 27dBm |
OFS -GMR | multimode | 10/100/1000M | 850nm | 224m/ 550m | -11~-5dBm | -18dBm | 7dBm |
OFS -GSR -20 | singlemode | 10/100/1000M | 1310nm | 20km | -9~-3dBm | -22dBm | 13dBm |
Order Information
Model | Product description |
OFS -RACK-16 | 16 Slots RACK for installing the most 16 sets of different types of
Media Converters Card with single or dual power supply |
OFS -DMR | 10/100M Multimode fiber Converter Card, the max distance of fiber
up to 2km, occupying one slot. |
OFS -DSR-xx | 10/100M Singlemode Converter Card, XX for the max distance of fiber
from 20 to 100 km, occupying one slot. |
OFS -GMR | 10/100/1000M Multimode Fiber Converter Card, the max distance up to
224 m for 50nm fiber, up to 550 m for 62.5nm fiber, occupying two
slots. |
OFS-GSR-xx | 10/100/1000M Singlemode Converter Card, XX for the max distance of
fiber from 20 to 100 km, occupying two slots. |
