8×1 Fiber Optic Ethernet Switch 100BASE - Fx 1 10 / 100BASE - Tx DF
SM 1310nm 20KM SC
Specifications
100M 8 SFP +1 RJ45 Ethernet Switch with eight SFP ports
1. Provides 8 SFP sockets
2. Supports VLAN and QoS
3. fast delievery

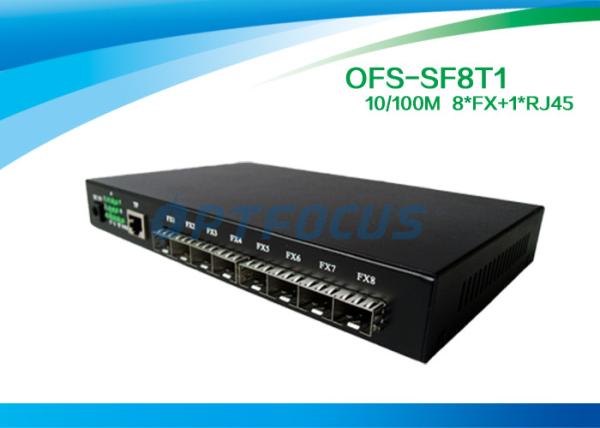

OFS-SF8T1
100M 8 SFP +1 RJ45 Ethernet Switch with eight SFP ports
OFS Serier 9 ports 100M Ethernet Switch has eight 100M SFP sockets
and one 10/100M UTP ports. Customer can choose different 100M SFP module according as his
demand, such as Multimode or Singlemode, Single fiber or Dual fiber and
Singlemode 20-100km etc. It is applicable to use in constructing of
Optical Fiber Ethernet network.
Main features
Provides 8 SFP sockets
The SFP slot supports 100M at full duplex.
Supports 802.3x flow control on full-duplex and Back-pressure flow
control on half-duplex.
Supports VLAN and QoS.
Supports Trunking function.
Support packet length up to 1600 Bytes
Low power consume (10W), low heat, and good reliability.
Store & forward, share memory, non-blocking architecture
Technical Specifications
| Standard compliance | IEEE802.3/u/z/ab, 1000Base-SX/LX |
| MAC address table | 8K |
| Frame buffer memory | 1MKb, With 20 Gbps switch fabric |
| Connector | SFP : 100Mbps |
| Cable | Multimode Fiber: 50/125,62.5/125μm (the max distance up to 224 / 550m) Singlemode Fiber: 8/125, 8.7/125, 9/125μm (the max distance up to 10~100 km) |
| Flow control | Full Duplex: IEEE802.3x flow control Half Duplex: back pressure flow control |
| LED | PWR,SFP1 Link/Act, SFP2 Link/Act, SFP3 Link/Act, SFP4 Link/Act, SFP5 Link/Act, SFP6 Link/Act, SFP7
Link/Act, SFP8 Link/Act |
| Power Requirement | AC220V(100-240V),50~60Hz; DC:5V,3A |
| Ambient Temperature | 0 ~ +50°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5% ~ 90% |
| Dimensions | 30(high)×127(width)×210(length)mm |
Application
Video monitoring application
Communications network applications
