    1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-PE-GSF1GT2DT8
    Certification : CE
    Price : negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal
    Supply Ability : 10000 Pieces per Month
    Delivery Time : 1-3 Working Days after Payment Received
    • Product Details
    • Company Profile

    1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch


    1310nm Managed Power Over Ethernet POE 20KM / Single Mode Fiber Switch 8 Port Poe Gigabit Switch

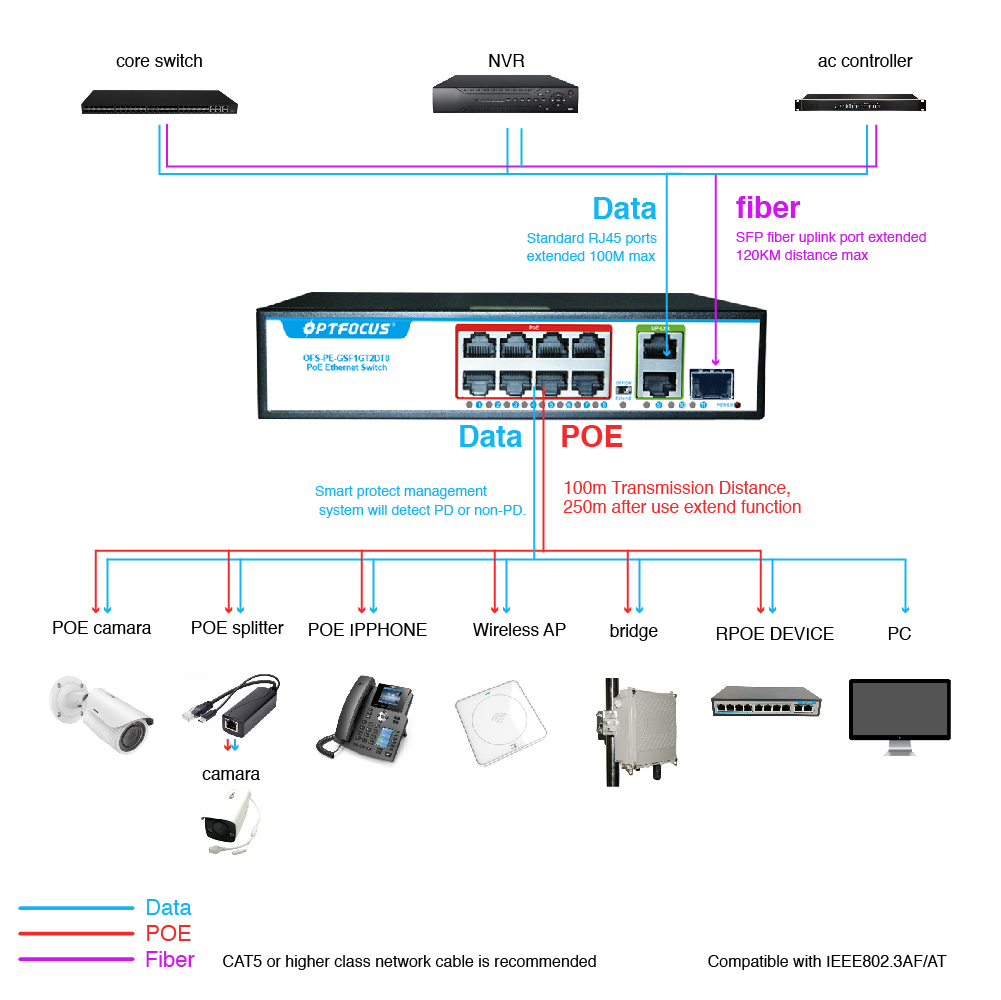

    The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

    The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.


    8*10/100mbps POE port,2*10/100/1000mbps UP-Link port,1*SFP

    100m Transmission Distance,250m after use extend function

    Compatible with IEEE802.3AF/AT

    Whole Power:120W(52V 2.3A)

    All port supported by MDI/MDIX auto flip and self negotiation

    Supply 8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.

    Each port max. power supply reached 30W.

    Low heat design, safe and reliable, high stability

    Application:² Wireless Access Point² IP Camera

    ² IP Phone² Computer Networks



    Product Name8 Port GIGABIT ACTIVE POE Switch(8+2+1)
    Product Model1011GB
    DATA PIN1/2+,3/6-
    Power Supply TypeBuild In, Both 1/2+,3/6- and 4/5+7/8-
    PoE Output Power15.4W/30W
    Connector8*10/100mbps POE port,2*10/100/1000mbps UP-Link port,1*SFP
    Network MediumCat5 (UTP) or more
    Technology
    Network Standards

    IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

    IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

    PoE power

    30W per port(IEEE802.3af/at).

    Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)

    Processing types

    Store-and-forward

    Half-duplex back pressure and IEEE 802.3x full-duplex flow control

    Address database Table Size2k MAC address
    Buffer memory48Kb embedded memory per unit
    Backboard Bandwidth7.6G
    Network LatencyLess than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
    Power
    Input52V DC input 110V-250V
    PoE power consumption15.4W per port(IEEE802.af)
    Overload current protectionPresent
    Mechanical
    CasingMetal
    InstallationDesktop/Rack mounting
    Interface
    LED Indicators

    System: Power, PoE Maximum power

    Per port: Link, Activity, Speed, PoE active, PoE error

    Environment specification
    Operating temperature-10-55℃(32-104℉)
    Storage temperature-40-70℃(14-158℉)
    Operating humidity90% maximum relative humidity, non-condensing
    Storage humidity95% maximum relative humidity, non-condensing
    Regulatory Approval
    ISOManufactured in ISO9001 facility
    SafetyCE/CCC
    Warranty2 years
    Dimensions202*140*45mm(L*W*H)
