Brand Name : | OPTFOCUS |
Model Number : | OFS-SCV-01Q |
Certification : | ROHS |
Price : | negotiated |
Payment Terms : | Western Union, T/T, L/C, Paypal |
Supply Ability : | 10000PCS/Month |
Delivery Time : | 5-8 days afterpayment received |

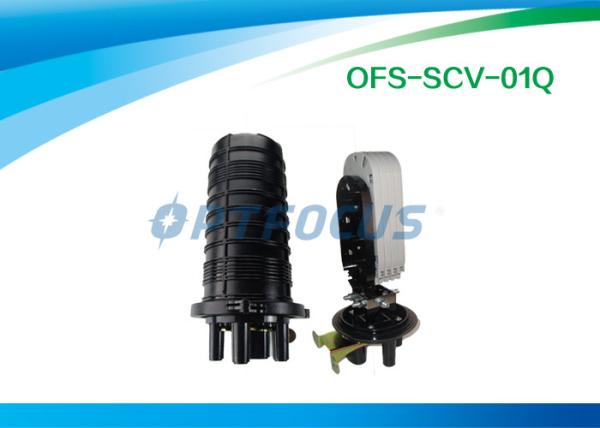

Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers Shrinkable Dome Type
Dome Shrinkable Seal Splice Closure
Features:
Applications
OFS-SCV-01Q Fiber Optic Splice Closure Datasheet
Model No. | Size (mm) HxD | Core capacity | Cable Ports (max) | Max diameter of cable (mm) | Weight (excluding outside box) |
OFS-SCV-01Q | 435*φ190 | 96 | 4 | Φ8mm~Φ25 mm | 2350 g— 2600g |
Main components
No. | Name of components | Quantity | Usage | Remarks |
1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter |
2 | Fiber optic splice tray (FOST) | Max. 6 trays (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
4 | Base | 1set | Fixing internal and external structure | |
5 | Plastic hoop | 1 set | Fixing between FOSC cover and base | |
6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
7 | Pressure testing valve | 1 set | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metal parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
![]() |
