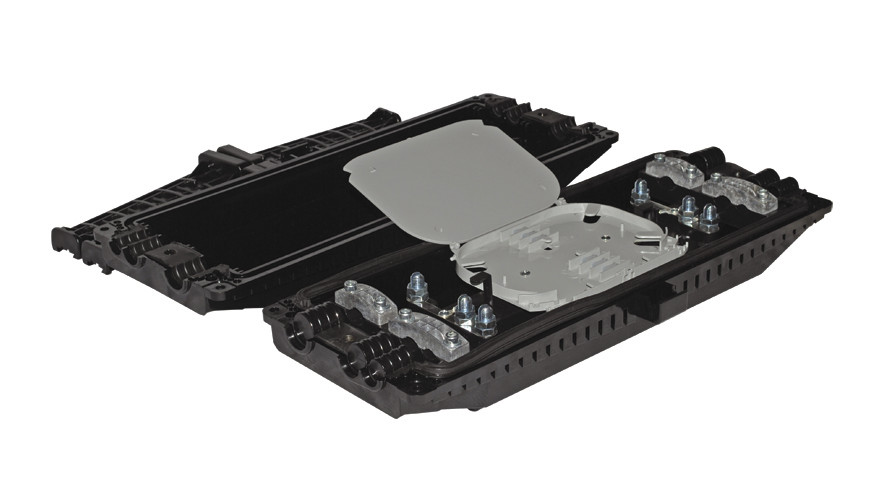

6 Port 12 Fibers Fiber Optic Enclosures 3 outlet 3 inlet Horizontal type
Horizontal Splice Closure
Excellent sealing performance,reusable. Protection grade is IP 68.
Features:
Applications
The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.
OFS-SCH-01E Fiber Optic Splice Closure Datasheet
Model No. | Size (mm) L×W×H | Core capacity | Cable Ports (max) | Max diameter of cable (mm) | Weight (excluding outside box) |
OFS-SCH-01E | 450x216x110 (mm) | 96-216 | 6 | Φ8—Φ23 (mm) (mm) | 2750g-3200g |
Main components
No. | Name of components | Quantity | Usage | Remarks | |
1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 378x136 (mm) | |
2 | Insert plate | 2 pairs | Fixing the housing | 175x56x30(mm) | |
3 | Fiber optic splice tray (FOST) | Max 4 pieces (either bunchy or ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:6,12,24(cores) Ribbon:3,6 (pieces) | |
4 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | ||
5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | ||
6 | Port plug | 6 pieces | Sealing empty ports | ||
7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement | |
8 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement | |
![]() |
