Mechanical Seal Fiber Optic Enclosures 12cores / PLC Network
Electrical Enclosures 4 Port
OFS-FTH-SM4
Description
The OFS-FTH-SM4 is a small size specialized designed for FTTx
application.
The product adopts fully-mechanical sealing structure. It can be used for Install PLC splitter application, as well as
passive optical fiber distribution.
Features
ü · Made from engineering plastic with high strength and
anti-corrosion.
ü ·Reinforce rebar on the body of closure make excellent performace
under impact, pulling, tension etc
ü ·Convenient to increase or reduce trays/ cassette for capacity
requirement
ü ·Spacious storing tray/ cassette for storing and maintainance
ü ·3 fixing item/designs to prevent fiber cable from external effect
ü ·Can be used from -40°C to +65°C temperature range
ü ·Easy to re-enter without tools
ü ·Intergrated seal, air tight and water proof, flame-retarded
ü ·Exquisite small size design, convenience installation application
ü · available 1 pcs of 1x8 or 1x16(LC duplex) splitter.
ü · Suitable for wall-mounting or pole mounting application
ü ·4 pcs of small round port
ü · suitable for mini module type of PLC splitter with SC connector
or LC connector, etc
ü · Sealing method: mechanical sealing type
Application
ü · FTTH, FTTB, FTTC
ü · Telecommunication Network
ü · CATV
ü · Local Area Network
Item No. | Dimension (D×H)mm | Cable Entry Ports | Cable Diameter mm | Max.Capacity (bunchy fiber) | No. of Tray | REMARK |
OFS-FTH-SM4 | Φ178×288 | 4 | 4 ports for Max. Φ16 | 12 | 1-2 | mechanical seal 1x8PLC (SC) |
Standard Accessories: one set of wrench, metal hoop, earthing wire, nylon tie, labeling
paper, splicing sleeves, sealing tape, insulation tape, emery
cloth, wrench for reinforce core, 1M buffer tubeOptional
Accessories: earthing device, air-pressure test valve
1,HHeight (295mmm) 2,IInside height(285mmm)

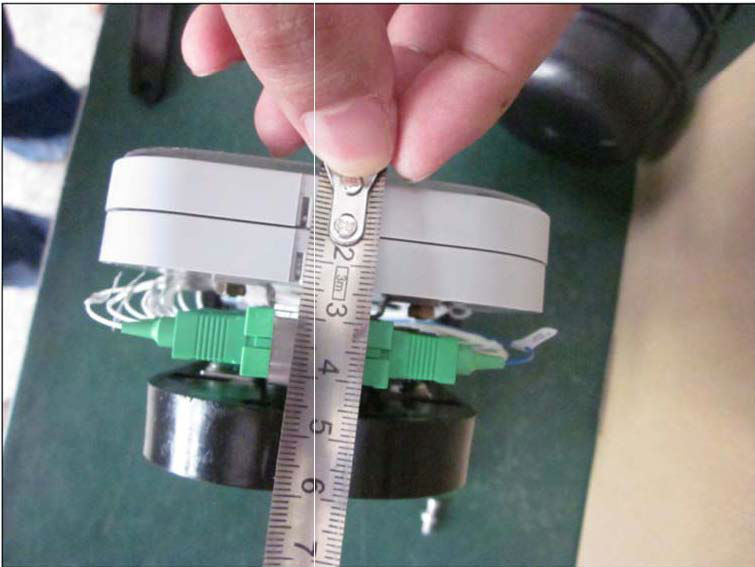

3,Splice tr ay width (91mm) 4,Splice tr ay height (1114mm)
5,Inside deepth(60m m) 6,IInlet hole(4ppcs φ5~φ18)
