8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure
3100g - 3800g
OFS-SCH-01J
Horizontal Splice Closure
Features:
l Excellent sealing performance, reusable. Protection grade is IP 68.
l Installation Method: wall-mounted, aerial, pipe-lined, manhole
l Feature:
l Easy in operation and good in practicality.
l Inner and external push button can insure good sealing,
requirements of cable torque, stretching, pressure, bending.
l Vulcanized sealing can meet the Φ8—Φ23 (mm) optical cable sealing
needs with excellent re-package performance.
l The ambient temperature ranges from -40 to +65°C.
Applications
The scope of application is: aerial, underground, wall-mounting,
wall-mounting in duct and handhold.

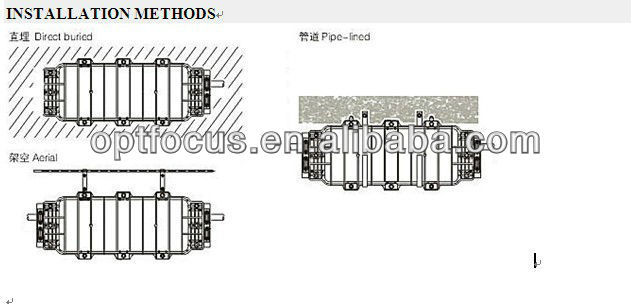

INSTALLATION METHODS
OFS-SCH-01J Fiber Optic Splice Closure Datasheet
Model No. | Size (mm) L×W×H | Core capacity | Cable Ports (max) | Max diameter of cable (mm) | Weight (excluding outside box) |
OFS-SCH-01J | 450x216x160 (mm) | 96 | 6 | Φ8—Φ23 (mm) (mm) | 3100g-3800g |
Main components
No. | Name of components | Quantity | Usage | Remarks |
1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 378x136 (mm) |
2 | Insert plate | 2 pairs | Fixing the housing | 175x56x30(mm) |
3 | Fiber optic splice tray (FOST) | Max 8 pieces (bunchy) or 6pcs ( ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
4 | Foundation | 1 set | Fixing reinforced core of fiber cable and fiber optic splice tray
(FOST) | |
5 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
6 | Port plug | 6 pieces | Sealing empty ports | |
7 | Pressure testing valve | 1 set | After injecting air it is used for pressure testing and sealing
testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in the FOSC for
earthing connection | Configuration as per requirement |
2.3 Main accessories and special tools
No. | Name of accessories | Quantity | Usage | Remarks |
1 | Heat shrinkable protective sleeve | | Protecting fiber splices | Configuration as per capacity |
2 | Nylon tie | | Fixing fiber with protective coat | Configuration as per capacity |
3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
5 | Hanging hook | 1 set | For aerial use | |
6 | Earthing wire | 1 piece | Putting through between earthing device | |
7 | Abrasive cloth | 1 piece | Scratching fiber cable | |
8 | Labeling paper | 1 piece | Labeling fiber | |
9 | Special Wrench | 3 pieces | Fixing bolts and tightening nut of reinforced core | |
10 | Measuring paper | 1 piece | To measure circle, of which its diameter is enlarged with seal tape | |
11 | Buffer tube | To be decided by customers | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
12 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | |
