1×32 2×32 Mini Fiber Wall Mount Optical Enclosures IP68 Network Black

1×32 2×32 Mini Fiber Wall Mount Optical Enclosures IP68 Network Black

OFS-FTH-JM5

1.1 Brief introduction

OFS-FTH-JM5 type of Fiber Optic Splice Closure (FOSC) is a member of dome series. The function of the product is in the optical transmission link, to provide various types of fiber optic cable through, branching, and related connecting protection, IP safety rate is IP68. It can be installed 1x2: 32 PLC splitter or 2x2: 16 PLC splitter. This model has four small round ports and one large round port. The sealing component is made from vulcanized rubber. The sealing method adopts screw pressure. This model is suitable for different methods of branch connection, including branching of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground application. This model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

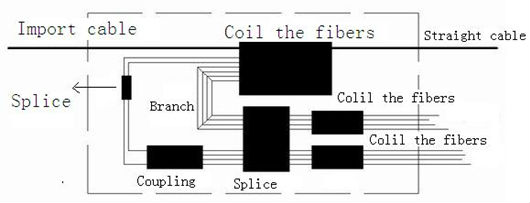

1.2 Product theory chart

1×32 2×32 Mini Fiber Wall Mount Optical Enclosures IP68 Network Black
Internal theory chart of Outdoor optical splitter modules

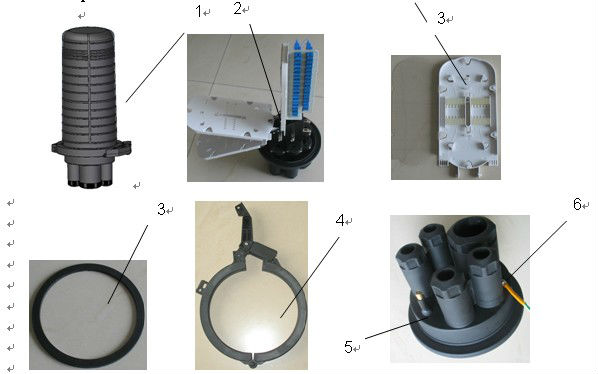

Product pictures

1. Cover; 2. Fiber splice tray; 3. Sealing ring; 4. Plastic hoop; 5. Base; 6. Earthling device

1.4 Main components

Item	Name	Quantity	Application	Remark
1	Cover	1 pc	Integrated protection of closure
2	Fiber splice tray	required	Fix the fiber, protect heat shrink tube, storage fiber and splitter
3	PLC splitter(2:32 in max)	2:32(1 pc) 2:16(2 pc)	Light splitting	Optional part
4	SC adapter	36 pcs	Connection	Optional part
5	SC-1.5m pigtail	32 pcs	Fusion with inlet cable	Optional part
6	Base	1 set	Fix the internal and external structure
7	Plastic hoop	1 set	Fix the base and cover
8	Sealing ring	1 set	Big sealing part for sealing cover and base, different small sealing parts for fiber sealing
9	Plastic plug	4 pcs	For non cable entry sealing
10	Valve	1 set	Gas-filled test air pressure and the sealing performance	Optional part
11	Earthling device	1 set	Leading the internal mental components to grounding	Optional part

Note:

When customers choose to install splitter by themselves, please refer to the below contents to configure the pigtail length of splitter input port and output port.

Pigtail length of splitting output port (+2 cm)	Pigtail length of splitting output port (+2 cm)
Pigtail length of splitting output port (+2 cm)	1-8	9-16	17-24	25-32
135 cm	85 cm	90 cm	95 cm	100 cm

The installation arrangement of pigtail for splitter input port and output port
