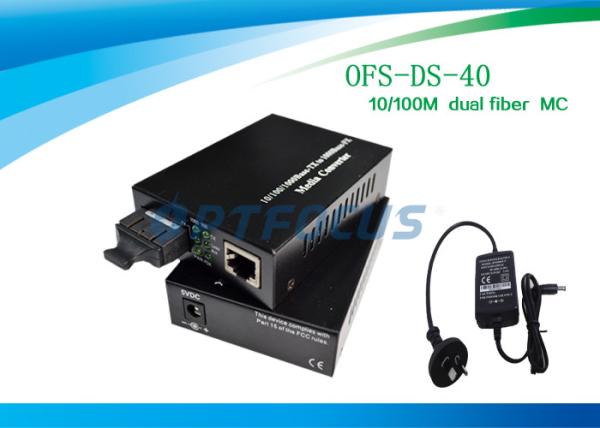

    Gigabit Media Converter SM 10 / 100M 1310nm 40Km SC , External Power

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-DS-40
    Certification : CE, FCC
    Price : negotiated
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 30000 Pieces per Month
    Delivery Time : 3-5 working days after received your payment
    • Product Details
    • Company Profile

    Gigabit Media Converter SM 10 / 100M 1310nm 40Km SC , External Power

    Fiber Media Converter SM 10 / 100M 1310nm 40Km SC , External Power

    Specifications


    Name : External Power Media Converter
    Fiber type: Multimoede , singlemode
    Connector: ST,SC. FC, SFP

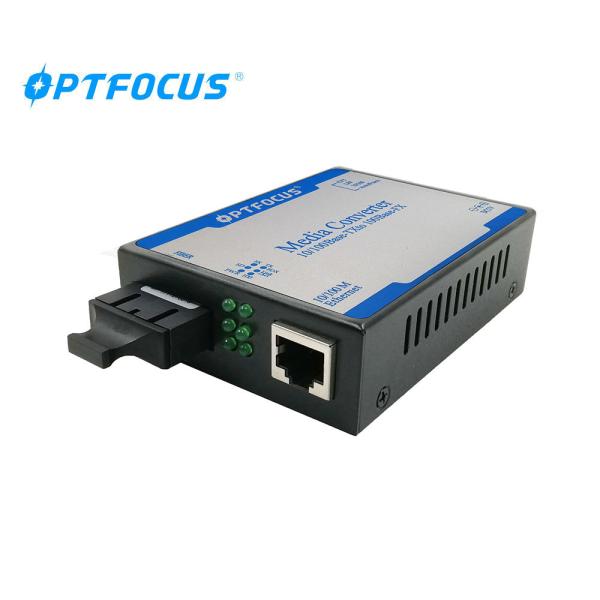

    10/100M Ethernet Fiber Media Converters


    OFS series Fiber Media Converters can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).


    It can extend traditional 10/100M fast Ethernet to the distance of 120km through optical fiber link. It possesses stable performance and good quality by adopting latest IC packages from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe network operation.


    Technical Specifications


    Operating standardsIEEE802.3u,10/100Base-TX and 100Base-FX
    MAC addresses table1K
    Data bufferBuilt-in 128Kbyte RAM
    Cable

    UTP: Cat. 5 (the max distance up to 100m)

    Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)

    Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km)

    Flow Control

    Full Duplex: Supporting standard IEEE802.3x

    Half Duplex: back pressure

    LEDPower, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act
    Power RequirementAC 170 ~ 240V, DC 5V
    Ambient Temperature0 ~ 70°C
    Humidity5 ~ 90%
    DimensionsInternal power: 30×110×140mm
    External power26×70×93mm

    OFS series external power supply Converters could be used alone, or inserted to 14 slots Converters Rack supplied by OFS Crop. suitable for the use of Network Centre.

    Fiber Optic Information


    Type

    Connector

    Fiber type

    Wavelength

    Max. distance

    TX power

    Sensitivity

    Link Budget

    OFS-DM-2

    ST/SC

    multimode

    850/1310nm

    2km

    -20~-12dBm

    -30dBm

    10dBm

    OFS-DM-5

    SC

    multimode

    850/1310nm

    5km

    -13~-8dBm

    -30dBm

    17dBm

    OFS -DS-25

    SC

    singlemode

    1310nm

    25km

    -14~-8dBm

    -32dBm

    18dBm

    OFS -DS-40

    SC

    singlemode

    1310nm

    40km

    -8~-3dBm

    -33dBm

    25dBm

    OFS -DS-60

    SC

    singlemode

    1310nm

    60km

    -3~0dBm

    -36dBm

    33dBm

    OFS -DS-80

    SC

    singlemode

    1550nm

    80km

    -10~-5dBm

    -35dBm

    25dBm

    OFS -DS-100

    SC

    singlemode

    1550nm

    100km

    -5~0dBm

    -36dBm

    31dBm

    OFS -DS-120

    SC

    singlemode

    1550nm

    120km

    0~3dBm

    -36dBm

    36dBm


    Order Information


    Model

    Product description

    OFS-DM

    10/100M multimode Media Converter, the max optical fiber distance up to 2/5 km.

    OFS-DS-xx

    10/100M singlemode Media Converter, max fiber distance from 20 to 120 km, xx for the amount of distance.
