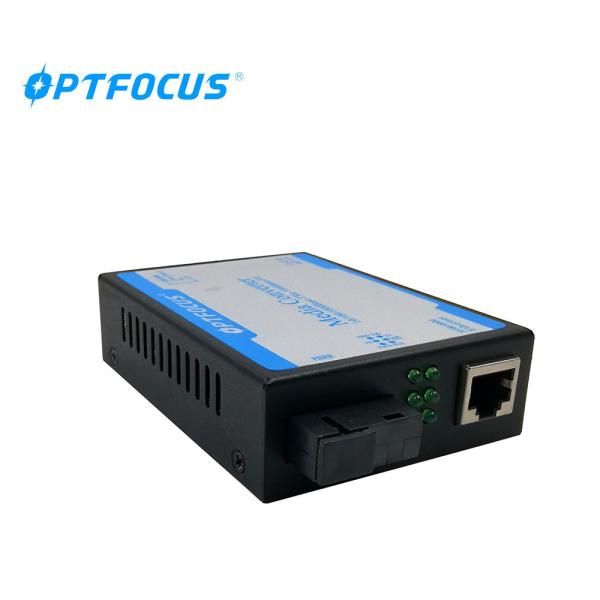

SC Single Ethernet Fiber Optic Converter 1310nm 1550nm SM 60KM
10/100M Singlemode Single Fiber Media Converter --- OFS-WS01/02-60
OFS-WS01/02 series 10/100M Singlemode Single Fiber Media Converter
can convert Optical－Electric Ethernet signals between 10/100M UTP
interface (TX) and 100M optical fiber interface (FX).
It could extend traditional 10/100M Fast Ethernet to the distance
of 90km through single optical fiber link. It possesses stable
performance and good quality by adopting latest IC from USA and
Taiwan. It must be used in couples,because the transmitted optical
differs from the receive optical in wavelength.
6 Group LED indicated lights could fully monitor the working
conditions of Converters. It is easy for users to observe network
operation.
Main features
◆ The UTP port supports MDI/MDI-X auto crossover.
◆ The transmission of a channel optical signals can be completed by
single fiber. It has doubled in quantity of fiber data transmission
compared with twin fiber type.
◆ Auto negotiation function allows UTP port to auto select 10M or
100M and Full Duplex or Half Duplex
◆ Supporting 1600 bytes packet for management.
◆ Internal circuit of prevented thunder could greatly reduce damage
of converters caused by thunderbolt induction.
◆ Indicator function of link fault (LFP): When optical fiber is at
fault, the converter could stop all the link.
◆ Converter working mode could be chosen: Store and forward switch
mode, Modified cut-through switch mode, or Converter mode.
Fiber Optic Information
| Type | connector | Max distance | Wavelength | TX power | Sensitivity | Link Budget |
| OFS-WS01/02-20 | SC/FC/ST | 20km | 1310/1550nm | -14~-6dBm | -32dBm | 18dBm |
| OFS-WS01/02-40 | SC/FC/ST | 40km | 1310/1550nm | -8/-9~-3dBm | -35dBm | 27/26dBm |
| OFS-WS01/02-60 | SC/FC/ST | 60km | 1310/1550nm | -5/-7~0dBm | -37dBm | 32/30dBm |
| OFS-WS01/02-80 | SC/FC/ST | 80km | 1310/1550nm | -3/-5~2dBm | -37dBm | 34/32dBm |
Technical Specifications
| Operating standards | IEEE802.3u,10/100Base-TX and 100Base-FX |
| MAC addresses table | 1K |
| Data buffer | 128K |
| Connectors | UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps |
| Cable | UTP: Cat. 5 UTP cable (the max distance up to100m) |
| Fiber ( Singlemode) | 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km) |
| Flow Control | Full Duplex: IEEE802.3x Half Duplex: back pressure |
Order Information
Model | Product description |
OFS WS01/02 -xx | 10/100M Singlemode Single Fiber Converters must be used and orderd
in couples. One set of WS01 must be connected with another set of WS02 for
using. WS01 transmitted optical wavelength 1310nm, receive optical
wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical
wavelength 1310nm. The max distance of fiber is up to 20, 40, 60, 80 ,100,120km. XX is
the amount of distance. |
