    2 Port Gigabit Sfp Ethernet Fiber Optic Switch 3 Watt For Connecting Devices

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-SF1T2-20
    Payment Terms : T/T
    Supply Ability : 5000 pieces per one week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    2 Port Gigabit Sfp Ethernet Fiber Optic Switch 3 Watt For Connecting Devices

    Durable 10 / 100M Fiber Optic Switch 1FX SM 1310nm 20KM and 2TX ports


    Product Description

    Technical itemsDescription
    Product Name2-port 10/100Mbps + 1-port 100Mbps Fiber
    Product ModelOFS-SF1T2-20
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;
    Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    Fiber MediaMulti-mode: 2KM
    Single-mode: 20/40/60/80/100KM
    Fiber port :SC/ST/FC Optional
    Performance SpecificationBandwidth: 1Gbps
    Packet Buffer Memory:1M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table:1K
    Forwarding ModeStore-and-Forward
    LED IndicatorsPower: PWR; FX Link;TP 100 ;TP Link/Act
    Power SupplyInput: AC100 ~ 250V,
    Output:DC5V 2A.
    Max power3W
    Environment temperature0 ~ +55℃
    Storage temperature-20 ~ +70℃
    Humidity5% ~ 90%
    Dimensions26 × 70 × 93mm
    InstallationDIN-Rail or Wall mounts,Optional,Default device is not
    Packing List1× Switch
    1×User Manual/Certificate of quality/Warranty card
    1×power adapter
    MTBF100,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing weight: 1.1 KG
    Product size (L×W×H): 140mm×93mm× 28mm

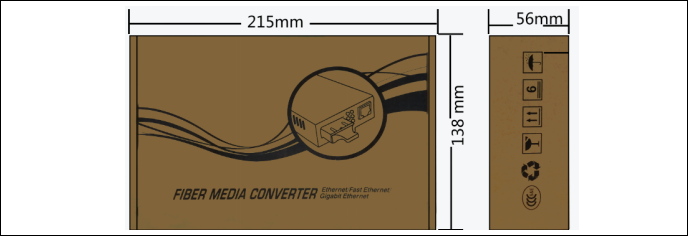

    Packing size(L×W×H): 215mm×138 mm× 56mm
    Warranty1-years

    Feature:

    • 2 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps Fiber port.
    • Automatic MAC address learning and aging
    • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
    • LED indicators for monitoring power/link/activity
    • Supports10/100Mbps-Full/Half-duplex
    • Supports Wall-mount and DIN-Rail installation ,Optional.
    • Supports Broadcast Storm Control
    • Excellent heat elimination without cooling fan.
    • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
    • Harsh environment or higher requirement
    • -10℃-55℃operating temperature range.

    Product Exhibition


    Most popular & high quality 16-port 10/100Mbps + 1-port 1000Mbps SFP Fiber Switch






    Application
