    Multi Ports Fiber Optic Switch 1000 Base - X With Redundant Dual DC Power Inputs

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-GSF1DT16-20
    Payment Terms : T/T
    Supply Ability : 5000 pieces per one week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Multi Ports Fiber Optic Switch 1000 Base - X With Redundant Dual DC Power Inputs

    Multi ports 1000Base-X Fiber Optic Switch 10 / 100M 16TX + 1*1000M FX


    Product Description

    Technical itemsDescription
    Product Name16-port 10/100Mbps + 1-port 100Mbps Fiber
    Product ModelOFS-GSF1DT16-20
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
    Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    Fiber MediaMulti-mode: 2KM
    Single-mode: 20/40/60/80/100KM
    Fiber port :SC/ST/FC Optional
    Performance SpecificationBandwidth: 5Gbps
    Packet Buffer Memory:1M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table:4K
    Forwarding ModeStore-and-Forward
    LED IndicatorsPower: PWR; Link; ; Link/Act
    Input voltage rangeDC5~15V
    Power Supply external PSInput: AC100 ~ 250V, Output:DC5V 2A;
    Max power8W
    Environment temperature0 ~ +55℃
    Storage temperature-20 ~ +70℃
    Humidity5% ~ 90%
    InstallationDIN-Rail or Wall mounts,Optional,Default device is not
    Packing List1× Switch
    1×User Manual/Certificate of quality/Warranty card
    1×power adapter
    MTBF100,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing weight: 1.1 KG

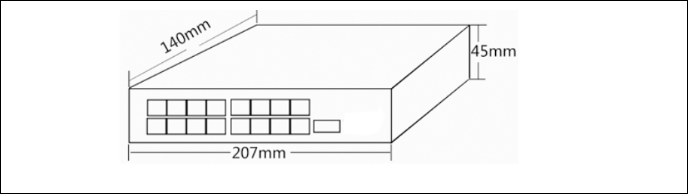

    Product size (L×W×H):207 mm×140mm× 45mm
    Packing size(L×W×H): 300mm×230 mm× 95mm
    Warranty1-years

    Feature:

    • 16 Port 10/100Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber port.
    • Automatic MAC address learning and aging
    • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
    • LED indicators for monitoring power/link/activity
    • Supports10/100Mbps-Full/Half-duplex
    • Supports Wall-mount and DIN-Rail installation ,Optional.
    • Supports Broadcast Storm Control
    • Excellent heat elimination without cooling fan.
    • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
    • Harsh environment or higher requirement
    • Redundant dual DC power inputs
    • -10℃-55℃operating temperature range.

    Product Exhibition


    Most popular & high quality 16-port 10/100Mbps + 1-port 1000Mbps SFP Fiber Switch







    Application
