    Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFSG3508
    Payment Terms : T/T
    Supply Ability : 5000 pieces per one week
    Delivery Time : 5-7 working days
    Certification : CE ISO
    • Product Details
    • Company Profile

    Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance

    High reliable FTTH GPON OLT 8*GPON+4GE RJ45+4*10GE SFP

    Product Description

    Technical itemsDescription
    PORTS8*PON interface, SC single-mode/single-fibre,1.25Gbps;
    4*10/100/1000Mbps RJ45
    4*SFP+
    WavelengthTx 1310nm, Rx 1490nm
    Farthest distance20km between OLT and ONU
    StandardIEEE802.3ah
    IEEE 802.1D, Spanning Tree
    IEEE 802.1Q, VLAN
    IEEE 802.1w, RSTP
    IEEE 802.3ad, LACP
    Ethernet – II, Ethernet-SNAP
    IEEE 802.3ad VLAN Stacking( Q in Q)
    VLNA4K VLAN table items
    VLAN based on port, MAC, protocol and IP subnet.
    port QinQ and flexible QinQ (StackVLAN)
    VLAN Swap and VLAN Remark
    GVRP
    t the addition, deletion and replacement of VLAN based on ONU
    business flow.
    ManagementSupport for command line interface (CLI), Console port,
    maintenanceTelnet and WEB configuration management.
    IGMPv1/v2/v3.STP/RSTP/MSTP.ACL.
    QoS.SNMPv1/v2/v3
    power supplyAC:90~260V,47~63Hz
    DC:-36V~-72V ;Optional dual power supply
    Power consumption≤25W
    Operating conditionOperating temp: -5~+55℃
    Operating humidity:10~90%(non-condensed)
    Storing conditionStoring temp: -30~+60℃,Storing humidity:10~90%(non-condensed)
    Dimension442mm*300mm*44mm(length*width*height)
    Net weight

    1.84KgP

    Feature:

    • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
    • China Telecom / China Unicom GGPON interoperability standards
    • Support for the transmission distance of 20Km on a single root fiber
    • Supporting 64 terminals of passive optical splitter on single optical fiber
    • Support 128Bits up and down three churning encryption functions
    • Support ONU terminal legitimacy authentication, illegal ONU registration events reported
    • DBA algorithm supporting dynamic bandwidth allocation, granularity 64Kbit/s
    • Support standard OAM and extended OAM management functions
    • Support ONU software batch upgrade, timing upgrade, real-time upgrade support PON port luminous power, accept optical power detection
    • Support for command line interface (CLI), Console port, Telnet and WEB configuration management.
    • Support EAPS and GERP enhanced Ethernet ring network protocol (loop healing time <50ms) support.

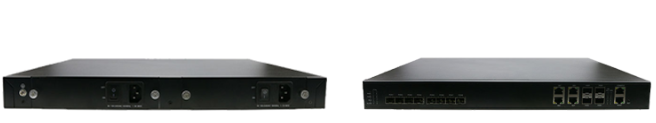

    Product Exhibition


    Most popular & high quality 8*GPON+4GE RJ45+4*10GE SFP+ OLT FTTH optic terminal
