    Broadcast Storm Controlled Industrial Ethernet Switch Redundant Dual DC Power Inputs

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-IGSF2DT8
    Payment Terms : T/T
    Supply Ability : 5000 pieces per one week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Broadcast Storm Controlled Industrial Ethernet Switch Redundant Dual DC Power Inputs

    8-10/100m ethernet Port Hardened Industrial Ethernet Switch with 2ports SFP


    Product Description

    Technical itemsDescription
    Product Name8-port 10/100Mbps + 2-port 1000Mbps SFP Fiber
    Product ModelOFS-IGSF2DT8
    Interface8*10/100Base-T port + 2*1000Mbps SFP Fiber
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
    IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X;
    Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    Fiber MediaMulti-mode: 2KM
    Single-mode: 20/40/60/80KM
    Performance SpecificationBandwidth: 6Gbps
    Packet Buffer Memory:2M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table: 16K
    Packing List1×Industrial Switch (plus terminal block)
    1×User Manual/Certificate of quality/Warranty card
    1×DIN-Rail mounting kit
    Forwarding ModeStore-and-Forward
    ProtectionLightening protection, IP40 protection
    LED IndicatorsPower: PWR; Link;speed 100 ; Link/Act
    Power SupplyInput Voltage: DC52V (48~57V) /Terminal block
    Operating temperature-40 ℃ ~ +85 ℃
    Storage temperature:-40 ℃ ~ +85 ℃
    Relative humidity5~95% (no frost)
    Industry StandardFCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
    IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air)
    IEC6100-4-3 (RS): 10V/m (80MHz-2GHz)
    IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
    IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
    IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
    IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
    ShellIP40 protect grade, metal shell
    InstallationDIN-Rail or Wall mounts
    CertificationCE mark, commercial; FCC Part 15 Class B; VCCI Class B
    EN 55022 (CISPR 22), Class B
    MTBF300,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing Weight: 1.1 KG

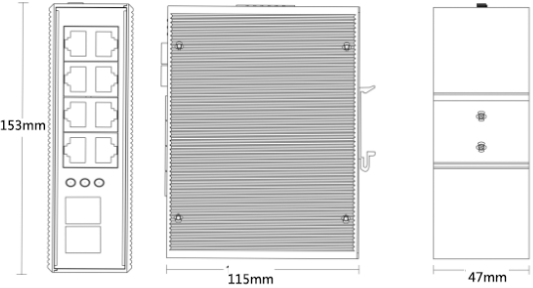

    1.5Product size (L×W×H): 15.3cm× 11.5cm× 4.7cm
    Packing size(L×W×H): 216mm× 206mm× 67mm
    Warranty5-years

    Feature:

    • 8 Port 10/100Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
    • Automatic MAC address learning and aging
    • Automatically support IGMP (Multicasting)
    • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
    • LED indicators for monitoring power/link/activity
    • Supports 10/100Mbps-Full/Half-duplex
    • Supports Wall-mount and DIN-Rail installation for lightning protection
    • Supports Daisy-Chain connection
    • Supports Broadcast Storm Control
    • Supports Relay output for power failure
    • Super lightening protection, IP40 protection.
    • Excellent heat elimination without cooling fan.
    • Redundant dual DC power inputs.
    • Redundant Power Inputs
    • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
    • Harsh industrial environment or higher requirement
    • -40℃-85℃operating temperature range.

    Product Exhibition


    Most popular & high quality 2 port 1000Mbps SFP + 8 port 10/100Mbps Industrial fiber Switch






    Application
