    Relay Output Power Over Ethernet Switch With 10 / 100Mbps Auto - Negotiation

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-PE-SF1T2
    Payment Terms : T/T
    Supply Ability : 5000 piece per one week
    Delivery Time : 5-7working days
    • Product Details
    • Company Profile

    Relay Output Power Over Ethernet Switch With 10 / 100Mbps Auto - Negotiation

    Anomaly link detection unmanaged Power Over Ethernet POE Switch 2-4 port 10 / 100M for ip cameras


    Product Description

    Technical itemsDescription
    Product Name2-port 10/100Mbps + 1-port 100Mbps SFP Fiber
    Product ModelOFS-PE-SF1T2
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;
    Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    Fiber MediaMulti-mode: 2KM
    Single-mode: 20/40/60/80KM
    Performance SpecificationBandwidth: 1Gbps
    Packet Buffer Memory:1M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table:1K /port
    PoE SpecificationPoE Standard: IEEE802.3af/ IEEE802.3at
    PoE ports: 2 port support PoE
    Power Output:
    Max. 15.4 watts (IEEE 802.3af)
    Max. 30 watts (IEEE 802.3at)
    PoE port Auto detect AF/AT devices
    Output Voltage: DC48V
    Power Pin Assignment:4/5+;7/8-
    Power Type: End-span( Mid-span optional)
    Forwarding ModeStore-and-Forward
    LED IndicatorsPower: PWR; Link;POE ; Link/Act
    Power SupplyInput Voltage: DC52V (48~55V)
    Working EnvironmentWorking temperature: -10~55℃ ; Storage temperature: -20~75℃
    Relative Humidity: 5%~95 %( no condensation)
    InstallationDIN-Rail or Wall mounts,Optional,Default device is not
    Packing List1× Media Converter
    1×User Manual/Certificate of quality/Warranty card

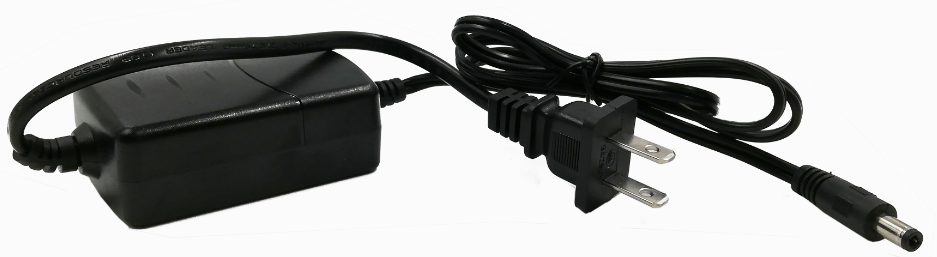

    1×power adapter
    MTBF100,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing weight: 1.1 KG
    Product size (L×W×H): 93mm× 70mm× 26mm
    Packing size(L×W×H): 215mm×138 mm× 56mm
    Warranty1-years

    Feature:

    • 2 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps SFP Slot
    • 2 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)

    • Automatic MAC address learning and aging

    • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X

    • LED indicators for monitoring power/link/activity

    • Support 10/100M/bps Auto-negotiation, auto-MDI-MDI-X

    • Supports Wall-mount and DIN-Rail installation ,Optional.

    • Supports Broadcast Storm Control

    • Supports Relay output for power failure

    • Excellent heat elimination without cooling fan.

    • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

    • Harsh environment or higher requirement

    • -10℃-55℃ temperature range.

    Product Exhibition


    Most popular & high quality 2ports 100M PSE + 1ports 100M SFP Fiber Optical Ethernet switch





    Application
