Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset

    Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers

    Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers
    • Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers
    • Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers
    • Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers
    • Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers
    • Buy cheap Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset from wholesalers

    Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFSG611
    Payment Terms : T/T
    Supply Ability : 5000 piece per one week
    Delivery Time : 5-7working days
    Certification : CE ISO
    • Product Details
    • Company Profile

    Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset

    Well compatible ZTE chipset GPON ONU 1GE Ethernet + 1 PON SC / UPC


    Product Description

    Technical Specifications


    Technical itemsDescription
    Optical property
    Upstream PON1 GPON interface, SC single-mode/single-fibre,
    interfacesymmetric 1.25 Gbps
    Farthest distance20km between OLT and ONU
    Optical interfaceSC/UPC connector
    Downstream LAN1*10/100/1000Mbps auto adaptive Ethernet interfaces,
    interfaceFull Duplex/Half Duplex, RJ45 connectors
    Power consumption≤2.5W
    DC power supply+12V, external AC-DC power adaptor
    Layer 2/3 switchSupport IEEE802.1Q VLAN
    Support speed rate inhibition of broadcast packet at ONU
    IEEE 802.3X flow control
    Support 16 multicast addresses at each LAN port
    Security strategySupport AES-128,data encryption for both upstream
    and downstream
    Support dynamic update of key
    ManagementCentralized OLT management based on OAM
    maintenanceWEB,CLI
    Upgrade software remotely
    Hardware information
    Indicators4 indicators, for status of power supply, PON port and 1
    Giga-Ethernet port.
    DC power supply+12V, external AC-DC power adaptor
    Chipsetzte chipset
    Operating humidity10~90%(non-condensed)
    Operating conditionOperating temp: -5~+55℃
    Operating humidity:10~90%(non-condensed)
    Storing conditionStoring temp: -30~+60℃
    Storing humidity:10~90%(non-condensed)

    Most popular & high quality FTTH 1GE Ethernet ports GPON ONU for office use



    Feature:

    • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

    • Support triple churning encryption request

    • Support DBA reporting mechanism request

    • Support OAM remote configuration maintenance function

    • Support the remote upgrade and download

    • Support status detection and fault report

    • Support to configure the work mode at the user port.

    • Support data encryption and decryption

    • Support 802.1Q VLAN

    • Support rich QinQ VLAN functions and IGMP Snooping

    • Support traffic rule to modify the related priority.

    • Support LED indication

    • Support to restore the factory settings

    • Support the remote reset and reboot

    • Support dying gasp outage alarm

    • Fully compatibility with OLT based=on=Broadcom/PMC/Cortina chipset.

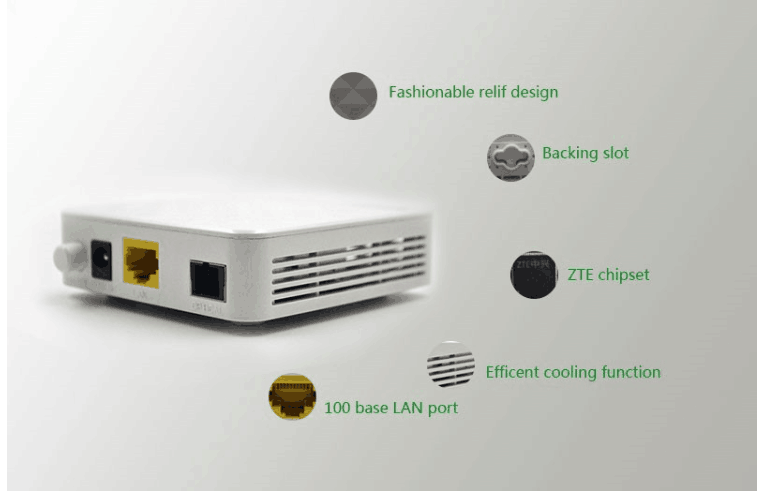

    Physical Pic Reference :


    Well Compatible GPON EPON 1GE Ethernet ZTE Chipset With Remote Reset

    Chassis Dimension:

    Package Dimension:

    Here is package box dimension of 1 port EPON ONU for your reference.

    size for 1 port EPON ONU: 185x110x40mm


    Power Supply Standard:


    Application
