    Multifunctional Integrated EPON ONU 1GE + 3FE Compatible With Fiberhome OLT

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFSE624
    Payment Terms : T/T
    Supply Ability : 5000 piece per one week
    Delivery Time : 5-7working days
    Certification : CE ISO
    Price : $12 usd - $16.5 usd
    • Product Details
    • Company Profile

    Multifunctional Integrated EPON ONU 1GE + 3FE Compatible With Fiberhome OLT

    Multifunctional integrated application ftth EPON ONU 1GE+3FE compatible with Huawei, Fiberhome OLT

    Product Description


    Most popular & high quality FTTH 1GE Ethernet ports with WiFi EPON ONU for office use


    Technical Specifications

    Technical itemsDescription
    Upstream PON interface1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps
    Farthest distance20km between OLT and ONU
    Optical interfaceSC/UPC connector

    LAN 4/3/2/1 port

    RJ45 port connectors to local internet, 1GE port and 3FE port automatically
    Layer 2/3 switch

    Support IEEE802.1Q VLAN

    Support speed rate inhibition of broadcast packet at ONU

    IEEE 802.3X flow control

    Support 16 multicast addresses at each LAN port

    Security strategy

    Support AES-128,data encryption for both upstream and downstream

    Security strategy

    Support dynamic update of key

    Management maintenanceCentralized OLT management based on OAM
    WEB,CLI
    Upgrade software remotely
    Hardware information
    Indicators

    7 indicators, for status of power supply, PON port and 4 Ethernet port.

    DC power supply+12V, external AC-DC power adaptor

    Power consumption

    ≤2.5W

    Chipsetzte chipset
    Operating conditionOperating temp: 0~+60℃
    Operating humidity:10~85%(non-condensed)
    Storing conditionStoring temp: -40~+80℃
    Storing humidity:5~95%(non-condensed)

    Feature:

    • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

    • Completely compatible with EPON international standard IEEE802.3ah/802.3-2005

    • Support China Telecom EPON CTC3.1 standard and expand OAM

    • Support triple churning encryption requested by China Telecom

    • Support DBA reporting mechanism requested by China Telecom

    • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah

    • Support the remote upgrade and download

    • Support status detection and fault report

    • Support to save configured parameters if power down

    • Support to configure the work mode at the user port

    • Support MDI-MDIX automatic-detection at the user port.

    • Support data encryption and decryption

    • Support access authentication based on serial number

    • Support access authentication based on MAC address

    • Support 802.1Q VLAN

    • Support rich QinQ VLAN functions and IGMP Snooping

    • Support traffic rule to modify the related priority.

    • Support LED indication

    • Support to restore the factory settings

    • Support the remote reset and reboot

    • Support dying gasp outage alarm

    • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

    Physical Pic Reference :

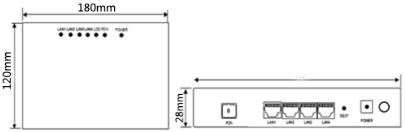

    Chassis Dimension:

    Package Dimension:

    Here is package box dimension of 1 port EPON ONU for your reference.

    size for 1 port EPON ONU: 185x110x40mm

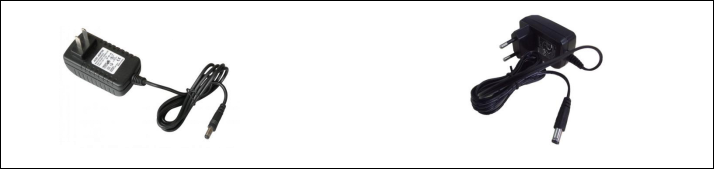

    Power Supply Standard:

    Application
