    SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-GASS-1
    Payment Terms : T/T
    Supply Ability : 5000 pieces per one week
    Delivery Time : 5-7working days
    • Product Details
    • Company Profile

    SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface

    Durable unmanaged 1000 Mbps Gigabit SFP slot Mini media converter with 10/100/1000M RJ45 interface

    Product Description

    Technical Specifications


    Technical itemsDescription
    Product Name10/100/1000M Media Converter
    Product ModelOFS-GASS-1
    ConnectorFiber: 1* 1000Mbps, SFP
    RJ45: 1*10/100/1000Mbps, Auto MDI/MDI-X
    Network Media10BASE-T: Cat3 ,4 ,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    1000BASE-TX: Cat6 or later UTP(≤100 meter)
    Fiber MediaFiber (Multimode): 50/125 , 62.5/125μm (the max distance up to 2km or 5km)
    Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
    Forwarding ModeStore-and-Forward
    Forwarding Rate1488000pps/port
    Operating standardEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab IEEE802.3x
    external PowerInput:AC 100~250VOutput:DC 5V 1A ,(default)
    or Input:DC:-36V~-72V; Output:DC 5V 1A (Optional)
    Power consumption2.5W
    LEDPower, Link/Act, TX 1000, 100, FDX, Link/Act.
    Working EnvironmentWorking temperature: -10~55℃;
    Storage temperature: -20~75℃
    Relative Humidity: 5%~95 %(no condensation)
    InstallationDIN-Rail or Wall mounts ,Optional ,Default device is not
    Packing List1× Media Converter
    1×User Manual/Certificate of quality/Warranty card
    1×power adapter
    MTBF100 ,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing weight: 1.1 KG

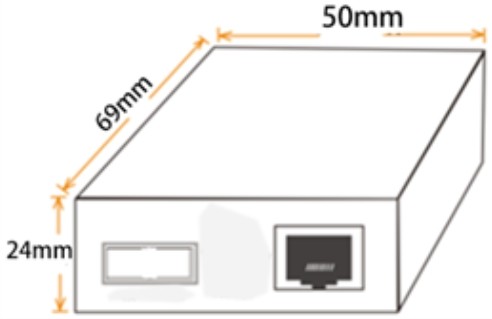

    Product size (L×W×H): 69*50*24mm

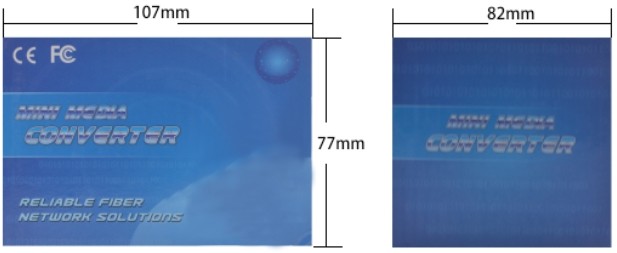

    Packing size(L×W×H): 107mm*77mm*82mm
    Warranty1-years

    DIP Switch:
    SW1ONEnable LFP
    OFFDisable LFP
    SW2ONCut-through
    OFFStore-and-Forward
    SW3ONtraffic control on
    OFFtraffic control off
    SW4ON100M
    OFF1000M

    Features:

    • 1 Port 10/100/1000Mbps with Auto Uplink TM , 1 port 1000Mbps SFP


    • 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X

    • Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard

    • Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex

    • Supporting 1552 bytes packet

    • Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

    • Data Transfer Rate:

     - TP: 10/100/1000Mbps
     - FX: 1000Mbps

    • Duplex mode support:

    - Full or half-duplex mode by Auto-Negotiation (TP)


    • LED indicators: Power, FX Link/Act, TX 1000, 100TX FDX, TX Link/Act

    • Supports link fault pass through function.

    • Design of internal or external power supply for selection by end-users

    • Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

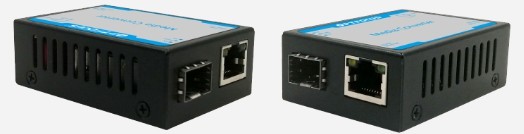

    Product Exhibition


    Internal Power Supply 10/100/1000M Ethernet Fiber Media Converter


    10/100/1000Base-T RJ45, 1000M fiber ports (SFP), without SFP module, external PS, Mini


    SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface


    SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface


    SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface



    Application
