    Single Mode Gigabit Media Converter 2.5W Power Consumption With 1 Years Warranty

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-DSS-20
    Payment Terms : T/T
    Supply Ability : 5000 pieces per one week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Single Mode Gigabit Media Converter 2.5W Power Consumption With 1 Years Warranty


    100 Mbps mini Fiber to ethernet media converter with dual fiber single mode SC 20km


    Product Description

    Technical Specifications


    Technical itemsDescription
    Product Name10/100M Media Converter
    Product ModelOFS-DSS-20
    ConnectorDual Fiber: 1* 100Mbps,SC/ST/FC Optional
    RJ45: 1*10/100Mbps,Auto MDI/MDI-X
    Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    Fiber MediaFiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
    Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
    Forwarding ModeStore-and-Forward
    Forwarding Rate:148800pps/port
    Operating standardEEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
    Power (external)Input:AC 100~250VOutput:DC 5V 1A ,(default).
    or Input:DC:-36V~-72V;Output:DC 5V 1A .(Optional)
    Power consumption2.5W
    LEDPower, FX 100,Link/Act, TX 100,FDX, Link/Act.
    Working EnvironmentWorking temperature: -10~55℃ ;
    Storage temperature: -20~75℃
    Relative Humidity: 5%~95 %( no condensation)
    Packing List1× Media Converter
    1×User Manual/Certificate of quality/Warranty card
    1×power adapter
    MTBF100,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing weight: 1.1 KG

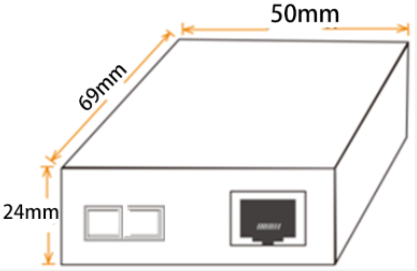

    Product size (L×W×H): 69*50*24mm
    Packing size(L×W×H):107cm× 82 cm×77 cm
    Warranty1-years

    Feature:

    • 1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber

    • Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard

    • Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex

    • UTP port supports MDI / MDI-X auto crossover.

    • Supporting 1552 bytes packet

    • Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

    • Data Transfer Rate:
       - TP: 10/100Mbps - FX: 100Mbps

    • Duplex mode support:
      - Full or half-duplex mode by Auto-Negotiation (TP)

    • LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act

    • Design of external power supply for selection by end-users

    Product Exhibition


    OEM&ODM Support 10/100M Ethernet Fiber Media Converter






    Application
