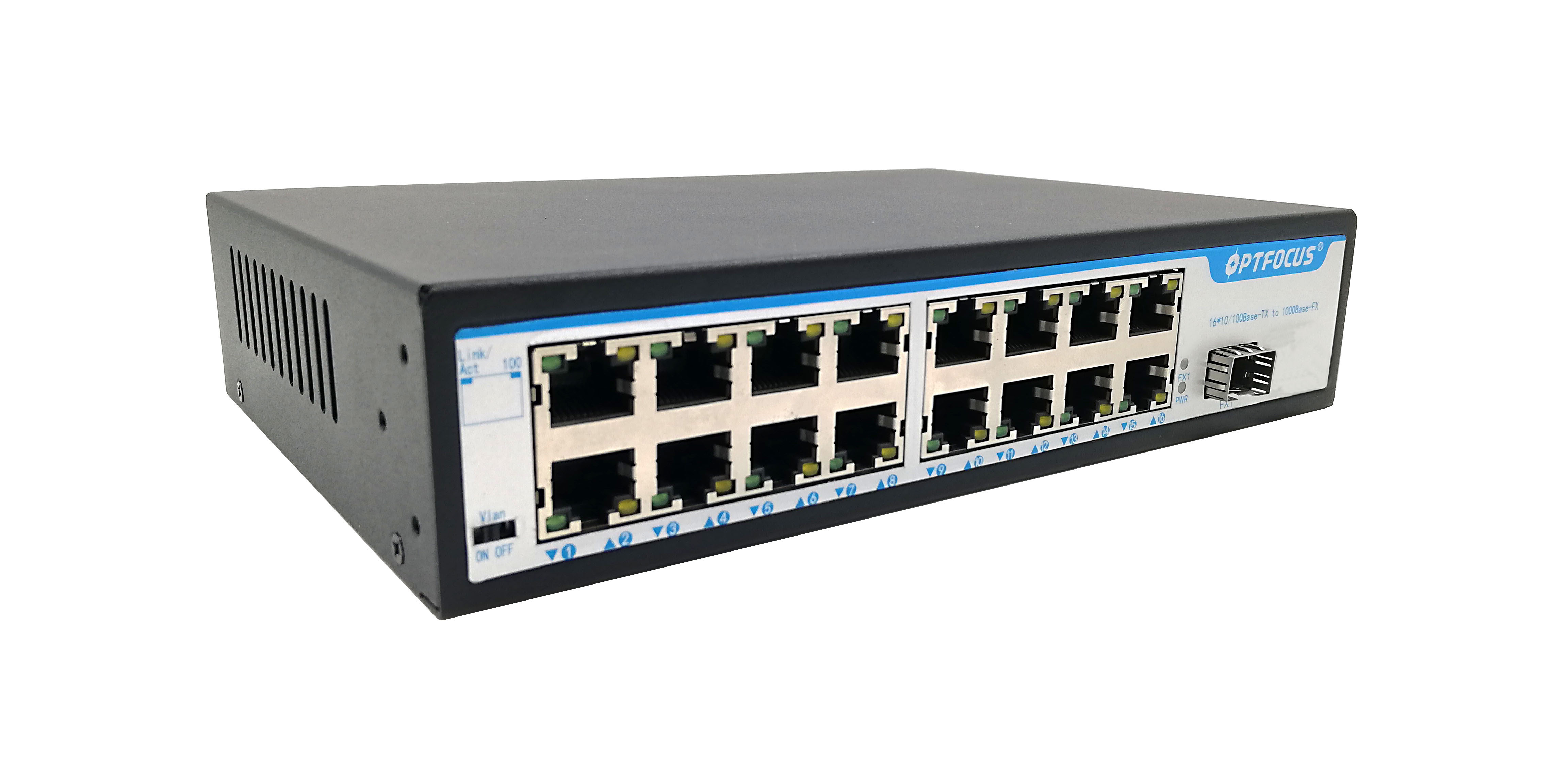

    Multi Ports Fiber Optic Network Switch 1000 Base - X 10 / 100M 5Gbps Bandwidth

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-GSF1DT16-20
    Certification : RoHS, CE
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5000 pcs per week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Multi Ports Fiber Optic Network Switch 1000 Base - X 10 / 100M 5Gbps Bandwidth

    Multi ports 1000Base-X Fiber Optic Switch 10 / 100M 16TX + 1*1000M FX


    OFS-GSF1DT16-20 series is a Layer 2 + Optical Ethernet switch with 1*1000Mbps Optical fiber ports and 16*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.


    OFS-GSF1DT16-20’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. for connecting with devices like computer, switch, hub, server, etc.

    Feature:


    * 16 Port 10/100Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber port.

    * Automatic MAC address learning and aging

    * 10/100Mbps Auto-negotiation , auto-MDI-MDI-X

    * LED indicators for monitoring power/link/activity

    * Supports10/100Mbps-Full/Half-duplex

    * Supports Wall-mount and DIN-Rail installation ,Optional.

    * Supports Broadcast Storm Control

    * Excellent heat elimination without cooling fan.

    * Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

    * Harsh environment or higher requirement

    * Redundant dual DC power inputs

    * -10℃-55℃operating temperature range.


    Technical Specifications:


    Product Name16-port 10/100Mbps + 1-port 100Mbps Fiber
    Product ModelOFS-GSF1DT16-20
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
    Network Media

    10BASE-T: Cat3,4,5 UTP(≤100 meter)

    100BASE-TX: Cat5 or later UTP(≤100 meter)

    Fiber Media

    Multi-mode: 2KM

    Single-mode: 20/40/60/80/100KM

    Fiber port :SC/ST/FC Optional

    Performance SpecificationBandwidth: 5Gbps
    Packet Buffer Memory:1M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table:4K
    Forwarding ModeStore-and-Forward
    LED IndicatorsPower: PWR; Link; ; Link/Act
    Input voltage rangeDC5~15V

    Power Supply

    external PS

    Input: AC100 ~ 250V, Output:DC5V 2A;
    Max power8W
    Environment temperature0 ~ +55℃
    Storage temperature-20 ~ +70℃
    Humidity5% ~ 90%

    Ordering Information:


    ModelProduct Description
    OFS-GSF1DT16-2016* 10/100Base-T RJ45,1* 1000M fiber ports,SC,double fiber1310nm,20km,external PS
    OFS-GSF1DT16-xx16* 10/100Base-T RJ45,1* 1000M fiber ports,SC,double fiber,.max optical fiber distance from 20 to 120 km, “xx” for the amount of distance,external PS
    OFS-GSF1DT16A-2016* 10/100Base-T RJ45,1* 1000M fiber ports,SC,Single Fiber 1310nm,20km,external PS
    OFS-GSF1DT16B-2016* 10/100Base-T RJ45,1* 1000M fiber ports,SC,Single Fiber 1550nm,20km,external PS
    OFS-GSF1DT16A/B-xx16* 10/100Base-T RJ45,1* 1000M fiber ports,Single Fiber ,One set of “A” must be connected with another set of “B” for using.max optical fiber distance from 20 to 120 km, xx for the amount of distance,external PS
