    Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-GSF2DT16
    Certification : RoHS, CE
    Price : negotiable
    Payment Terms : Western Union, T/T, L/C, paypal
    Supply Ability : 5000 pcs per week
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras

    Stable power supply Power Over Ethernet POE Switch 16 port10 / 100 / 1000M +2 Uplink 10 / 100 / 1000M for ip cameras


    Product Description

    Technical itemsDescription
    Product Name16-port 10/100Mbps + 2-port 1000Mbps SFP Fiber
    Product ModelOFS-GSF2DT16
    Network ProtocolsIEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
    Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or later UTP(≤100 meter)
    Fiber MediaMulti-mode: 2KM
    Single-mode: 20/40/60/80KM
    Performance SpecificationBandwidth:7.2Gbps
    Packet Buffer Memory:2M
    Packet Forwarding Rate:148800pps/port
    MAC Address Table:1K /port
    PoE SpecificationPoE Standard: IEEE802.3af/ IEEE802.3at
    PoE ports:16 port support PoE
    Power Output:
    Max. 15.4 watts (IEEE 802.3af)
    Max. 30 watts (IEEE 802.3at)
    PoE port Auto detect AF/AT devices
    Output Voltage: DC48V
    Power Pin Assignment:4/5+;7/8-
    Power Type: End-span( Mid-span optional)
    Forwarding ModeStore-and-Forward
    LED IndicatorsPower: PWR; Link;POE ; Link/Act
    Power SupplyInput Voltage: DC52V (48~55V)
    Working EnvironmentWorking temperature: -10~55℃ ; Storage temperature: -20~75℃
    Relative Humidity: 5%~95 %( no condensation)
    InstallationDIN-Rail or Wall mounts,Optional,Default device is not
    Packing List1× Media Converter
    1×User Manual/Certificate of quality/Warranty card

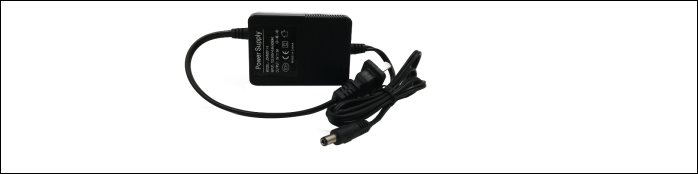

    1×power adapter
    MTBF100,000 hours
    Weight & SizeProduct Weight: 0.5 KG
    Packing weight: 1.1 KG
    Product size (L×W×H): 207mm×140mm× 45mm
    Packing size(L×W×H): 300mm×230mm×95mm
    Warranty1-years

    Feature:

    • 16 Port 10/100Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
    • 16 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
    • Automatic MAC address learning and aging
    • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
    • LED indicators for monitoring power/link/activity
    • Supports10/100Mbps-Full/Half-duplex
    • Supports Wall-mount and DIN-Rail installation ,Optional.
    • Supports Broadcast Storm Control
    • Supports Relay output for power failure
    • Excellent heat elimination without cooling fan.
    • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
    • Harsh environment or higher requirement
    • -10℃-55℃operating temperature range.

    Product Exhibition

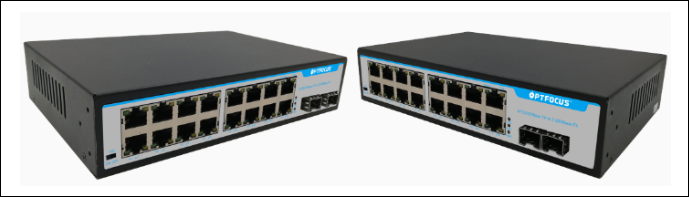

    16ports 100M PSE + 2ports 1000M SFP Fiber Optical Ethernet switch
