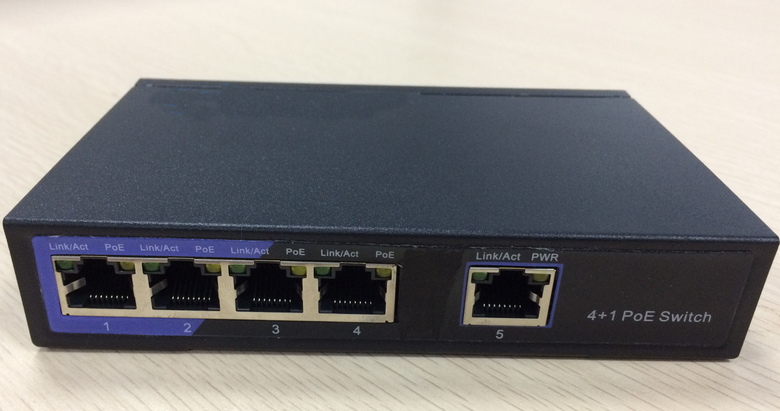

5 Ports Gigabit PoE Network Switch 1 Giga Uplink RJ45 IEEE802.3af / At

    Buy cheap 5 Ports Gigabit PoE Network Switch 1 Giga Uplink RJ45 IEEE802.3af / At from wholesalers

    Buy cheap 5 Ports Gigabit PoE Network Switch 1 Giga Uplink RJ45 IEEE802.3af / At from wholesalers
    • Buy cheap 5 Ports Gigabit PoE Network Switch 1 Giga Uplink RJ45 IEEE802.3af / At from wholesalers

    5 Ports Gigabit PoE Network Switch 1 Giga Uplink RJ45 IEEE802.3af / At

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-PE-GT5
    Certification : CE; RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, paypal
    Supply Ability : 5000 pcs per week
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    5 Ports Gigabit PoE Network Switch 1 Giga Uplink RJ45 IEEE802.3af / At

    5 ports gigabit POE network switch 4 10 / 100 / 1000M RJ45 ports and 1 giga uplink RJ45 IEEE802.3af / at


    OFS-PE-GT5



    Overview


    OPTFOCUS 4-ports 10/100/1000M Desktop PoE Switch provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 100Mbps Fast Ethernet network capabilities. For cost saving and flexible using of PoE power provision, OFS-PE-GT5 series provides PoE power injector function which is able to drive 4 IEEE 802.3af/at compliant powered devices. Besides, the switch also provides a simple, cost-effective, and highly reliable network connection for data as well as power.


    Easy Cabling Installation


    With data and power over Ethernet from one unit, the OFS-PE-GT5 series shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network.


    Ordering Information:


    5 ports PoE Switch,10/100/1000Mbps,30W


    Applications



    Specifications


    Technology
    Network Standards

    ·IEEE802.3i 10BASE-T

    ·IEEE802.3u 100BASE-TX

    ·IEEE802.3x Flow Control

    ·IEEE 802.3 ab/z 1000 BASE-TX

    ·IEEE 802.3 af/at Power over Ethernet

    ·IEEE 802.3 10Base-T

    ·IEEE 802.3u 100Base-TX

    ·IEEE 802.3ab 1000Base-T

    PoE power

    ·15.4W per port(IEEE802.3af);30W per port(IEEE802.3at)

    ·Wiring:Data & power provided over pairs 1/2and 3/6 or 4/5(+)and 7/8(-)

    ·Cable:UPT cat.5 or higher

    Processing types·Store-and-forward Half-duplex back pressure and IEEE802.3x full- duplex flow control ​
    Backplane Bandwidth·10GBPS
    Buffer memory·2.7Mb embedded memory per unit
    MAC Address·4k
    Network latency·Less than 20us for 64-byte frames in Store-and- forward mode
    Power Input·AC90-260V input
    PoE power consumption·15.4W /port
    Power budget·72W
    Casing·Metal case
    Dimension·119x86x29mm(LxWxH)
    Weight·0.8KG
    LED Indicators

    ·System:Power,PoE Maximum power

    ·Per port:Link,Activity,Speed PoE active,PoE error

    Installation·Desktop
    Environment specifications
    Operating Temperature·-10~45℃
    Storage Temperature·-10~70℃
    Operating Humidity·90% max relative humidity, on-condensing
    Storage Humidity·90% max relative humidity, on-condensing
    Safety·CE/ROHs/FCC
    Warranty·1 year
