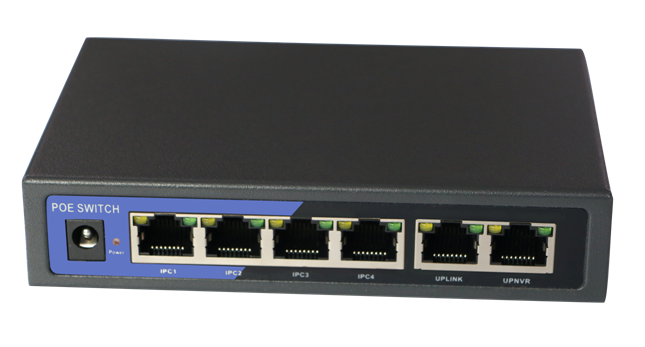

6 Ports 2 and 4 * 10 / 100M RJ45 PoE Ethernet Switch support Auto
MDI / MDIX
OFS-PE-DT6
The Switch supports data and power transmission through CAT.5
cables at the same time. And 4+2 port support fast connecting at
10/100Mbps. It also supports long transmission distance at 250
meters both for power and data, therefore, it saves cost for the
project that requiring long distance transmission through extender,
fiber and coaxial cable etc. It reduces line losses effectively
though 8-core cable supplying power same time. Max power for each
port is 30W, which is for IP Camera and 11AC AP etc.
Cost effective The Switch provide a simple network for wireless AP,
business and home that are based on the installation of IP Camera.
These devices away from electrical outlets are very suitable for
hanging on the wall or ceiling. PoE eliminates the hassle for these
devices, specially the electrical outlets. Connect the AC power
connection to make those difficult device more flexible, and the
installation cost minimization.
Feature
◆Supply power to wireless AP and IP Camera through CAT. 5e/6 cable.
◆1-2 Port: 10/100M auto sensing port. 3-6 Port: 10Mport(Default).
◆Support VLAN. 1-2 port could interconnect with 3-6 port ( 3-6 port
are isolated).
◆Total PoE Power: 65W (Port 3 - 6 ) Each port power: 30W max.
◆Support long transmission distance at 250 meters.
◆Anti-thunder function for uplink port (Port 1-2 anti-thunder
function reaches level 2).
◆Flow control: Full duplex based on IEEE802.3x standard, Half
duplex based on Back pressure standard.
◆Support port auto-flip (Auto MDI/ MDIX).
Target Industries
◆HD monitor transmission and power supply.
◆Wireless AP layout transmission and power supply.
◆Network telephone transmission , intelligent house and home
system.
◆Intelligent transportation supervisory system(ITS).
◆ High-speed Way supervisory/Tele-Communication System.
◆ Security protection system, TV medical treatment.
◆ Long-distance Muti-media Schooling, Campus monitoring.
◆ Long-distance broadcast television transmission system.
◆ High-building Security Protection, Military Tele-Com projects.
Technical parameter list
| Product Name | 10/100M 6-Port Long Transmission Distance PoE Switch |
| Connector Type | 6x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto
sensing) |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or later
UTP(≤100 meters); |
| Bandwidth | 1.2G |
| Address Database Size | 1K |
| MTBF | 100,000 hours |
| Forwarding Mode | Store-And-Forward |
| Buffer Memory | 448K bits |
| Network Protocols | IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control
IEEE 802.3af DTE Power via MDI IEEE 802.3af/at |
| LED Display | Power Indicator: Green. Status: Working: ON. Not working: OFF PoE
Indicator: Green. Status: Working: ON. Overload: Blink. Not
Working: OFF. LINK/ACT Indicator: Yellow. Status: LINK: ON. ACT:
Blink. Uplink Port SPD Indicator: Green. Status: 100M: ON. 10M:
OFF. |
| Power Supply | Total Power: 65 W Max PoE Power for each port:30W (Port3-6) 52VDC,
1.25A Power Output PoE Power Supply:12+,36- & 45+,78- |
| PoE Ports | 4*PoE Ports |
| PoE Port Power | 30W max |
| PoE Standard |
|
| Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~
75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10%
~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft);
Storage Altitude: 3,000 m (10,000 ft) |
| Packing List | 10/100M 6-Port Long Transmission Distance PoE Switch DC 52V Power Adapter Fast User Guide Warranty Card |
| Certification | CE Mark ,commercial CE/LVD EN60950 |
| Radiation | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022
(CISPR 22), Class B |
| Transmission Distance | 250 Meters @10M, 100 Meters @ 100M |
| Power Supply Type | PoE Power Supply: 12+,36- & 45+,78- |
| Warranty | 1 year |
