Fast 8 ports fiber optic ethernet switch 100FX and 7 10 / 100M rj45
with management function
8 ports Ethernet fiber switch 100FX and 7 10 / 100M rj45 with
management function iron case SC connector or SFP

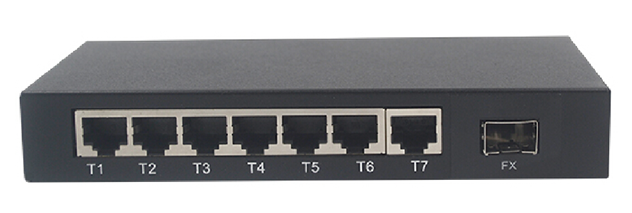

OFS-MSF1T7

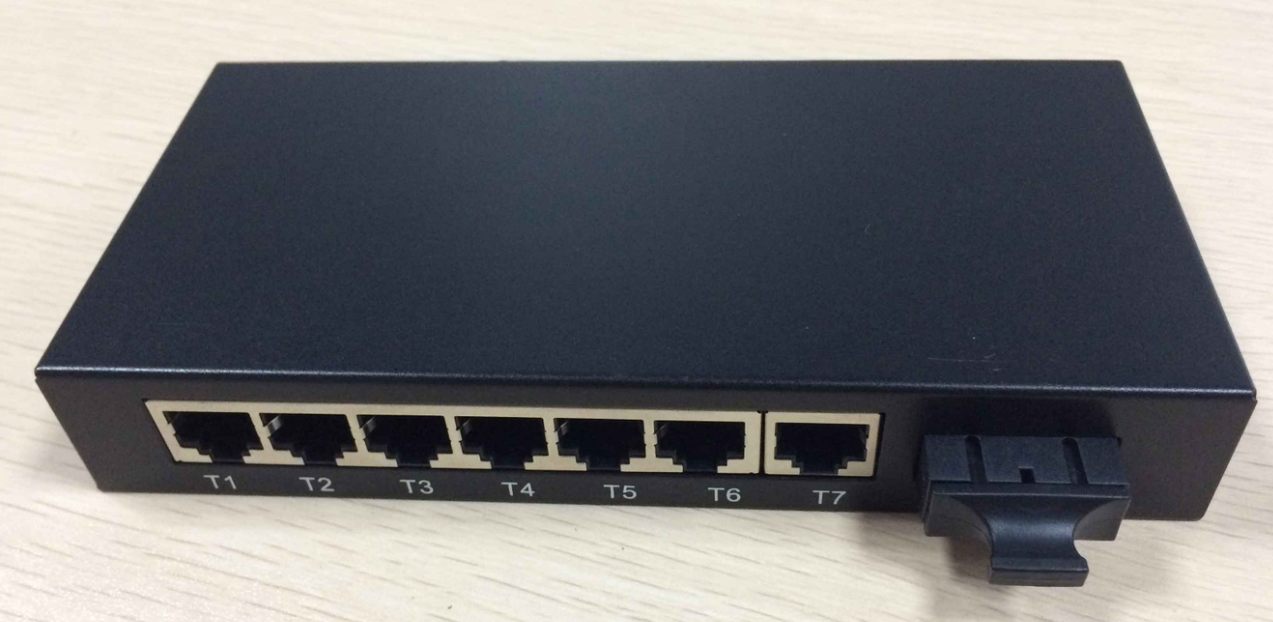

OFS-MSF1T7-2
OFS-MSF1T7 is a managed Layer 2 + Optical Ethernet switch with
1*100Mbps Optical ports and 7*10/100Mbps RJ45 ports. It is designed
to meet the various application needs, and provide an Ethernet
network communication solution with a high performance-price ratio.
OFS-MSF1T7’s high availability and reliability, as well as the rich
security features, makes it ideal for secure data transmission. It
also features powerful Web-based.
"OP Ring Protection"(OPRP) , designed specifically for
applications, to provide a fast Ethernet ring protection and
recovery within 15ms. From the management console, uses can choose
any port (normal Ethernet port or trunk port) to form an Ethernet
ring for faster recovery and wider bandwidth.
Key Features
* 7x10/100BaseTX Ports + 1x100Base Optical Ports
* OP Ring Protection (OPRP), Spanning Tree Protocol (STP) and Rapid
Spanning Tree Protocol (RSTP) for Ethernet ring protection and
quick recovery
* 8K address table for auto-learned unicast addresses
* 4K VLAN, supports 802.1Q, port based, protocol based VLAN, as
well as Generic Attribute Registration Protocol (GARP) and GARP
VLAN Registration Protocol (GVRP) for flexible network planning and
management
* Flexible load distribution control and fail-over function
* Manual, static and dynamic port Static and dynamic port
aggregation for bandwidth management
* Port rate limit, broadcast storm control, port mirrring, rich
Quality of Service (QoS) features for data traffic control and
management
* Black hole MAC address filtering, static and dynamic MAC address
management for network security
* Access Control Lists(ACL)
* Secure Shell (SSH) v2.0
* IGMP snooping
* SNTP, SMTP
* SNMP V1, V2c, V3
* Supports RMON statistics, history, alarm and event
* Web-based network management interface
* Supports port and VLAN management
* On-line firmware upgrade
* Two privilege level accounts
* Syslog
* Dual power input for high reliability
Performance
* IEEE Protocol:
o 802.3 10Base-T Ethernet
o 802.3u 100Base-TX and 100Base-FX fast Ethernet
o 802.3x Flow Control and Back Pressure
o 802.1p Class of Service
o 802.1Q VLAN Tag
o 802.3ad LACP
o 802.1D-2004 STP
o 802.1w Rapid STP
o 802.1s Multiple STP
o 802.1x
* Non-blocking store-and-forward shared-memory switch architecture
* MAC address:8K
* Network management: Web-based, CLI, Telnet, windows utility and
SNMP management.
* OP Ring Protection: recovery time within 15ms
* Firmware upgrade: Web, online
Port Configuration
* RJ45 Port:Auto-negotiation, 10/100Base-T, Full/Half Duplex,
Auto-MDI/MDIX, on copper cable of cat5# with operation distance of
less than 100 meters.
* 100Base-FX Optical Port: SC/ST/FC/LC port.
* Single-mode:20, 40, 60, 80,100, 120Km,optional, depend on your
SFP module
* Multi-mode: 2, 5Km ,optional, depend on your SFP module
* Wavelength: 850nm, 1310 nm, 1550nm
* DOWNLOAD PROGRAM Port: Based serial network management RJ45
* Indicator: TP1-8 link/ACT, TP1-8 100,Power, FX.
English management page
