    IP68 4 trays fiber enclosure wall mount or poled mounted 16 or 24 ports

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-FTH-616F-1
    Certification : RoHS
    Price : negotiable
    Payment Terms : Western Union, T/T, L/C, paypal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

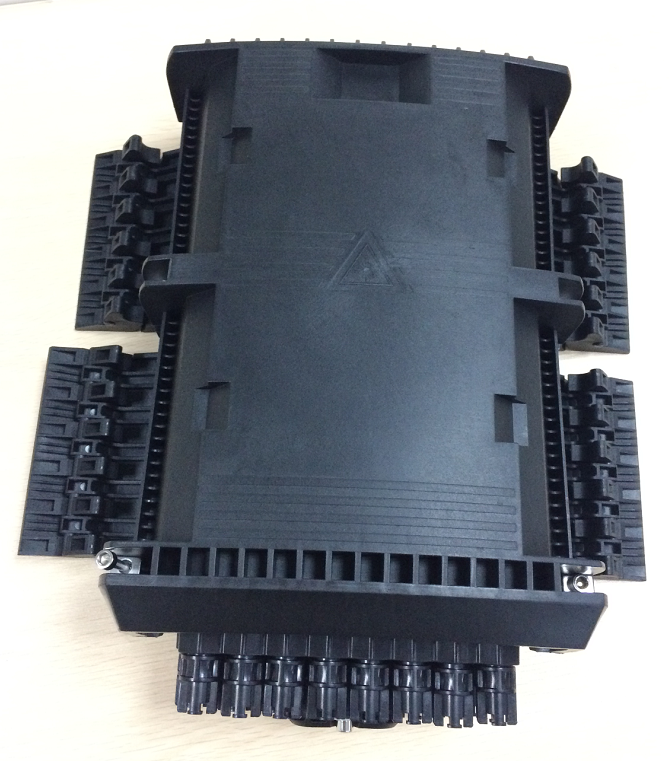

    IP68 4 trays fiber enclosure wall mount or poled mounted 16 or 24 ports

    IP68 4 trays fiber enclosure wall mount or poled mounted 16 or 24 ports


    OFS-FTH-616F-1


    1. Description:

    The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


    2. Features:

    * Total enclosed structure.

    * Material: PC, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.

    * Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

    * Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

    * Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

    * Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses


    3. Specification:

    * Environmental requirement

    Working temperature:-40℃~+85℃

    Relative humidity:≤85%(+30℃)

    Atmospheric pressure:70KPa~106Kpa

    * Main technical datasheet

    Insertion loss:≤0.2dB

    UPC return loss:≥50dB

    APC return loss:≥60dB

    Life of insertion and extraction:>1000 times

    * Thunder-proof technical datasheet

    The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover;U≥3000V


    4. Configuration table:


    ModelDescriptionSize(Pic 1)Max CapacityInstallation Size(Pic 2)Cable entry
    A*B*C(mm)SCD*E*F (mm)
    OFS-24CSplitter Box388*242*12824135*135*190Express port
    OFS-FTH-616F-1Splitter Box388*242*12824135*135*190Express port

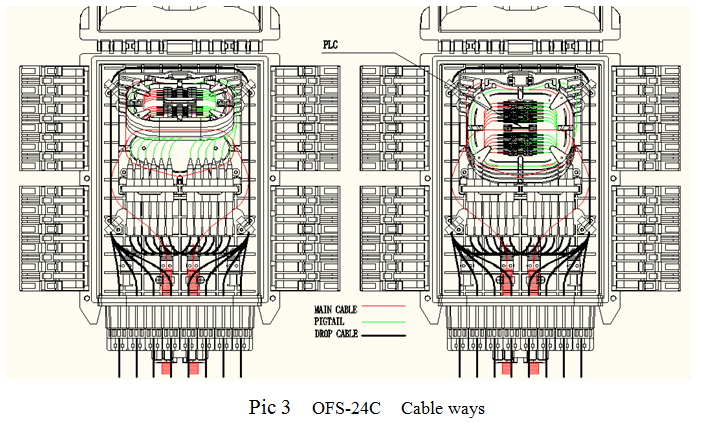

    5. Product cable ways:

    6. Installation:

    1. Wall-mounted installation

    According to the size of table 1 of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw. (Pic 5)

    2. Pole-mounted installation

    Fix 1 set of the easy pole ring to the telecom pole. (Pic 6)
