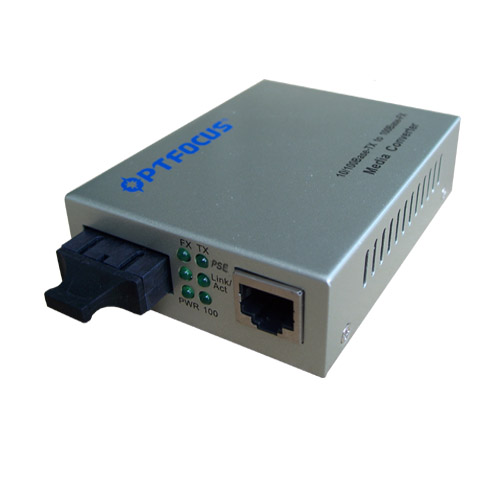

    DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45

    Ask Lasest Price
    Brand Name : OPTFOCUS
    Model Number : OFS-PE-DX-XX
    Certification : CE, RoHS, FCC
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 3000 pcs per week
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    DC48V Power Over Ethernet POE media converter 100M 1 port FX to 1 port 10 / 100M rj45

    PoE media converter 100M 1 port FX to 1 port 10 / 100M rj45 with iron housing 15.4W PoE power

    OFS-PE-DM-xx


    More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well. The best data link and power sourcing solution for long reach network equipment.


    This OFS-PE-DX-XX series Media Converter are 10/100Base T/TX to 100Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones, etc.

    Feature:

    ◆With PoE supported to save power infrastructure cost

    ◆IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible

    ◆Connect to PoE switches mid-span hubs or other 802.3af Power Source Equipment(PSE).

    ◆Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.

    ◆Stand alone unit with mini design.

    Specification:

    StandardIEEE802.3i 10BASE-T
    IEEE802.3u 100BASE-TX
    IEEE802.3x Flow Control
    IEEE802.3af Power over Ethernet
    PoE power15.4W per port (IEEE802.3af)
    Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
    Cable: UTP cat.5 or higher
    Fiber typeMulti mode(MM): 62.5/125m.50/125m
    Single mode(SM): 9/125m
    DistanceMulti mode & Dual Fiber 2KM
    Single mode & Single Fiber:20/40/60/80/120KM
    Data rate10/100Mpbs
    ConnectorRJ45,SC,FC
    Wavelength1310nm 1490nm 1550nm
    Diagnostic LEDPower Link/Activity
    PowerDC48V 1.25A
    Power Consumption<3w
    Temperature0~50℃(Operating); 20~70℃(Storage)
    Humidity10~90% non-codensing
    Dimension90x70x26mm

    Ordering information:

    OFS-PE-DM-210/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km.supported 15.4W PSE.
    OFS-PE-DS-XX10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20~120km.supported 15.4W PSE.
    OFS-PE-WS01/02-XX10/100M Ethernet Single Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20~120km.supported 15.4W PSE.
