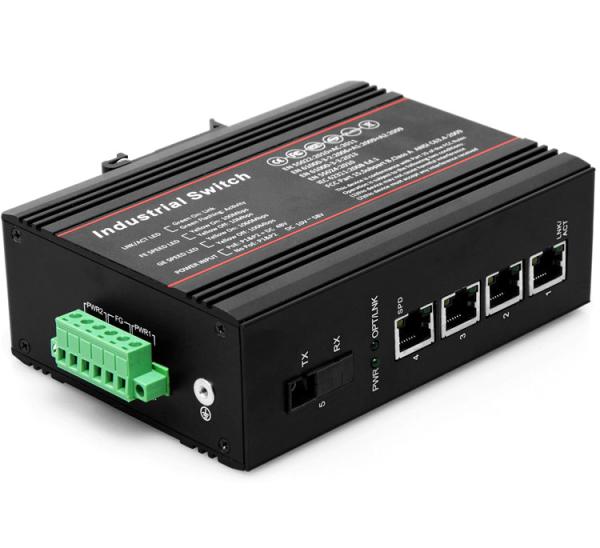

WDM Industrial Switch support POE 1*100M fiber port 4*10 / 100M
rj45 ports
OFS-ISF1T4
Product description
The product is an unmanaged industrial level 100M Ethernet switch,
with one 100M Fiber port, four 10/100MBase-T adaptive Ethernet
interface RJ45. It helps users to realize the Ethernet data
exchange, convergence and long-distance optical transmission
function. The equipment has the advantages of no fan, low power
consumption, easy to use, small size, simple maintenance and so on.
Product design in line with the Ethernet standard, add lightning
protection, anti-static protection measures, -40 DEG C ~ +85 wide
range of working temperature, stable and reliable performance. The
device can be widely used in intelligent transportation,
telecommunications, security, finance and securities, customs,
maritime, electric power, water conservancy and oil fields and
other broadband data transmission.
Key Features
Input voltage:DC10~58V (dual power redundancy backup)
Working temperature: -40 ℃ + 85℃
Housing: IP40 protection grade, DIN rail type, metal aluminum, no
fan design
Inspection report: with the Ministry of public security inspection
report, CCC/FCC/CE/ROHS
Specifications
Standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3at
Quantity of the ports: 5
Fiber Ports: one 100MBaseFX port (optional SC/ST/FC connector,
single/multimode, and single/dual fiber)
RJ45:four 10/100MBase-TX RJ45
Transmission mode: full duplex mode
Application level:L2
Backplane bandwidth:1Gbps
Packet forwarding rate:0.744Mpps
MAC: 1K
Buffer:512K
Delay time:<3μs
Exchange:store - forward
LED:Power(PWR); TX,FX(Link/ACT)
Housing: metal material
Cooling: natural cooling, no fan
Dimensions: 143 x 104 48mm x (wide x deep x high)
Weight:0.85Kg
Installation mode: DIN card rail type
Transmission distance
Twisted pair: 100m(CAT5e, CAT6)
Multi-mode: 2km
Single-mode: 20, 40,60, 80,100Km,optional
Operating temperature: -40 ℃ ~ +85 ℃
Storage temperature: -40 ℃ ~ +85 ℃
Relative humidity: 5~95% (no frost)
MTBF:100,000 hour
Power
Input voltage: DC10~58V(dual power redundancy backup)
Access terminal: Phoenix terminal
Power (full load) <3W
Warranty period: 5 years
Certification: Ministry of public security inspection
report,CCC,CE,FCC,RoHS
Product front panel
Ordering Information
| Model | Product description |
| OFS-ISF1T4-20 | 100M fiber port(SC dual fiber), 4 10/100Base-T(X) RJ45 unmanaged
industrial level switch 20km |
| OFS-IWSF1T4A/B-20 | 100M fiber port(SC single fiber), 4 10/100Base-T(X) RJ45 unmanaged
industrial level switch 20km |
| OFS-IWSF1T4A/B-20F | 100M fiber port(FC single fiber), 4 10/100Base-T(X) RJ45 unmanaged
industrial level switch 20km |
| OFS-ISF1T4 | 100M SFP port, 4 10/100Base-T(X) RJ45 unmanaged industrial level
switch |
| OFS-PE-IGSF1T4-20 | 100M fiber port(SC dual fiber), 4 10/100Base-T(X) RJ45 unmanaged
industrial level switch 20km with PoE function |
| OFS-PE-IWSF1T4A/B-20 | 100M fiber port(SC single fiber), 4 10/100Base-T(X) RJ45 unmanaged
industrial level switch 20km with PoE function |
| OFS-PE-IWSF1T4A/B-20F | 100M fiber port(FC single fiber), 4 10/100Base-T(X) RJ45 unmanaged
industrial level switch 20km with PoE function |
| OFS-PE-ISF1T4 | 100M SFP port, 4 10/100Base-T(X) RJ45 unmanaged industrial level
switch |
