PoE Industrial Ethernet Switch 1 100M fiber port and 1 10 / 100M
RJ45 port
OFS-IDS-20
OFS-IFAS-1
OFS-IWS01/02-20
Product description
The product is an unmanaged industrial level Ethernet switch, with
100M Fiber port,10/100Base-T adaptive Ethernet interface RJ45. It
help users to realize the Ethernet data exchange, convergence and
long-distance optical transmission function. The equipment has the
advantages of no fan, low power consumption, easy to use, small
size, simple maintenance and so on. Product design in line with the
Ethernet standard, add lightning protection, anti-static protection
measures, -40 DEG C ~ +85 wide range of working temperature, stable
and reliable performance. The device can be widely used in
intelligent transportation, telecommunications, security, finance
and securities, customs, maritime, electric power, water
conservancy and oil fields and other broadband data transmission.
Key Features
Input voltage: DC10~58V (dual power redundancy backup)
Working temperature: -40 ℃~ + 85 ℃
Housing: IP40 protection grade, DIN rail type, metal aluminum, no
fan design
Inspection report: through the Ministry of public security
inspection report, CCC/FCC/CE/ROHS
Specifications
Quantity: 2
Fiber Ports: one 100BaseFX ports (SC/ST/FC/LC connector, optional)
RJ45:one 10/100BASE-T RJ45
Transmission mode: full duplex mode
standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE
802.3at
Application level:L2
backplane bandwidth:1Gbps
Packet forwarding rate:0.744Mpps
MAC: 1K
Buffer:512K
delay time:<3μs
Exchange: Store - forward
LED
Power
TX,FX(Link/ACT)
Housing: metal material
Cooling: natural cooling, no fan
Dimensions: 143 x 104 x 48mm (wide x deep x high)
weight: 0.85Kg
Installation mode: DIN card rail type
Operating temperature: -40 ℃ ~ +85 ℃
Storage temperature: -40 ℃~ +85℃
Relative humidity: 5~95% (no frost)
Transmission distance twisted pair: 100m (using CAT5e, CAT6 network
cable))
transmission distance
Twisted pair: 100m (CAT5e, CAT6)
Multi-mode: 2km
Single-mode: 20, 40,60, 80,100,120Km,optional
MTBF:100,000 hours
Power
Input voltage: DC10~58V (dual power redundancy backup)
Access terminal: Phoenix terminal
Power (full load) <3W
Warranty period: 5 years
Certification: Ministry of public security inspection report,CCC ,
CE,FCC, RoHS

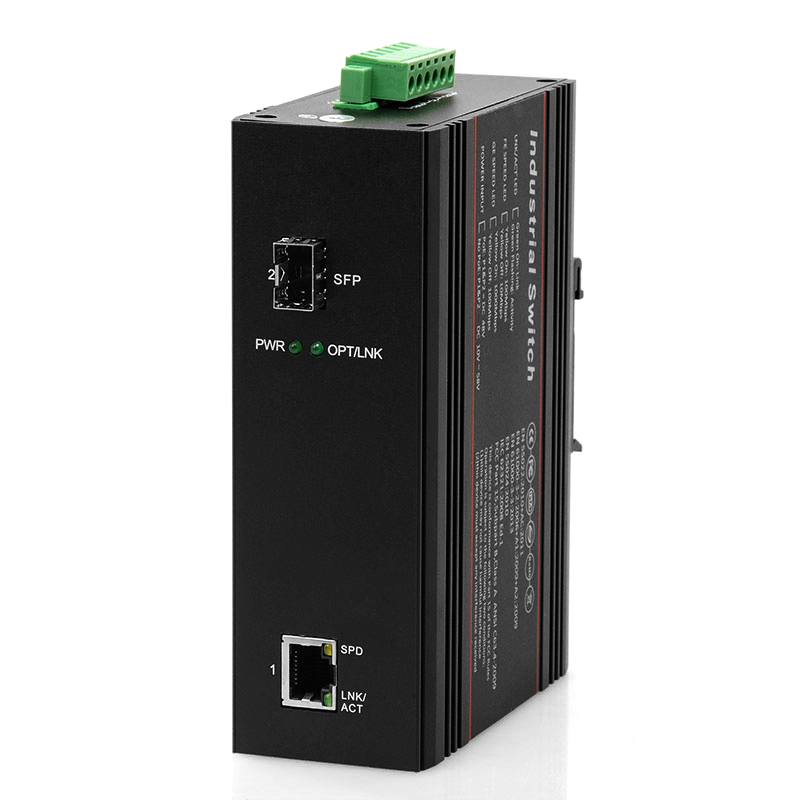

Product front panel
Ordering Information
| Model | Product description |
| OFS-IDS-20 | 100M fiber ports(SC dual fiber),10/100Base-T RJ45 |
| OFS-IWS01/02-20 | 100M fiber ports(SC Single fiber),10/100Base-T RJ45 |
| OFS-IWS01/02-20F | 100M fiber ports(SC Single fiber),10/100Base-T RJ45 |
| OFS-IFAS-1 | 100M fiber ports(SFP),10/100Base-T RJ45 |
| OFS-PE-IDS-20 | 100M fiber ports(SC dual fiber),10/100Base-T RJ45,POE power supply |
| OFS-PE-IWS01/02-20 | 100M fiber ports(SC single fiber),10/100Base-T RJ45,POE power
supply |
| OFS-PE-IWS01/02-20F | 100M fiber ports(SC single fiber),10/100Base-T RJ45,POE power
supply |
| OFS-PE-IFAS-1 | 100M fiber ports(SFP),10/100Base-T RJ45,POE power supply |
