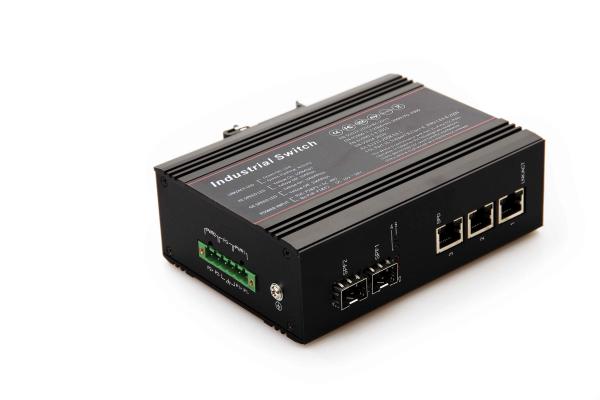

PoE fiber 5 Port Industrial Ethernet Switch 2 gigabit fiber ports 3
10 / 100 / 1000M rj45 ports
OFS-IGSF2T3
Product description
The product is an unmanaged industrial level Gigabit Ethernet
switch, with 2 Gigabit Fiber port, 3 10/100/1000Base-T adaptive
Ethernet interface RJ45. It help users to realize the Ethernet data
exchange, convergence and long-distance optical transmission
function. The equipment has the advantages of no fan, low power
consumption, easy to use, small size, simple maintenance and so on.
Product design in line with the Ethernet standard, add lightning
protection, anti-static protection measures, -40 DEG C ~ +85 wide
range of working temperature, stable and reliable performance. The
device can be widely used in intelligent transportation,
telecommunications, security, finance and securities, customs,
maritime, electric power, water conservancy and oil fields and
other broadband data transmission.
Key Features
Input voltage: DC10~58V (dual power redundancy backup)
Working temperature: -40 ℃+ 85 ℃
Housing: IP40 protection grade, DIN rail type, metal aluminum, no
fan design
Inspection report: through the Ministry of public security
inspection report, CCC/FCC/CE/ROHS
Specifications
Ports quantity: 5
Fiber Ports: Two 1000BaseFX ports (SC/ST/FC/LC connector, optional)
RJ45:Four 10/100/1000BASE-T RJ45
Transmission mode: full duplex mode
standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE
802.3at
Application level:L2
backplane bandwidth:12Gbps
Packet forwarding rate:8.928Mpps
MAC: 8K
Buffer:1M
delay time:<4μs
Exchange: Store - forward
LED
Power
TX,FX(Link/ACT)
Housing: metal material
Cooling: natural cooling, no fan
Dimensions: 143 x 104 48mm x (wide x deep x high)
weight: 0.85Kg
Installation mode: DIN card rail type
Operating temperature: -40 ℃~ +85 ℃
Storage temperature: -40℃ ~ +85℃
Relative humidity: 5~95% (no frost)
Transmission distance twisted pair: 100m (using CAT5e, CAT6 network
cable))
transmission distance
Twisted pair: 100m (CAT5e, CAT6)
Multi-mode: 550m
Single-mode: 20, 40,60, 80,100,120Km,optional
MTBF:100,000 hour
Power
Input voltage: DC10~58V (dual power redundancy backup)
Access terminal: Phoenix terminal
Power (full load) <4W
Warranty period: 5 years
Certification: Ministry of public security inspection report,CCC ,
CE,FCC, RoHS
Product front panel
Ordering Information
| Model | Product description |
| OFS-IGSF2T3 | Unmanaged industrial level Gigabit Ethernet switch, 2 Gigabit fiber
ports (SFP), 3 10/100/1000Base-T RJ45 |
| OFS-PE-IGSF2T3 | Unmanaged industrial level Gigabit Ethernet switch, 2 Gigabit fiber
ports (SFP), 3 10/100/1000Base-T RJ45, POE power supply |
